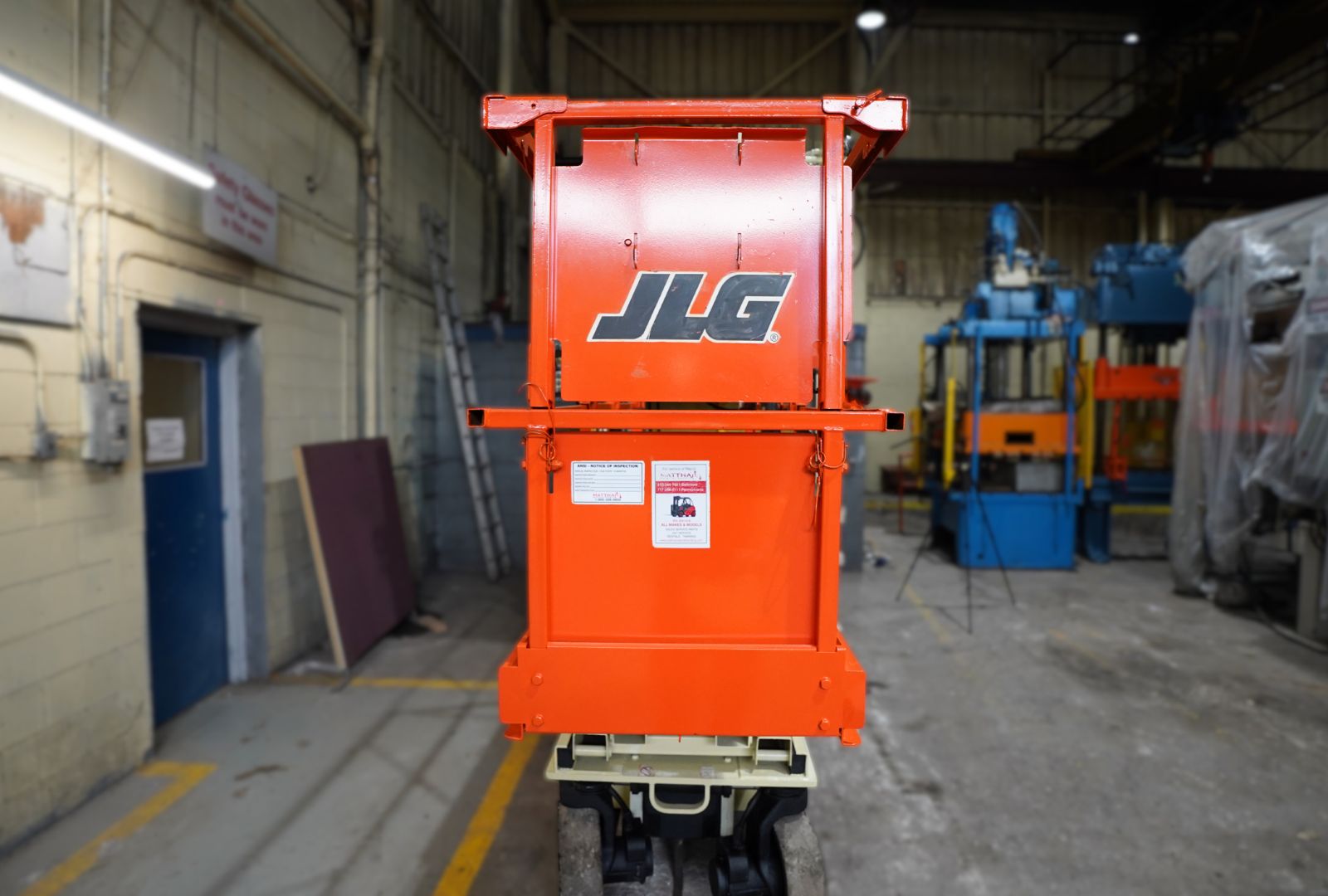

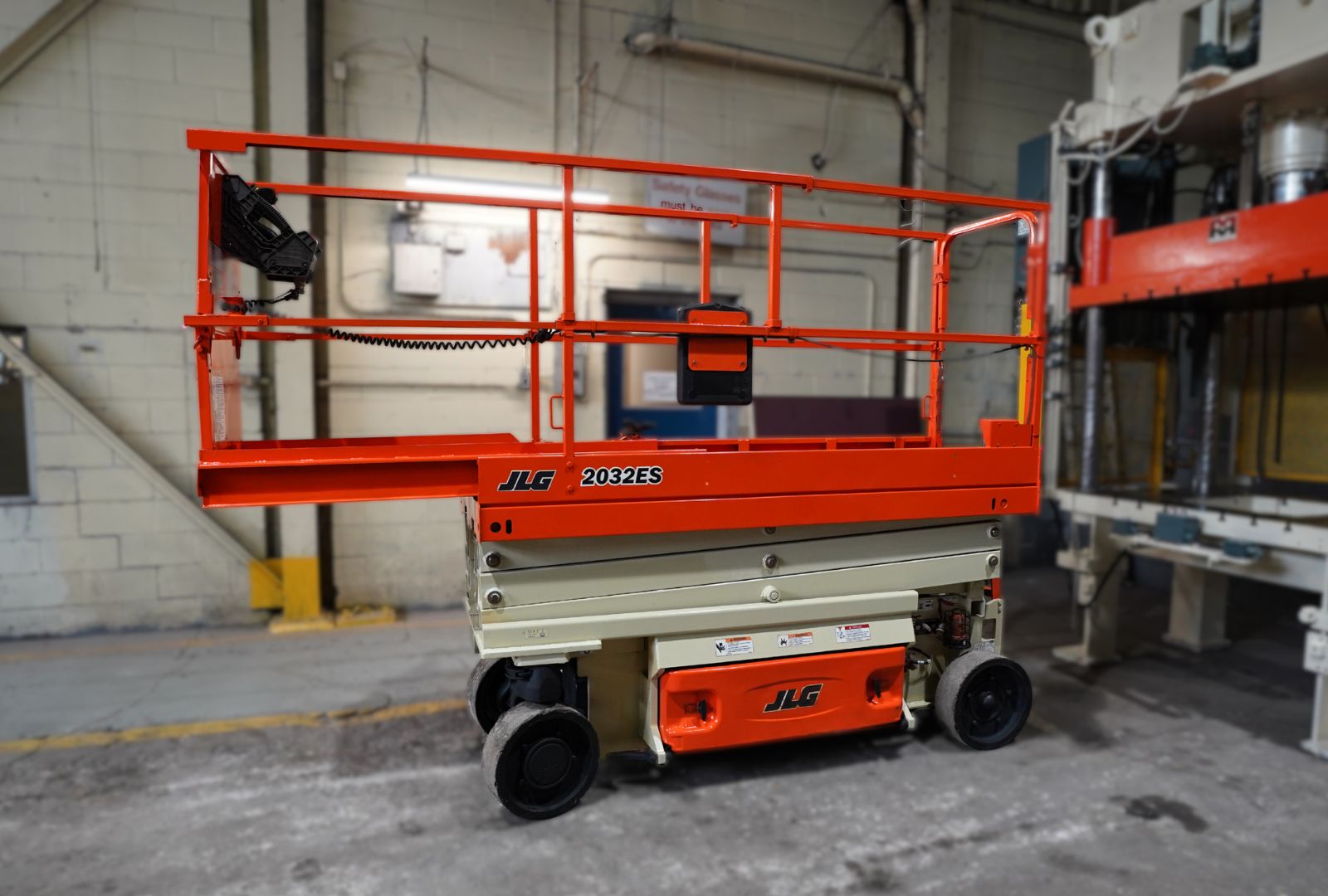

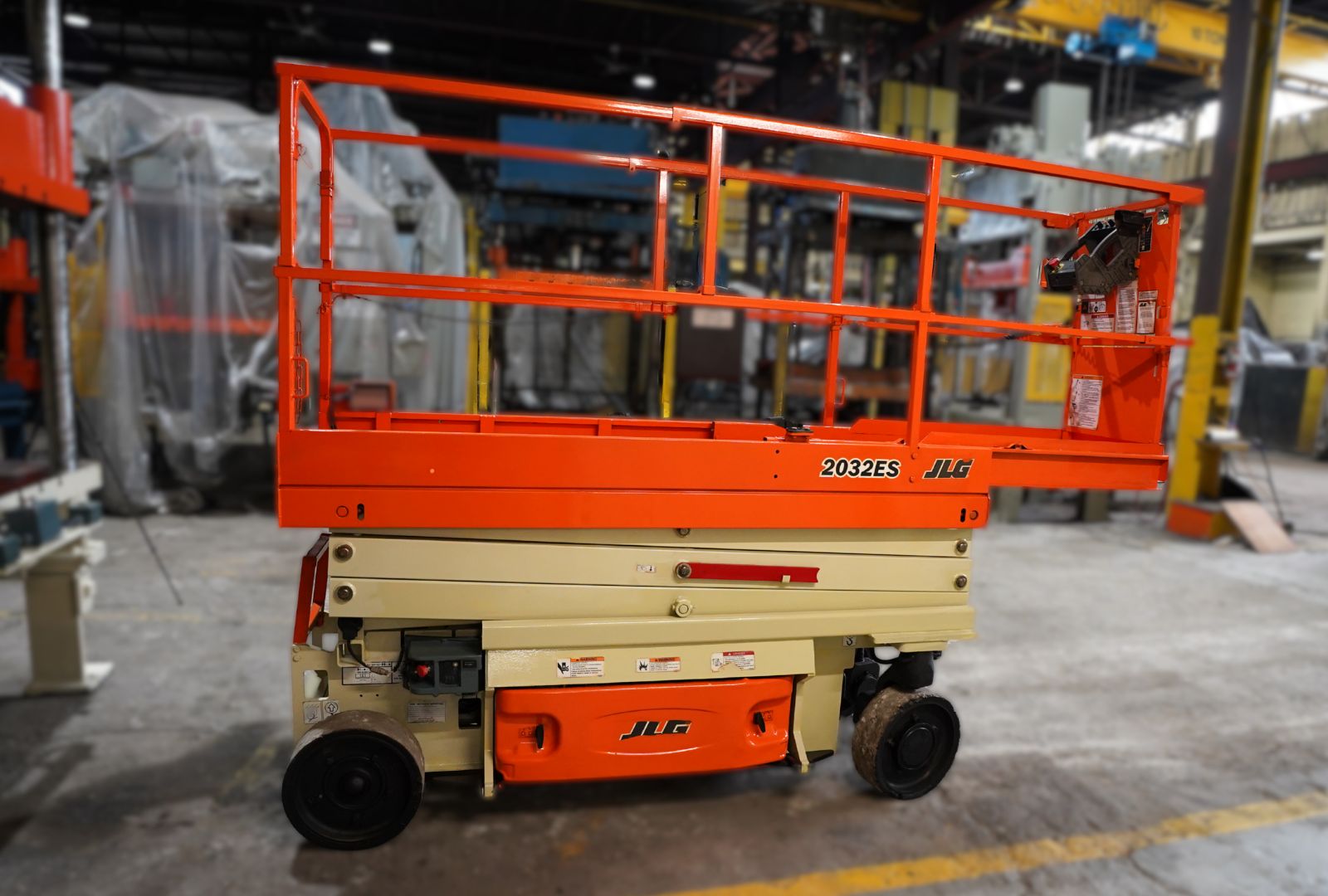

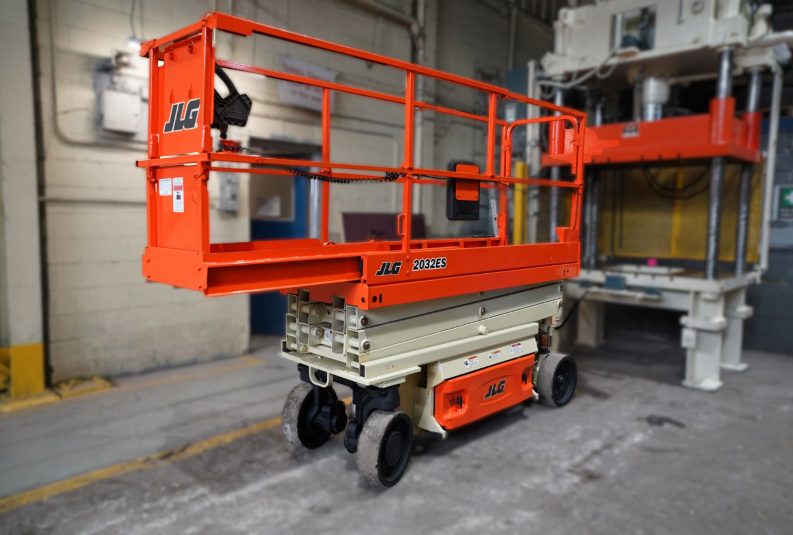

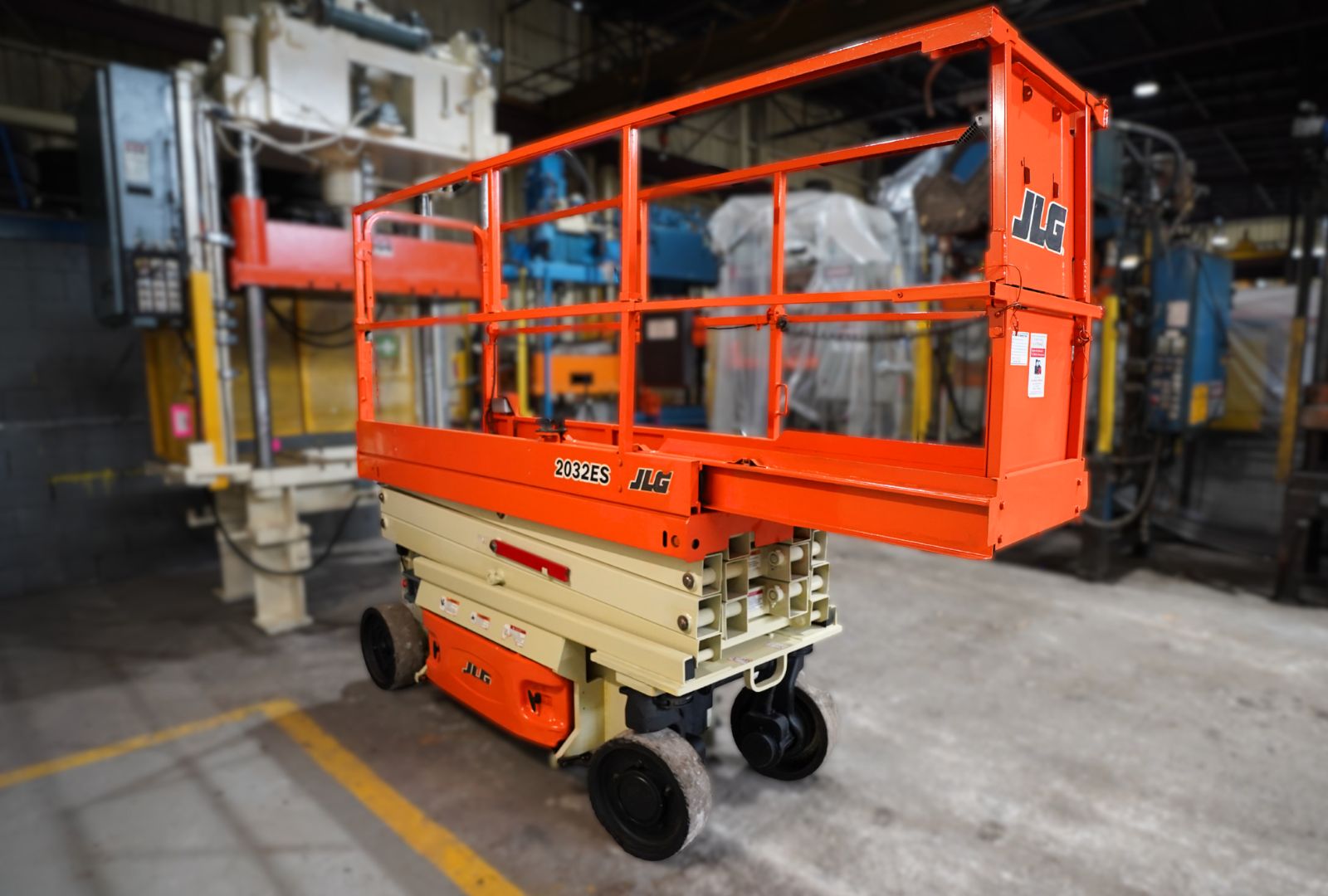

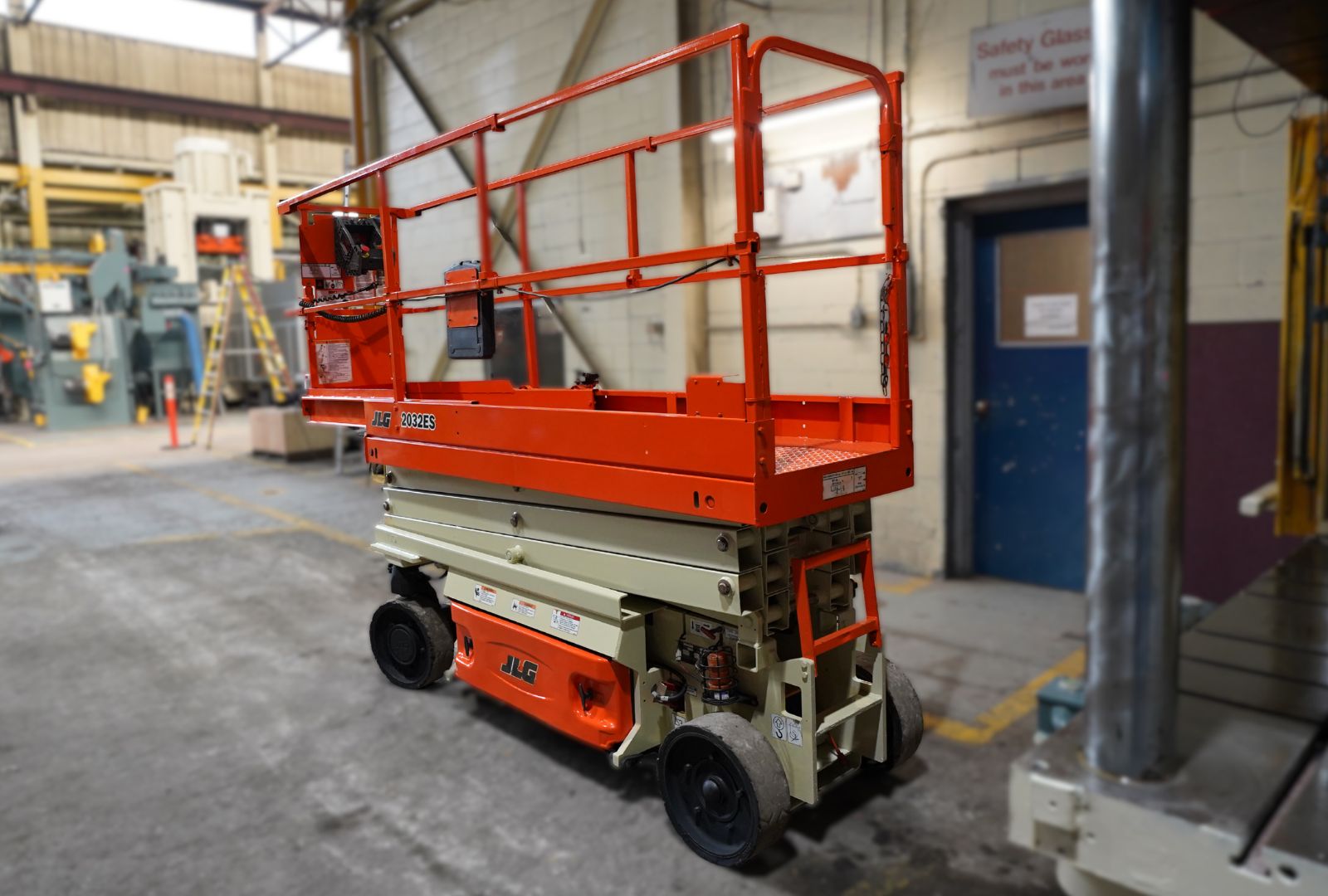

JLG 2032ES Electric Scissor Lift | Skyjack Scissor Lift #5047

ADDITIONAL SPECIFICATIONS
Category Specification
Working Height 8.10 m
Platform Height (Max) 6.10 m
Stowed Height 2.25 m
Stowed Height (Rails Folded) 1.87 m
Platform Railing Height 1.10 m
Platform Size (W x L) 0.76 m x 2.30 m
Deck Extension 0.90 m
Overall Width 0.81 m
Overall Length 2.30 m
Wheelbase 1.88 m
Ground Clearance 0.09 m
Platform Capacity 360 kg (indoor, 2 persons)
Capacity on Deck Extension 120 kg
Lift/Lower Time 30 / 40 sec
Max Drive Height 6.10 m
Machine Weight 1,970 kg
Max Ground Bearing Pressure 6.33 kg/cm²
Drive Speed (Lowered) 4.4 km/h
Gradeability 25%
Turning Radius (Inside/Outside) Zero / 2.06 m
Drive System 24V Electric, Dual Motor Front Wheel Drive
Battery 4 x 6V 220 Ah Deep Cycle
Charger 20 Amp Automatic (120/240V – 50/60Hz)
Hydraulic System 10.6 L
Tyres 406 x 125 mm (Non-marking solid)
Product Overview

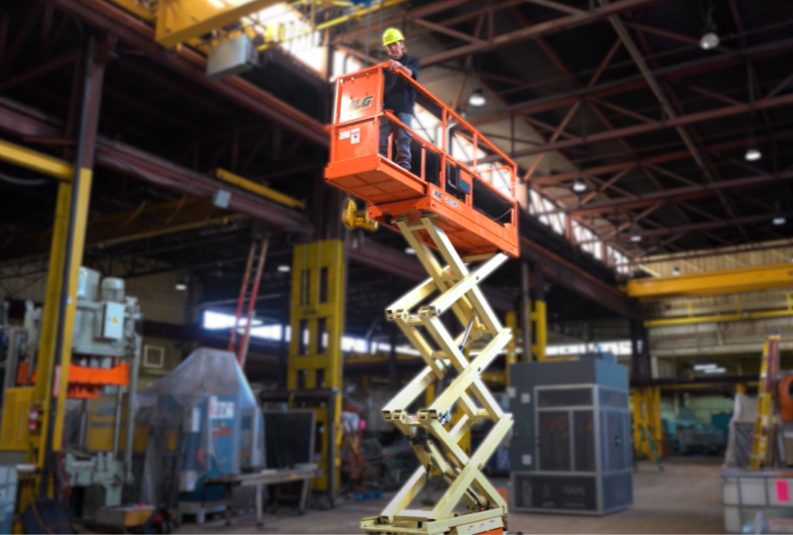

The JLG 2032ES Scissor Lift is a compact, eco-friendly access solution designed for safe and efficient elevated work. With an electric drive for zero emissions and near-silent indoor operation, it’s ideal for warehouses, factories, retail, and construction environments where clean performance and maneuverability are key.

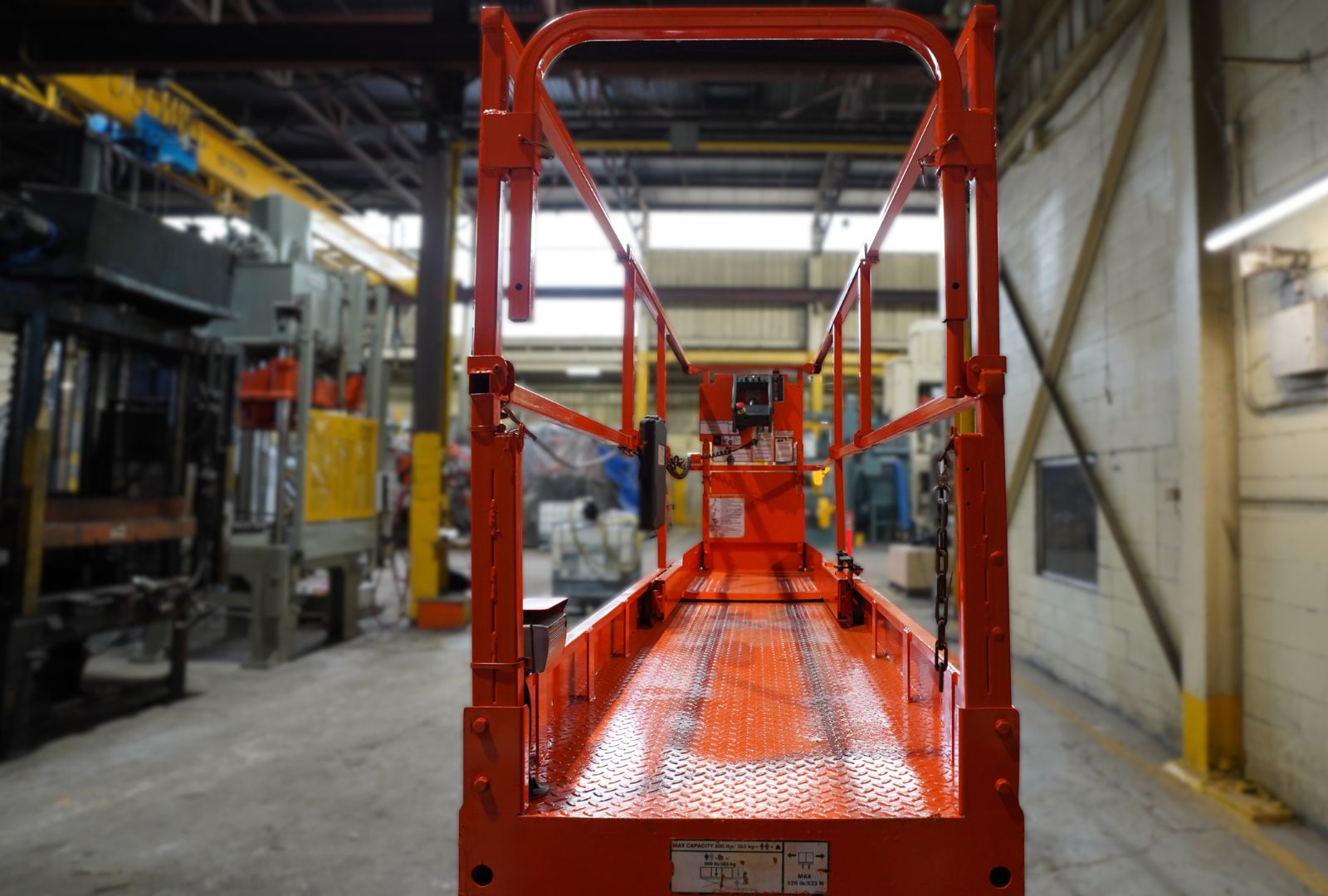

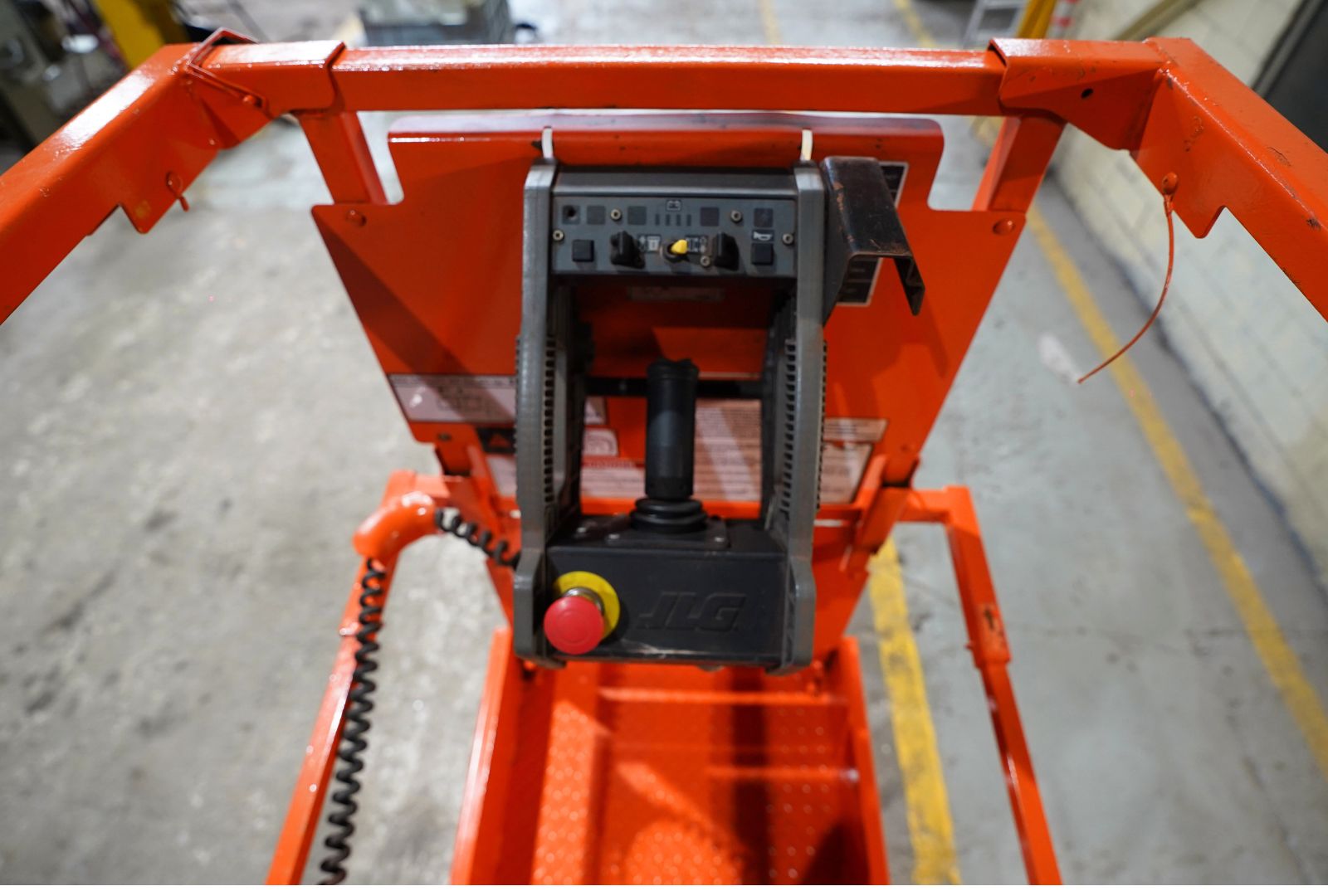

The machine offers a working height of 8.10 m, a spacious 0.76 m x 2.30 m platform with a 0.90 m roll-out deck extension, and a platform capacity of 360 kg, making it suitable for two operators plus tools. Features like fold-down handrails, proportional controls, automatic traction, and an advanced self-diagnostic system ensure high productivity, ease of use, and reduced downtime.

Built with JLG’s smart design, the 2032ES provides excellent gradeability, zero inside turning radius, and long-lasting deep cycle batteries—ensuring operators can work longer with fewer interruptions. Optional accessories such as pipe racks, workstations, and platform lights further enhance versatility.

This used machine is sold in "as is" condition and may not have guarding or safety features required currently by OSHA and other regulatory bodies. The buyer understands and agrees that it is the buyer’s responsibility to modify the machine to meet all relevant local and national safety regulations so the machine operates in a safe manner. The buyer agrees to hold harmless, to defend and indemnify Beta Die Casting Equipment from all law suits, costs, claims, expenses including but not limited to lawyers’ fees arising out of the purchase, ownership transportation and use of this machine or any part of it.
