New MetalPress 10 Ton Coil Tipper / Coil Flipper #5046

Item	US Standard	Metric
Overturn Capacity	11 tons	10 tonnes
Table Size	55 × 55 inch	1 400 × 1 400 mm
Table Height	26.8 inch	680 mm
Center of Gravity	19.7 inch	500 mm
Motor Power	4 hp	3 kW
Machine Size (L × W × H)	73 × 55 × 84.6 inch	1 850 × 1 400 × 2 150 mm
Machine Weight	2.6 tons	2.5 tonnes

Item

US Standard

Metric

Overturn Capacity

11 tons

10 tonnes

Table Size

55 × 55 inch

1 400 × 1 400 mm

Table Height

26.8 inch

680 mm

Center of Gravity

19.7 inch

500 mm

Motor Power

4 hp

3 kW

Machine Size (L × W × H)

73 × 55 × 84.6 inch

1 850 × 1 400 × 2 150 mm

Machine Weight

2.6 tons

2.5 tonnes

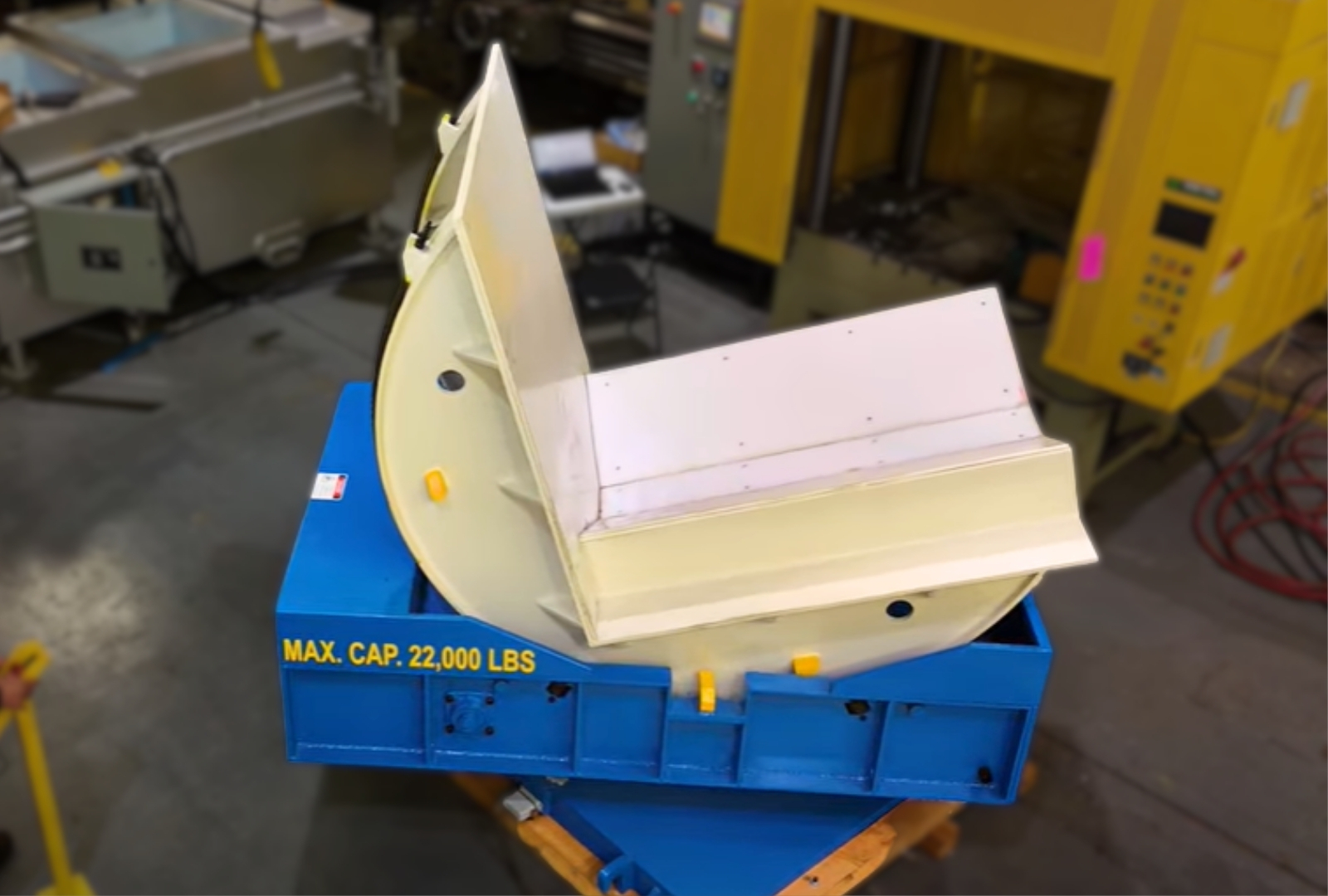

MCT-10 Coil Tipper — Compact 10-Tonne Coil-Handling Workhorse

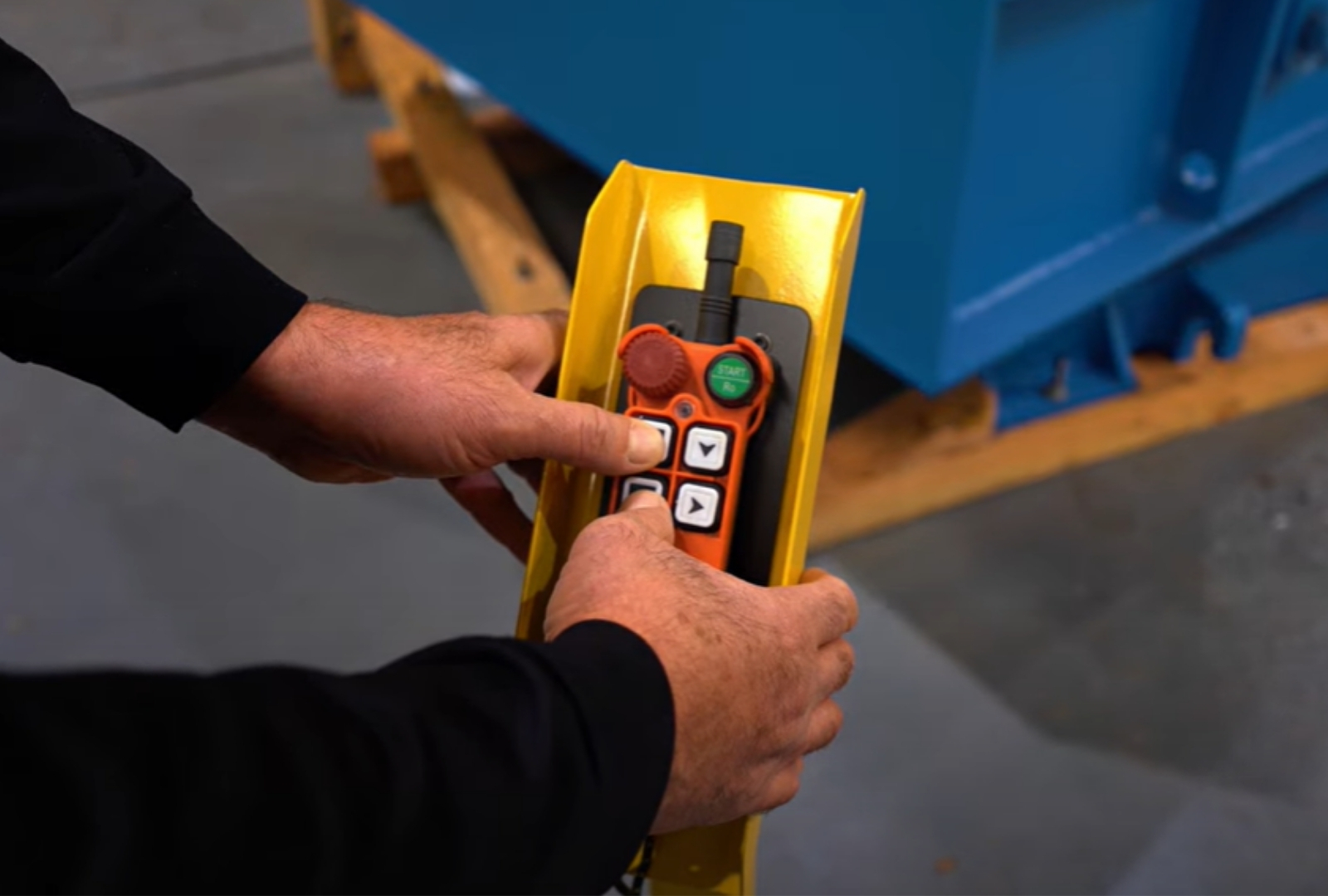

The MCT-10 coil tipper rotates steel, aluminum, or copper coils weighing up to 10 tonnes / 11 tons a full 90° in seconds, letting you move product from “eye-to-sky” to “eye-to-side” without tying up an overhead crane. A 4 hp (3 kW) all-electric drive powers a robust 1 400 × 1 400 mm (55 × 55 in) table while precision limit switches and a remote-pendant keep operators clear of the load.

Key advantages

Safe, single-operator flipping – eliminates slings, pry bars, and suspended-load risks.
Low deck height — 680 mm (26.8 in) – easy pallet-jack access and line-side integration.
Compact footprint — 1 850 × 1 400 × 2 150 mm fits tight coil-prep cells and shipping bays.
Heavy-duty frame & precision bearings – withstands daily abuse with minimal maintenance.
Plug-and-play electrics – no hydraulics, no leaks, just reliable, quiet operation.

Whether you feed slitters, cut-to-length lines, or stamping presses, the MCT-10 coil tipper streamlines staging, protects tooling, and keeps your floor moving. metalpressmachinery.commetalpressmachinery.com
