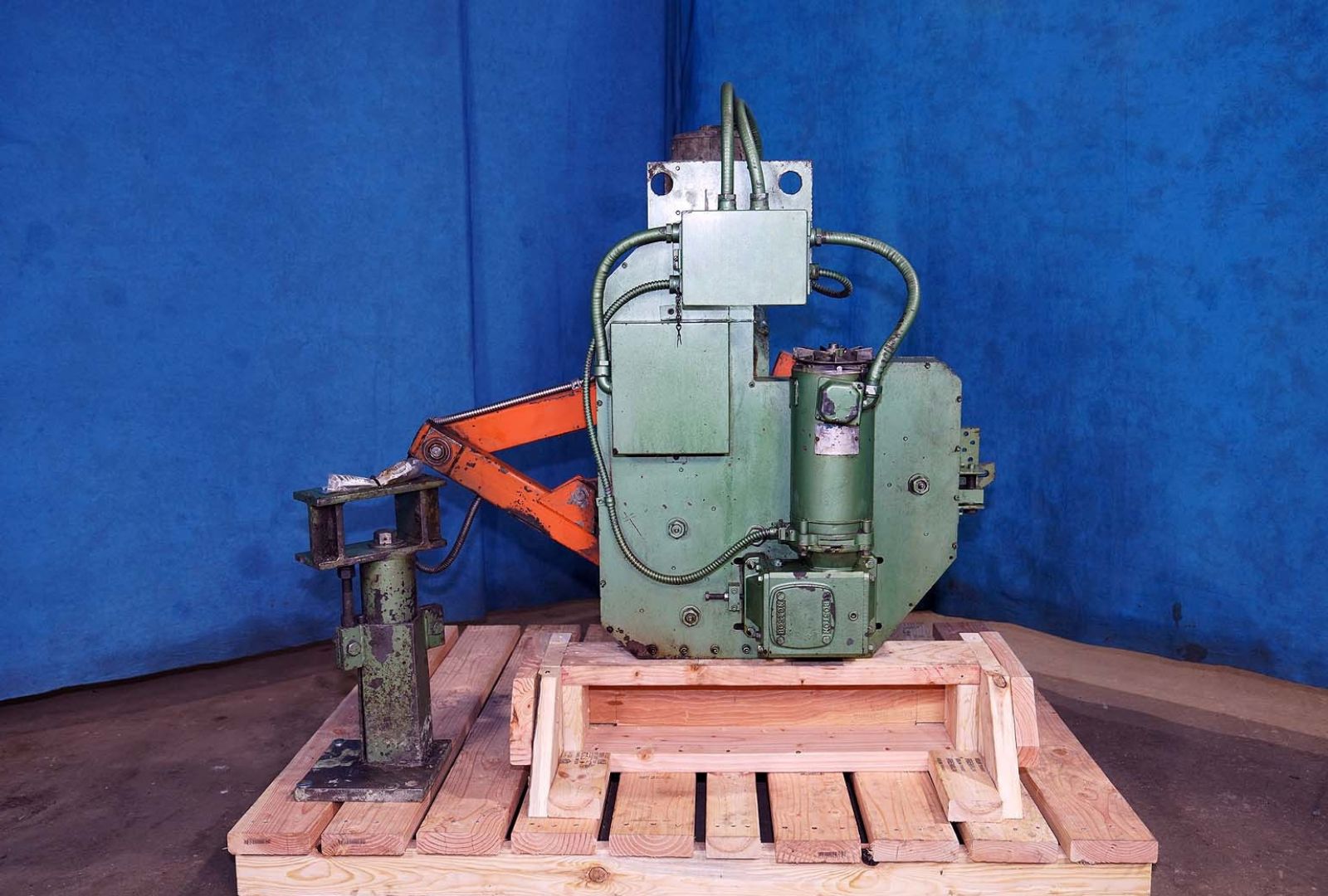

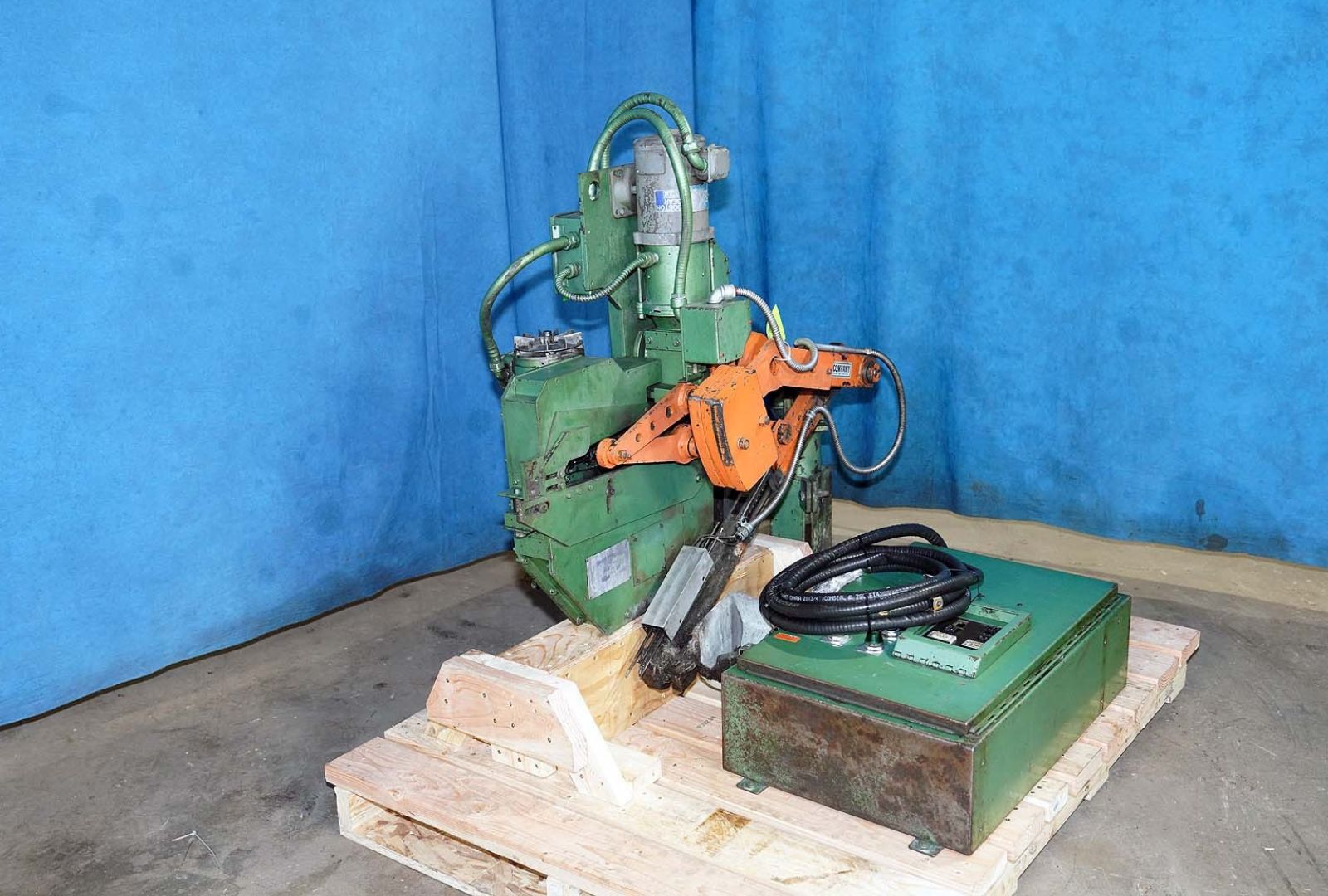

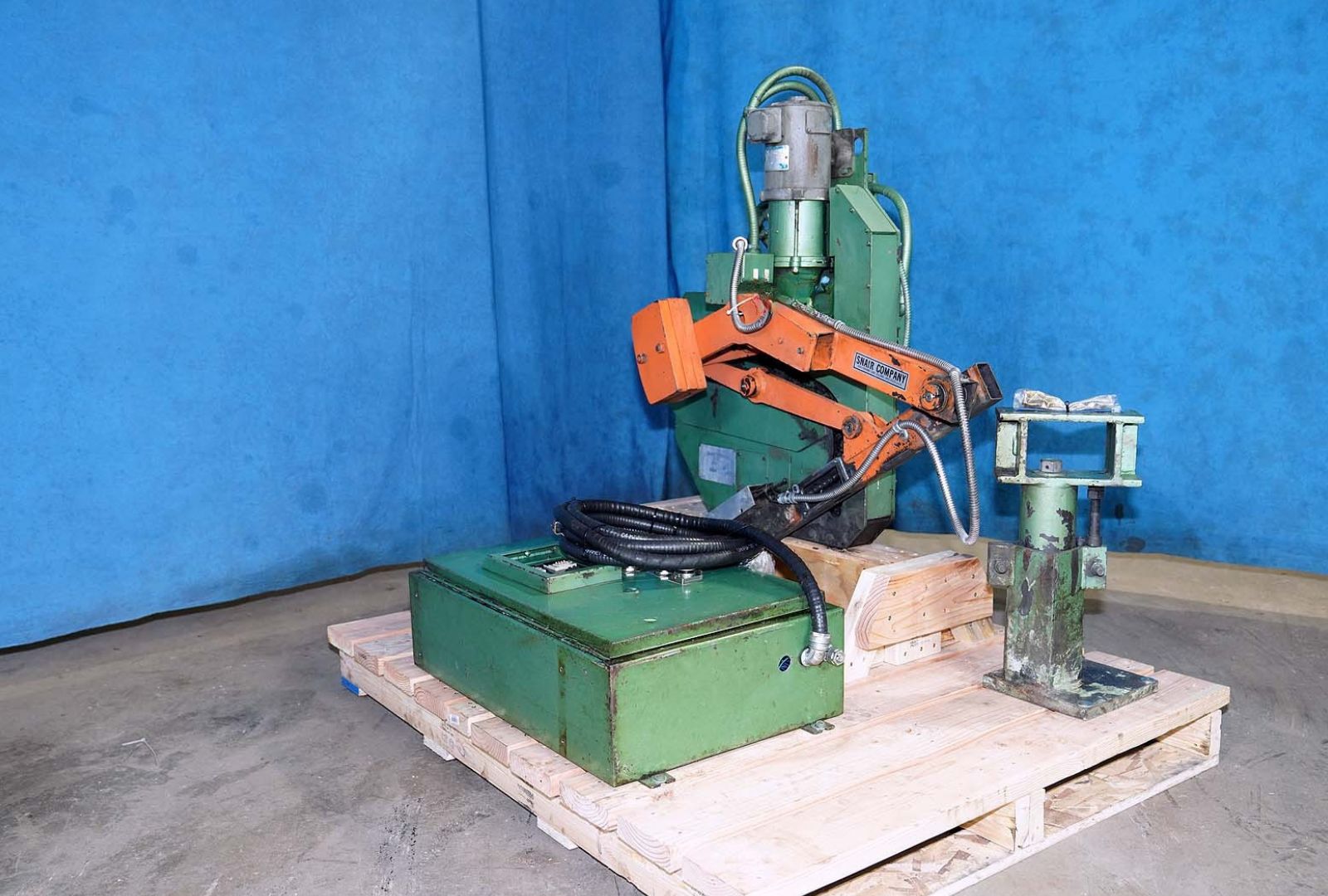

Used Snair Automatic Ladle – 30 Lbs Pour Cap – 65 Inch Stroke #5054
| Specifications | Metric show Imperial | Imperial show Metric |
| Total Stroke | 1651 mm | 65 inch |
| Forward Stroke | 901.7 mm | 35.5 inch |
| Reach Back Stroke | 856 mm | 33.7 inch |
| Cycle Speed | Adjustable sec | Adjustable sec |
| Pour Capacity | 66.1 lbs | 30 kg |
ADDITIONAL SPECIFICATIONS
-
Category Specification Model Name Snair 904-Y7 Type Multi-Link High Speed Helper-Side Automatic Ladle Application Non-Ferrous Aluminum & Brass Die Casting and Foundry Operations Status Available Maximum Stroke (Horizontal) 1,905 mm / 65 inches Maximum Stroke (Vertical) 431 mm / 17 inches Pour Height (Adjustable) 203 mm / 8 inches Pour Capacity (Aluminum) 13.61 kg / 30 pounds Dry Cycles per Hour 225 Power Requirements AC 115 V / 15 amp Machine Weight 340 kg / 600 pounds Features & Accessories • Heavy-duty multi-link chain drive mechanism – rugged design

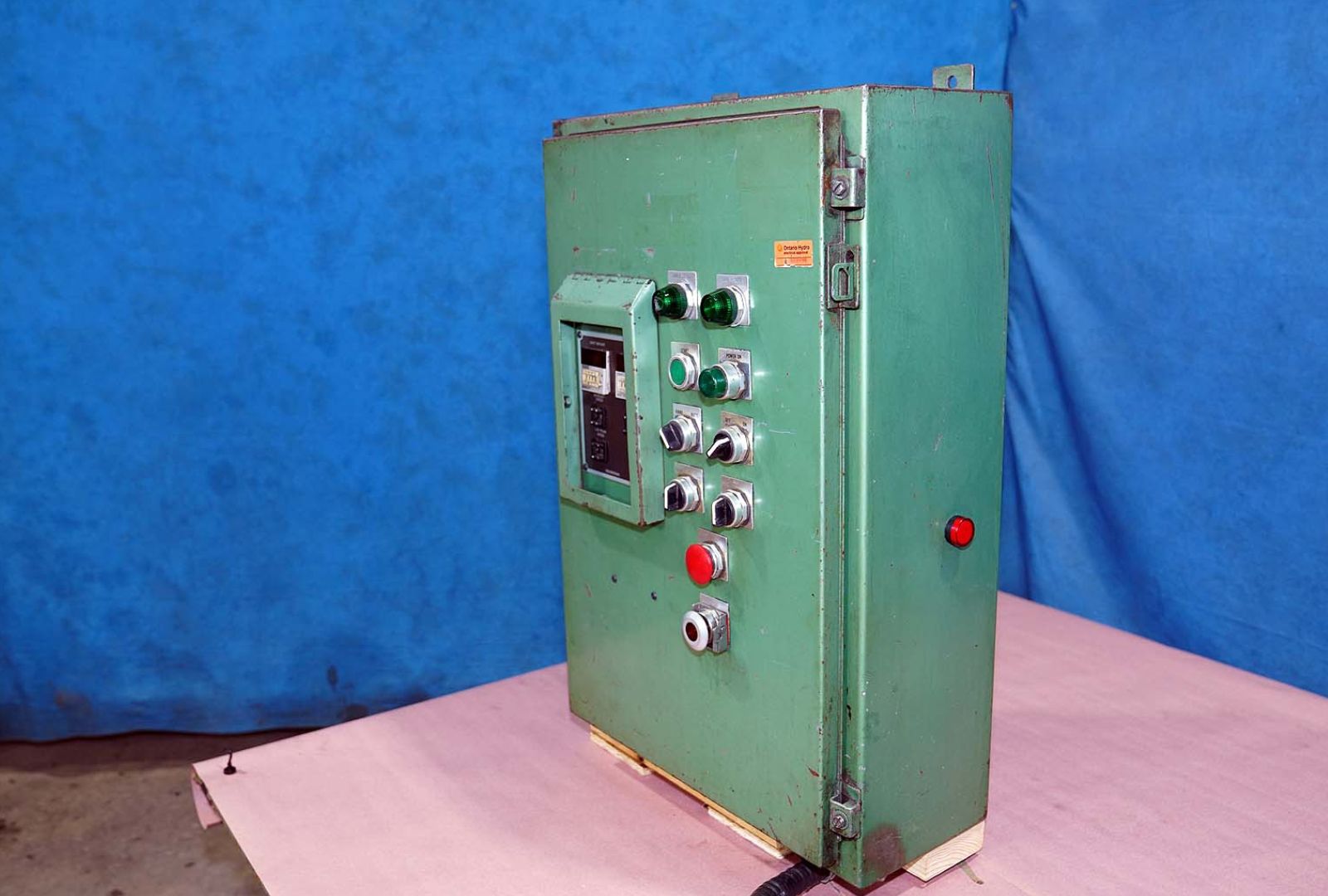

CONTROL
Product Overview
Ladle Die Casting Machine
