Model:  WS 84/210
Height (A):  12'-0”
Length (B): 13'-3 ½”
Width (C): Open Doors 10'-3”
Loading Height: (D) 7'-0”
Work Opening: 5' 5' H X 3'-5”W
Maximum Work Height:  3'-4”
Maximum Work Diameter:  2'-1'
Maximum Load: 2000 lbs 18000 lbs/4
Per Hook: (Total 4 hooks)
Service Door: Manual service door with safety interlock
Blast Chambers: (4) each with adjustable indexing

ELECTRICAL: 18 ¼ hp.

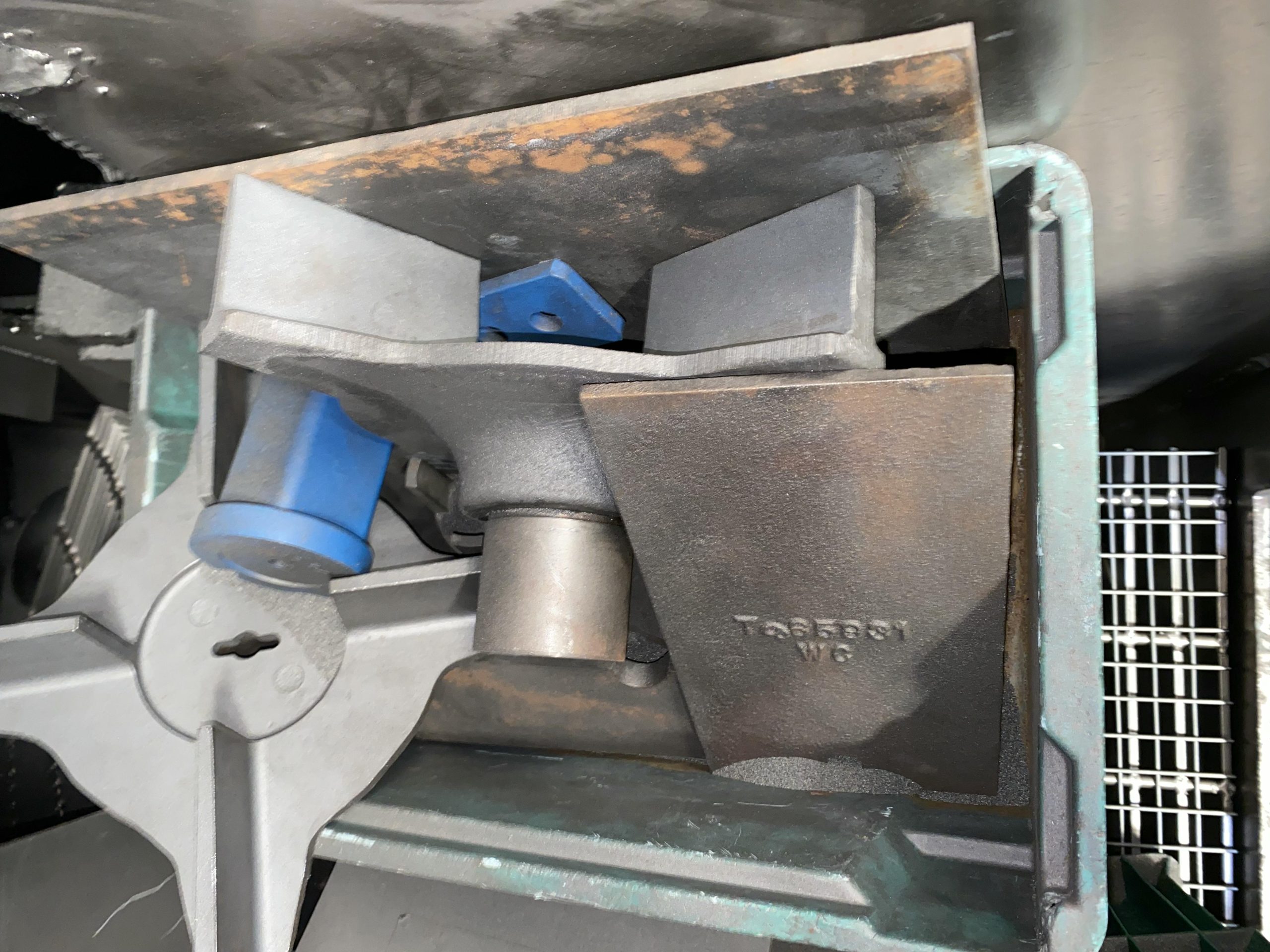

Spinner Hook, Gear Motor, Rotary Conveyor, Wheel Motor
Elevator, Screw Conveyor, Dust Collector
Power Supply: 480 Volts, 3 phase 50 Hertz
Ventilation: 1500 CFM
Noise Level Maximum:  90
Abrasive Charge: 2500 lbs.
Gross Shipping Weight:  12500 lb

• The machine is ready for inspection and/or shipping
• Technical data without obligation – subject to prior sale
• Specifications and location are subject to change without notice
