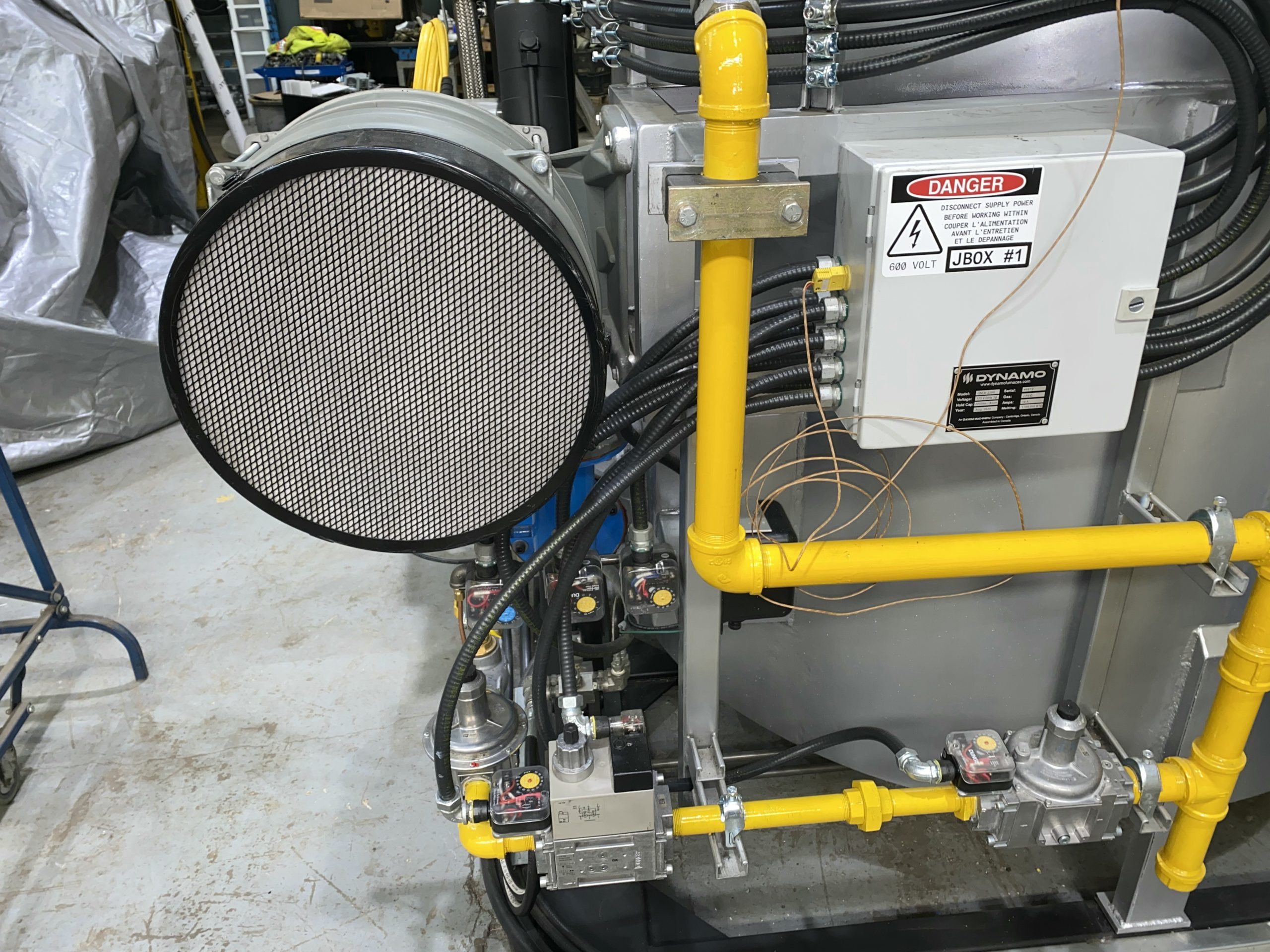

New Dynamo GM-B-2200 Aluminum Gas Tilting Crucible Melting Furnace #4772

Description

:2021
:Furnace
:Dynamo
:GM-B-2200
:Tilting Holding and Melting
:Gas
:2200 Lbs
:990 Lbs
:4772
:New
:Beta Warehouse Canada
:
SOLD
Request Quote
SpecificationsMetric show ImperialImperial  show Metric
Melting Rate 449.1 kg/h 990 lbs/h
Holding Capacity 997.9 kg 2200 lbs
Fuel Type Gas Gas
Number of Burners 1 1
General
Additional Specifications
ADDITIONAL SPECIFICATIONS
  • Power 1,500,000 BTU
  • 575 Volt/60 Hz/3Ph
  • 10 Amps
  • Inlet Pressure: 2 PSIG
  • Max Burner Pressure: 20" W.C.
  • Min Burner Pressure:  16" W.C.
CONTROL
  • Omron (HMI) Human Machine Interface Color Touch Screen with graphics and auto on/off scheduling
  • Omron (PLC ) Programmable Logic Controller
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice

New Dynamo GM-B-2200 Aluminum Gas Tilting Crucible Melting Furnace #4772

This Gas Melting and Holding Furnace  is manufactured by Dynamo

SPECIFICATIONS
Melting Rate 990 lbs/h
Holding Capacity 2200 lbs
Fuel Type Gas
Number of Burners 1

ADDITIONAL SPECIFICATIONS
Power 1,500,000 BTU
575 Volt/60 Hz/3Ph
10 Amps
Inlet Pressure: 2 PSIG
Max Burner Pressure: 20" W.C.
Min Burner Pressure: 16" W.C.

CONTROL
Omron (HMI) Human Machine Interface Color Touch Screen with graphics and auto on/off scheduling
Omron (PLC ) Programmable Logic Controller

AVAILABILITY AND TERMS
The machine is ready for inspection and/or shipping
Technical data without obligation – subject to prior sale
Specifications and location are subject to change without notice

This Gas Melting and Holding Dynamo Furnace reference #4772 is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping.

We offer used gas aluminum melting and holding furnace, used electric aluminum melting and holding furnaces, used foundry melting furnaces in different sizes, and are available with a variety of options and brands like Shaefer, Striko, Lindberg, Thermtronix, Dynamo Furnaces, and many more. Our high-performance used melting furnaces provide a quick and convenient method of adjusting the operating cycle to maintain maximum productivity.

The Importance of a Used Melting and Holding Furnace:

The melting of aluminum is a necessary asset in the diecasting, foundry, and sand casting industries. The selection of a used melting, holding furnace, or molten metal furnaces are considered as carefully as that a used die casting equipment or foundry equipment. The most sophisticated machines, press or CNC cannot correct the problem that occurred in the first step, the melting furnace, and the metal quality that it produces. Gas melting and holding furnaces are well known in the Die Casting business and automotive sector. They are machines that each day have more value according to their peak of use since they can be used for many industrial tasks.

Quality Factory Equipment at a Fraction of the Cost of New

Beta Die Casting Equipment is the largest buyer and reseller of used gas melting and holding furnaces, used electric melting and holding furnaces, used foundry melting furnaces, used die casting machines, and used die casting machinery in the world. We supply the best used four post hydraulic trim presses, used trim presses, and used trimming presses models with either Allen Bradley plc or Siemens plc for the greatest adaptability. We offer tremendous esteem for the money and allow you more standard highlights than any other company. Why pay way more in case you are doing not ought to?

Beta Die Casting Equipment also buys and sells industrial machines and automation equipment such as Die Cast Press, High-Pressure Die Casting Machines, Cold Chamber Die Casting machines, Hot Chamber Die Casting Machines, Trim Press, Melting furnaces, Holding furnaces, Stack Melting Furnaces, Crucible Furnaces, Die Casting Ladles, Extractors, Multi-slide machines, Techmire Machines, Oil Temperature Controllers, Shot blast machines, Trimming Press, Die holders and other auxiliary equipment.

We Offer the Largest Variety of Used Industrial Equipment

We sell all types of equipment such as used Melting and Holding Furnaces,  trimming presses, cold chamber die casting and hot chamber die casting machines. We also offer aluminum die casting machinery, zinc high pressure die casting machinery, trim presses,  trimming presses, furnaces, automation, finishing, inspection, and machining equipment. We stock European die casting machines made by Buhler, Idra, Italpresse, Frech, Weingarten, Colosio, Upre, Agrati, and Triulzi. From Asia, we stock die casting machines such as Toshiba, UBE, Toyo, Zitai, BSK, KDK, Producer, and LK. From the United States, we stock die casting machines such as Prince, HPM, BuhlerPrince, Lester, B&T, THT, National, Birch, Kux. We also offer Canadian machines such as Techmire, Dynacast, Triad, and Fishercast.

Used Melting Furnaces is our Speciality, Industrial Equipment is our Expertise

We are a diverse sort of fabricating company. We offer a comprehensive line of items and able to work with you to customize them to your particular needs. We are more than your regular provider - we are your accomplice in victory.

Our clients rely on us for their used gas melting and holding furnaces, used electric melting and holding furnaces, trimming presses, used trim presses, used four-post hydraulic trim press, and used die casting machinery needs, but we also offer used industrial and automation equipment such as auto ladles, reciprocating die sprayers, and extractors (dedicated and robotic). Brands we stock include ABB, Kuka, Fanuc, Kuka and Motoman robot, Toshiba, Rimrock, Snair, Advance Products. We also carry all types of auxiliary equipment such die temperature control units (hot oil units) from Regoplas, Sterlco, Mokon, QPC, Advance, Robamat and Advantage. We buy and sell X-ray machines, spectrometers, shot blast machines, CNC machines, and four-post hydraulic trim presses from Robopres, Tecnopres, Reis, Diesse Presse, Brescia Presse, Metal Mechanics, Hannifin, KR Wilson, Corsteel, and Kard.
