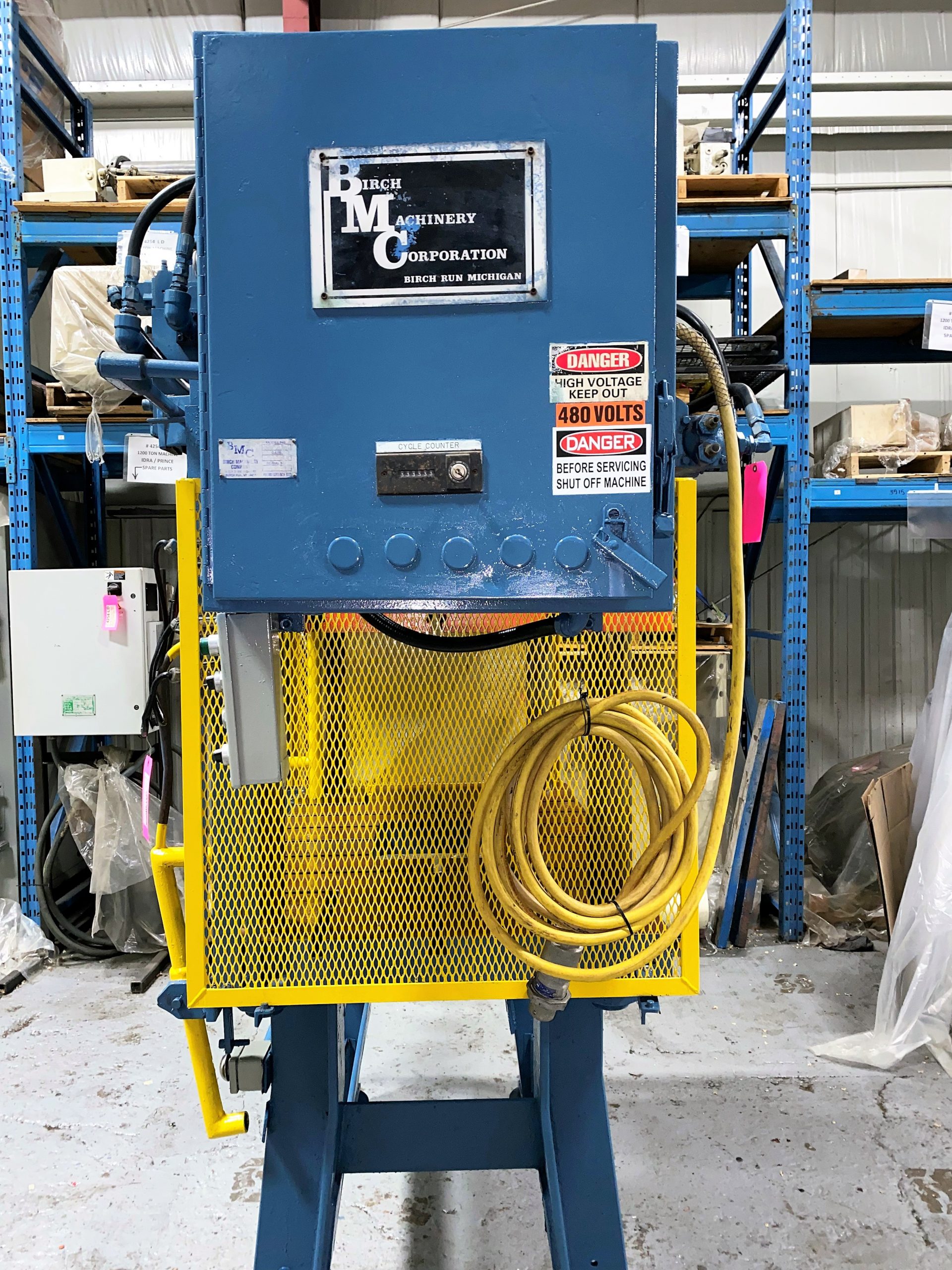

Used BIRCH 30 Ton Trim Press Die Casting #4843

Description

:Trim Press
:Birch
:30 Tons
:24" x 48"
:4843
:Beta Warehouse Canada
:
AVAILABLE
Request Quote
SpecificationsMetric show ImperialImperial  show Metric
Pressing Force 27.2 tons 30 tons
Distance Between Tie Bars (D x W) 609.6 x 1219.2 mm 24" x 48" inch
Tie Bar Diameter 88.9 mm 3.5 inch
Stroke 457.2 mm 18 inch
Daylight / Shut Height (Min) 254 mm 10 inch
Daylight / Shut Height (Max) 711.2 mm 28 inch
General
Table Size 1524 x 901.7 mm 60" x 35.5" inch
ADDITIONAL SPECIFICATIONS
  • Cut out Size in Bed: (L/R x F/B):  16 x 13 inches
  • Air Safety Ratchet

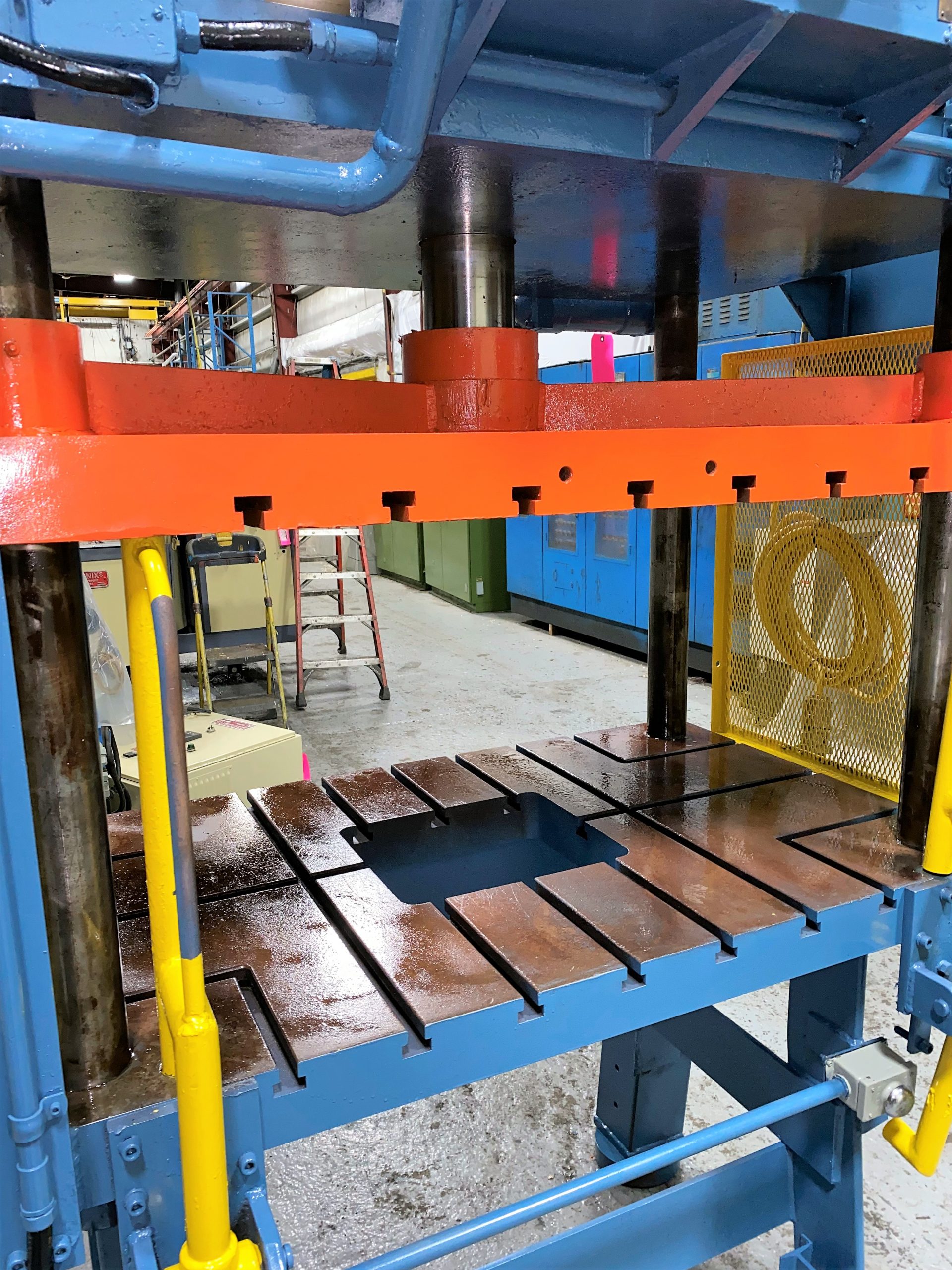

  • T-Slotted Moving & Bed Platens
  • Dual Pull Out Bars

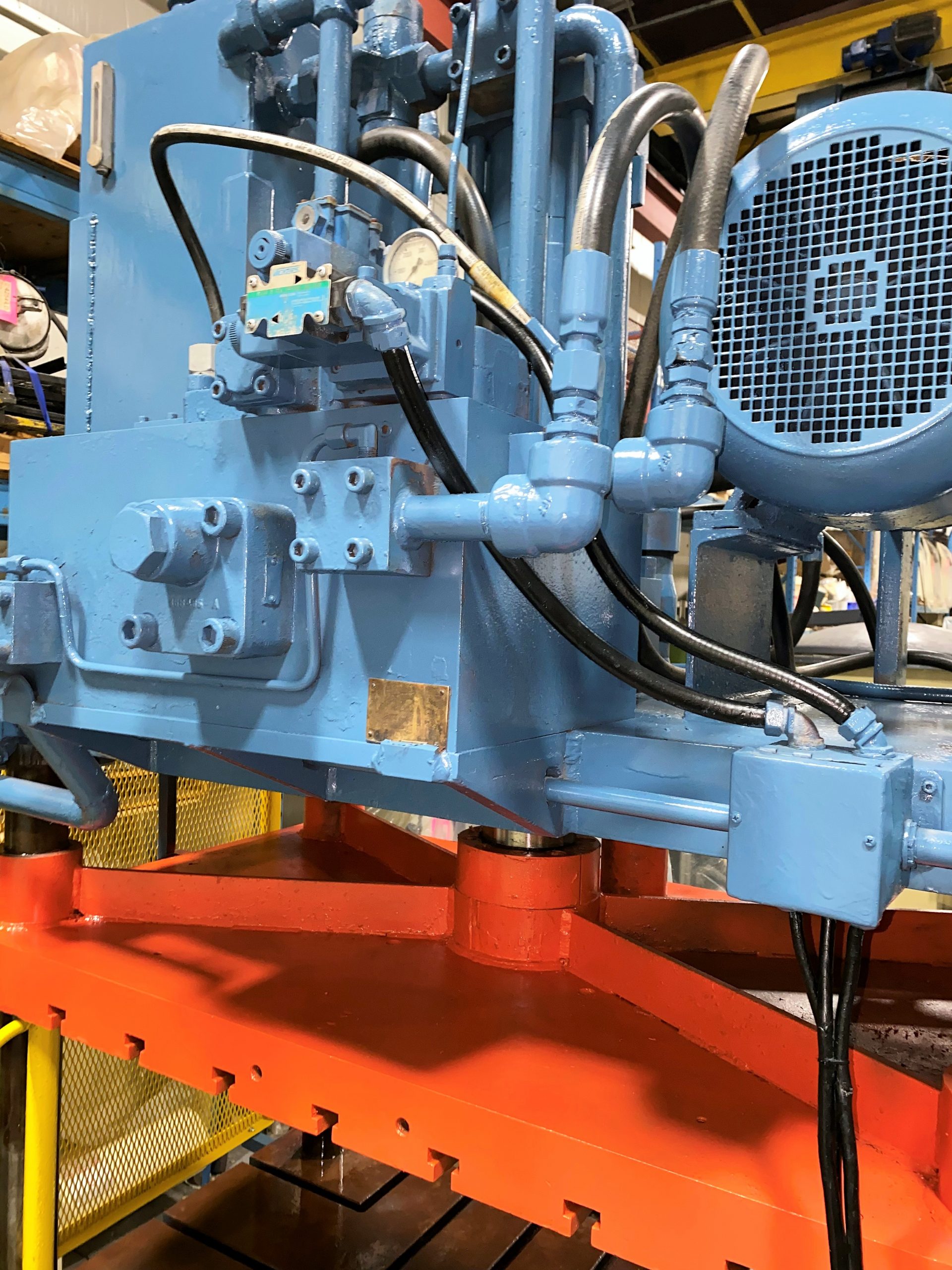

  • Top Mounted Hydraulics
CONTROL

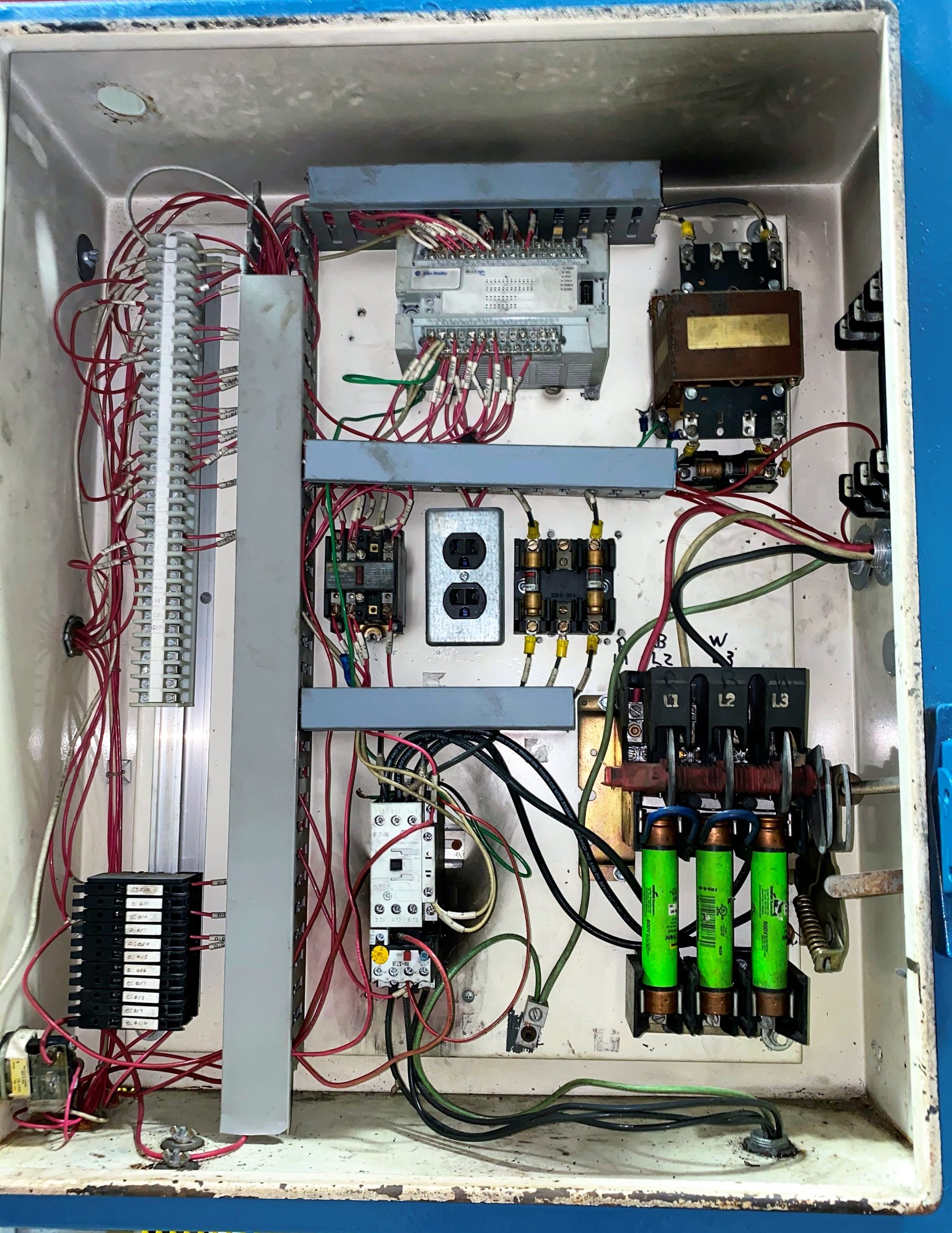

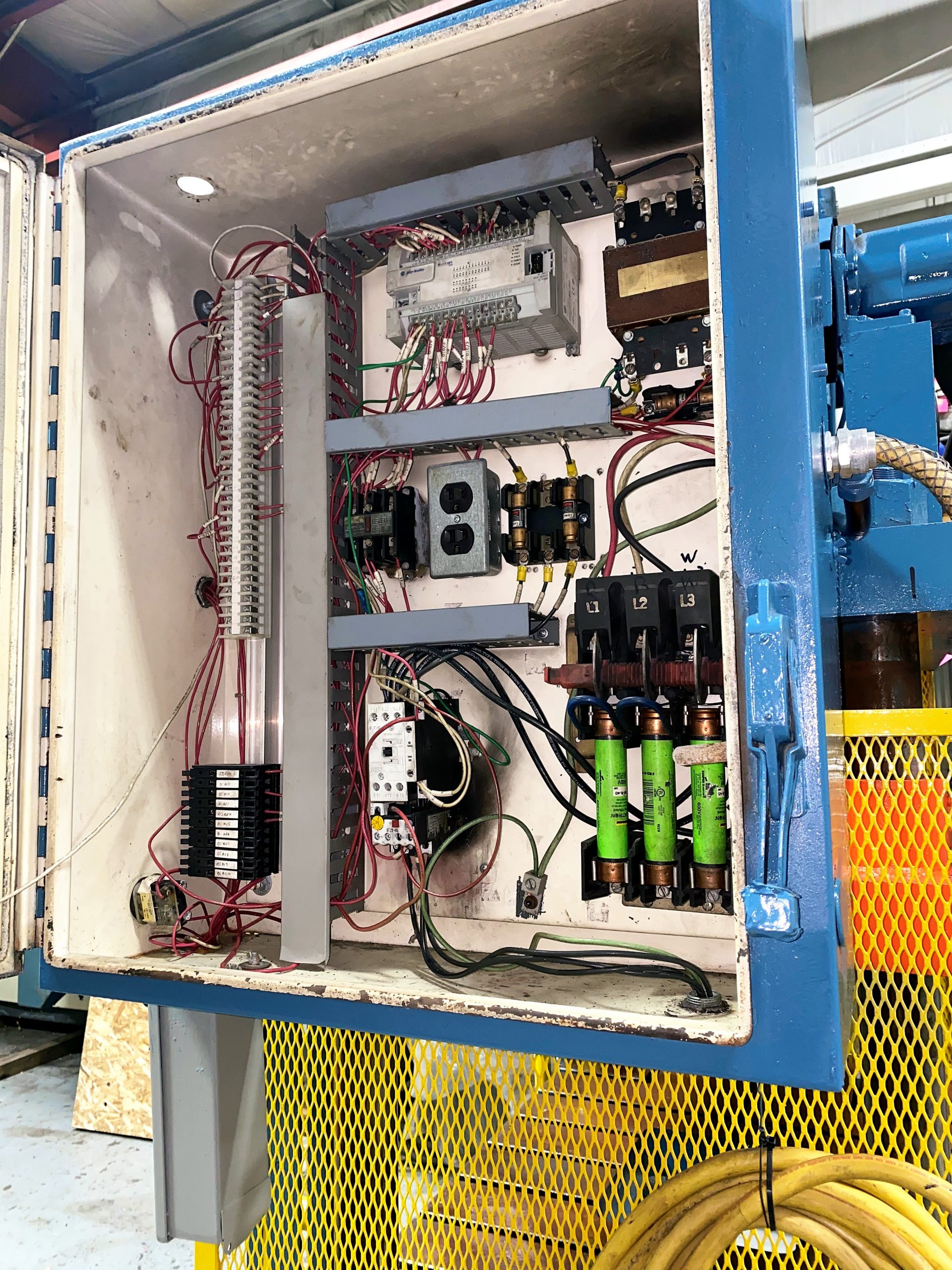

  • Allen Bradley MicroLogix 1200
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice

Used BIRCH 30 Ton Trim Press Die Casting #4843

DESCRIPTION: Item: Trim Press, Brand: Birch, Trim Force: 30 Tons, Btw Tie Bars (D x W):24" x 48", Reference No.: 4843. Location: Beta Warehouse Canada Status: AVAILABLE.

SPECIFICATIONS: Pressing Force 30 tons, Distance Between Tie Bars (D x W)24" x 48" inch. Tie Bar Diameter3.5 inch. Stroke18 inch. Daylight / Shut Height (Min)10 inch. Daylight / Shut Height (Max)28 inch. GENERAL: Table Size: 60" x 35.5" inch.

ADDITIONAL SPECIFICATIONS: Cut out Size in Bed: (L/R x F/B):  16 x 13 inches. Air Safety Ratchet, T-Slotted Moving & Bed Platens. Dual Pull Out Bars, Top Mounted Hydraulics. CONTROL: Allen Bradley MicroLogix 1200. AVAILABILITY AND TERMS: Machine is ready for inspection and/or shipping, technical data without obligation – subject to prior sale, Specifications and location are subject to change without notice.

This used Trim Press 30 Ton is for sale and manufactured by Birch.

This used trimming press highlights the most recent control innovation, that fits your application. This used four-post hydraulic trim press is made by Birch reference #4843 is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping.

We offer Used Hydraulic Trim Presses, used trimming presses in different sizes, and are available with a variety of options and brands like Birch, Metal Mechanic, MetalPress machinery, Kard, Quantum, and many more. Our high-performance Hydraulic Trim Presses provide a quick and convenient method of adjusting the operating cycle to maintain maximum productivity.

The Importance of a Used Four Post Hydraulic Trim Press:

It is a very common hydraulic press in the automotive world and fundamentally it can cause great force, with only a little force. It is made up of one hydraulic cylinder that moves up and down providing tremendous flexibility and accuracy when trimming a casting, which is responsible for increasing power and maintaining maximum productivity. It is well known in the Die Casting business and automotive sector, the function of the trim press or trimming press is very basic. Its main objective is to multiply forces, and this is used to perfectly cut and trim die casting parts or other aluminum castings. They are machines that each day have more value according to their peak of use since they can be used for many industrial tasks.
