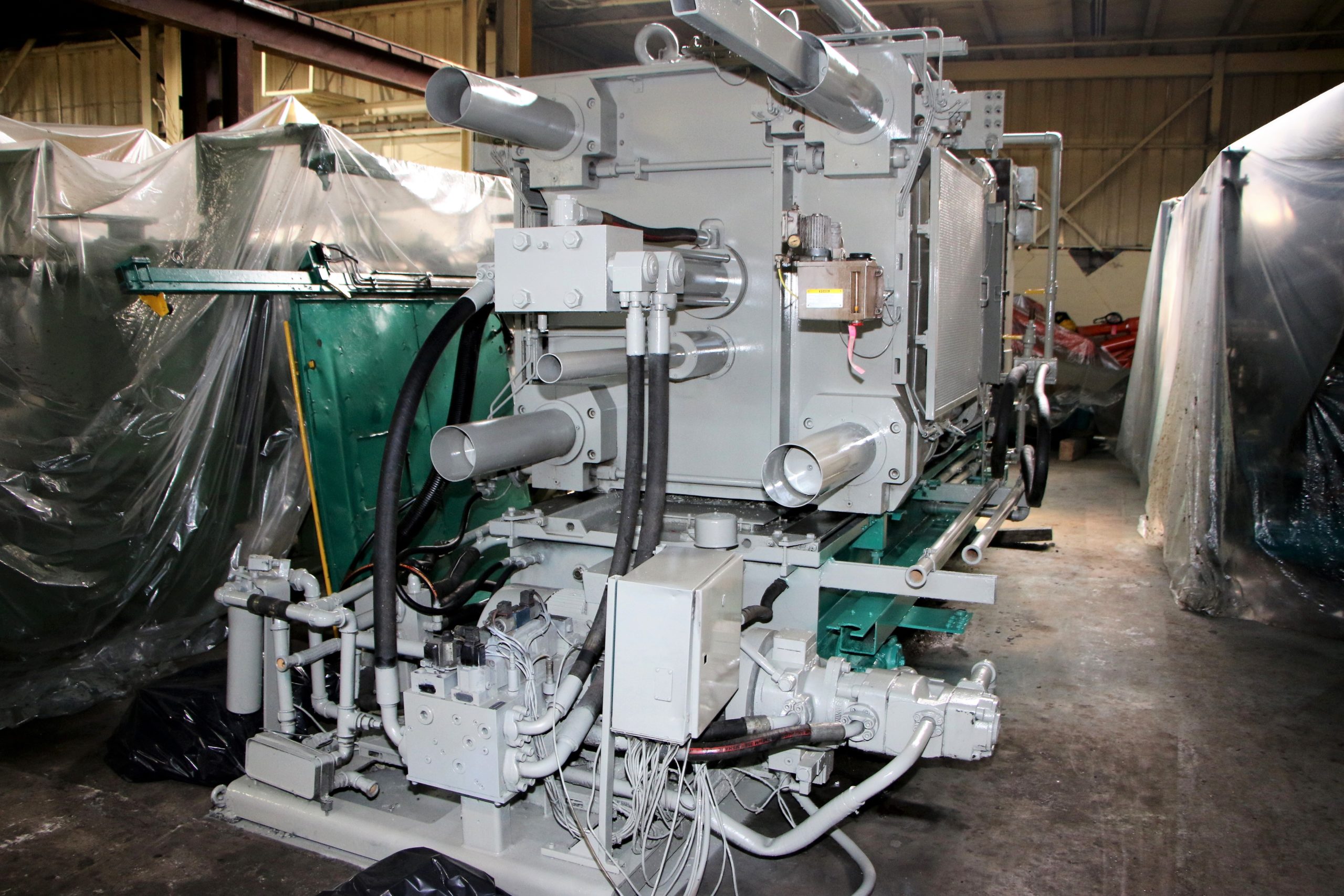

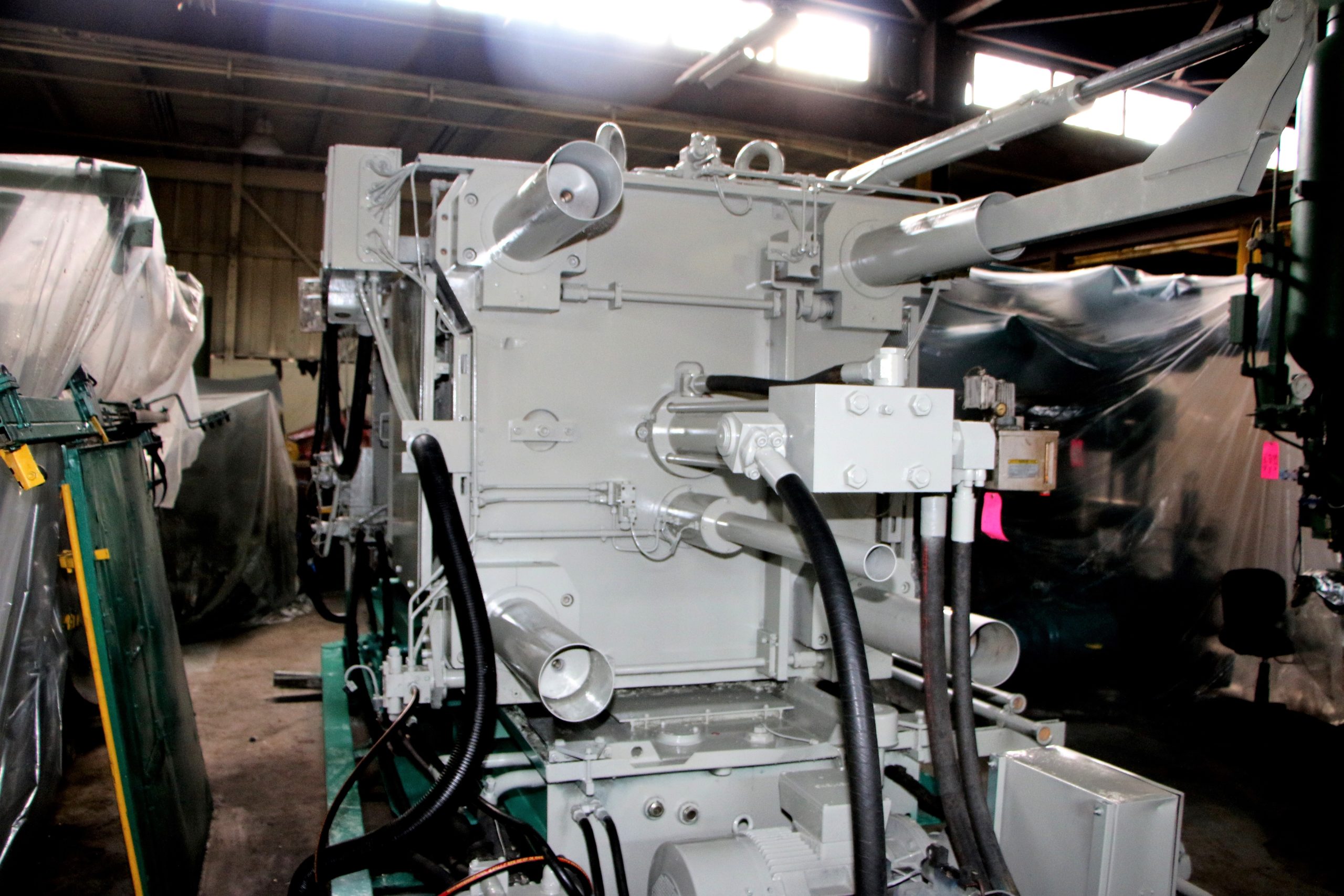

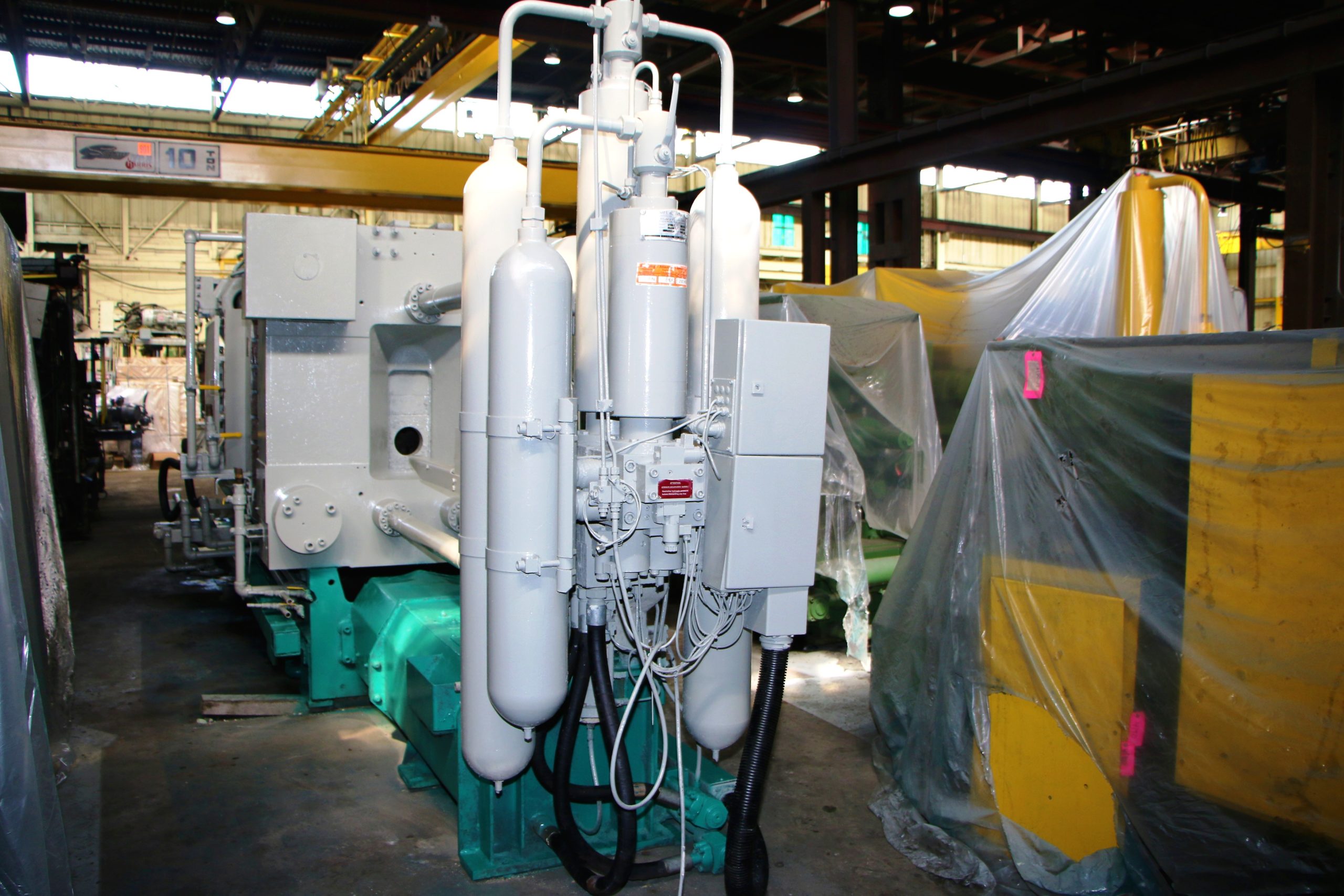

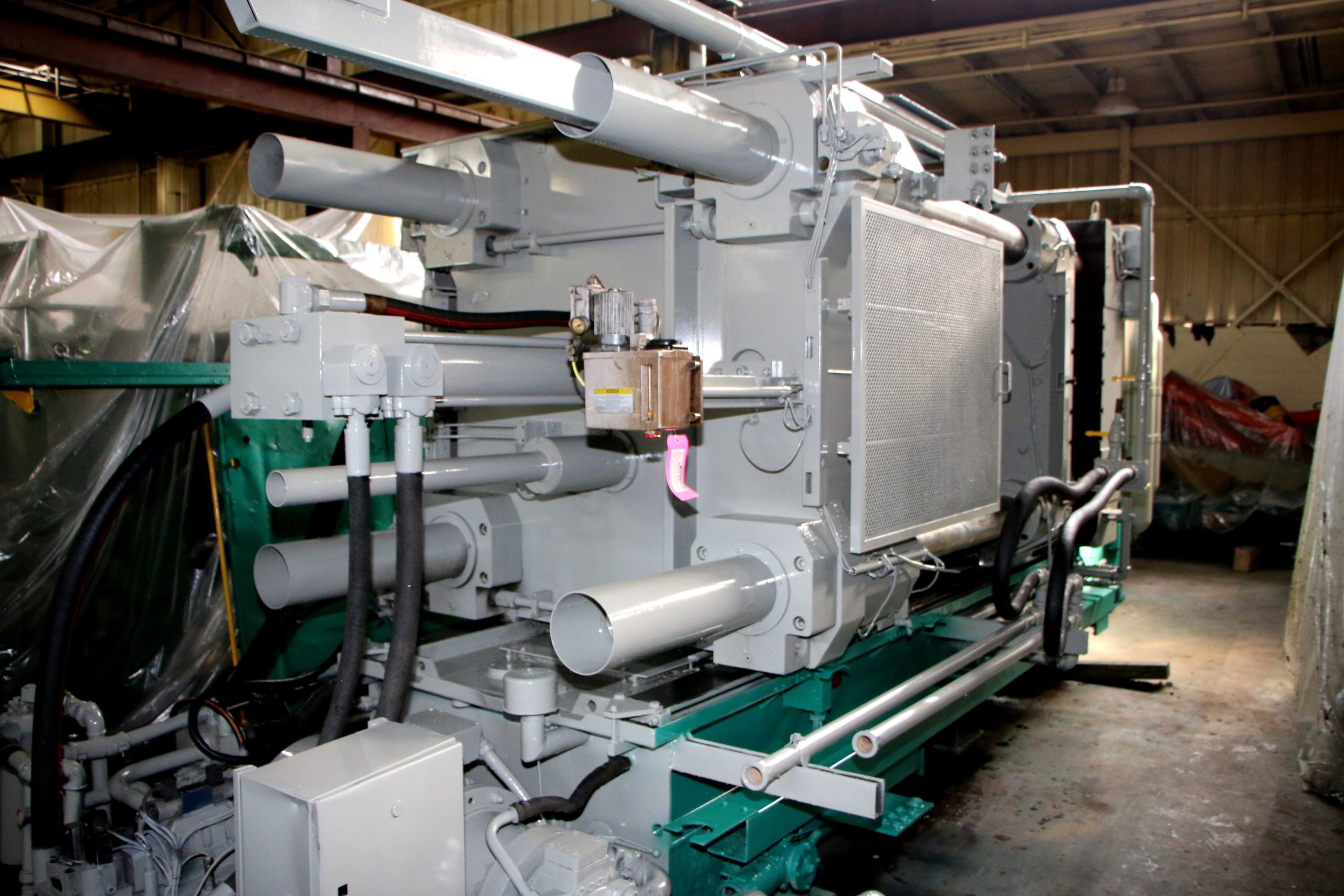

Used Buhler Evolution 944 Ton Cold Chamber Die Casting Machine #4653

Description

:
2000
:Cold Chamber
:Buhler
:84 DL
:944 Tons
:4653
:Beta Warehouse, Canada
:
SOLD
Request Quote
SpecificationsMetric show ImperialImperial  show Metric

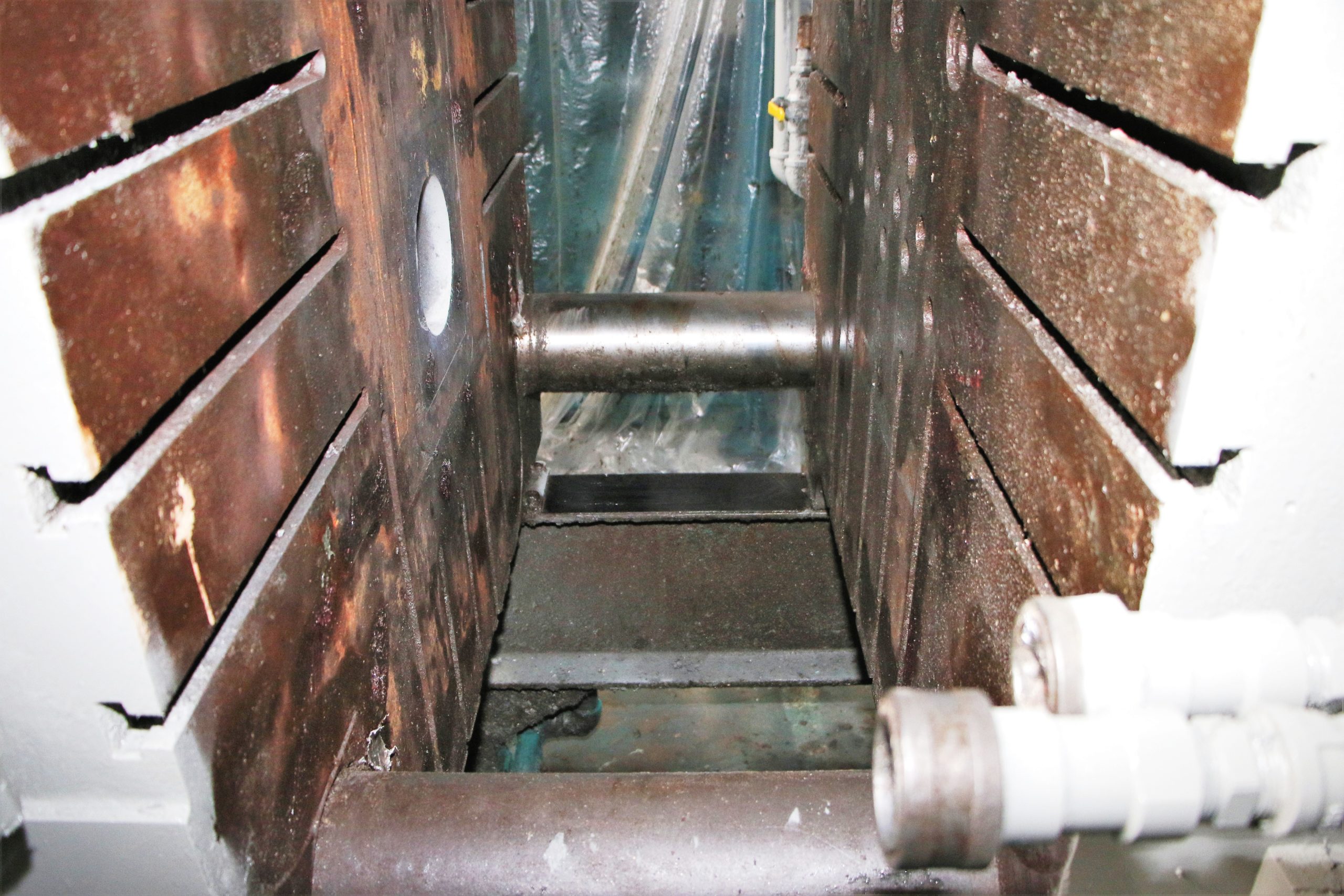

Die Close
Locking Force 856.4 tons 944 tons
Tie Bar Diameter: 170.2 mm 6.7 inch
Stationary Platen (W x H): 1529.1 x 1656.1 mm 60.2 x 65.2 inch
Die Height (Min-Max): 398.8 - 1000.8 mm 15.7 - 39.4 inch

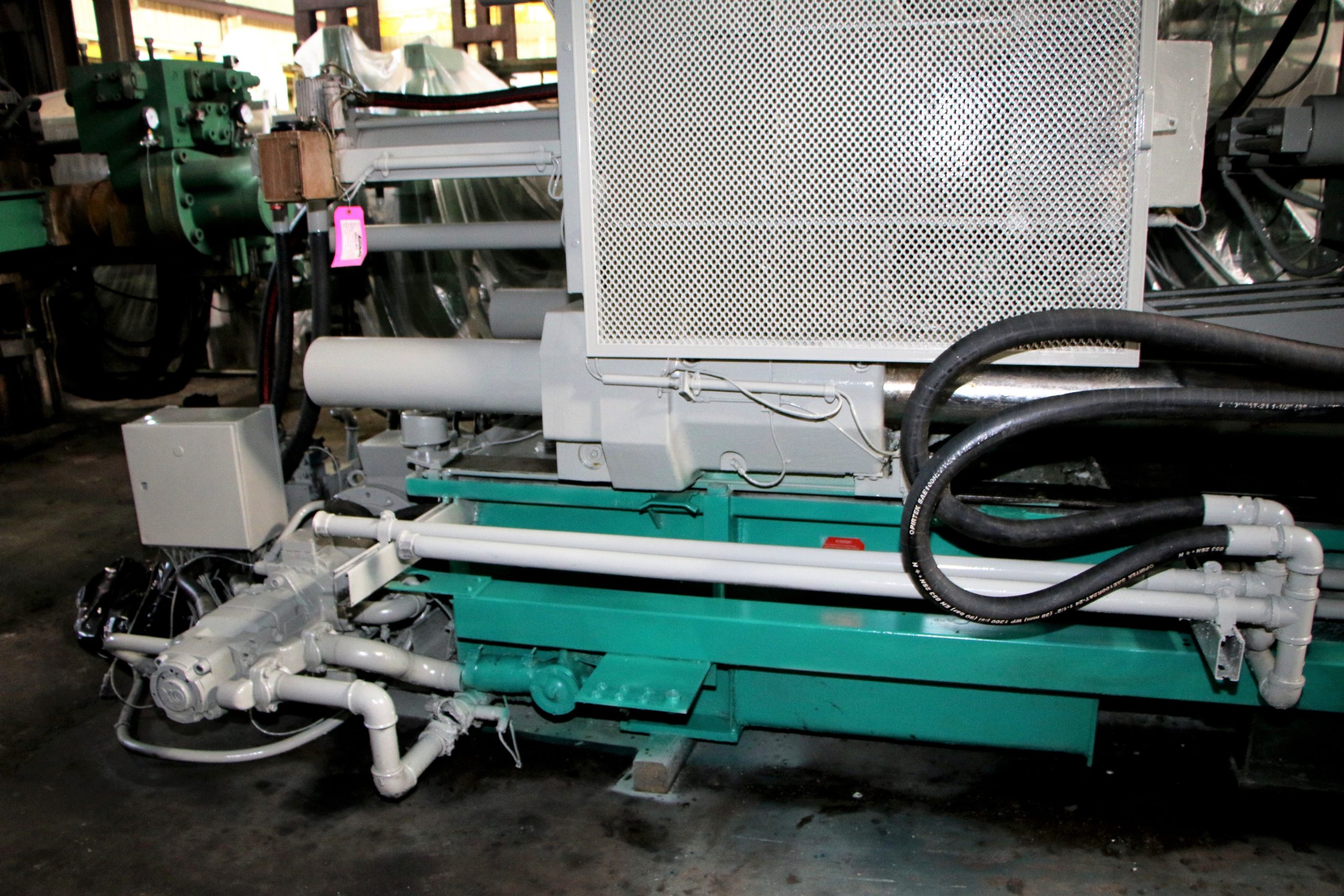

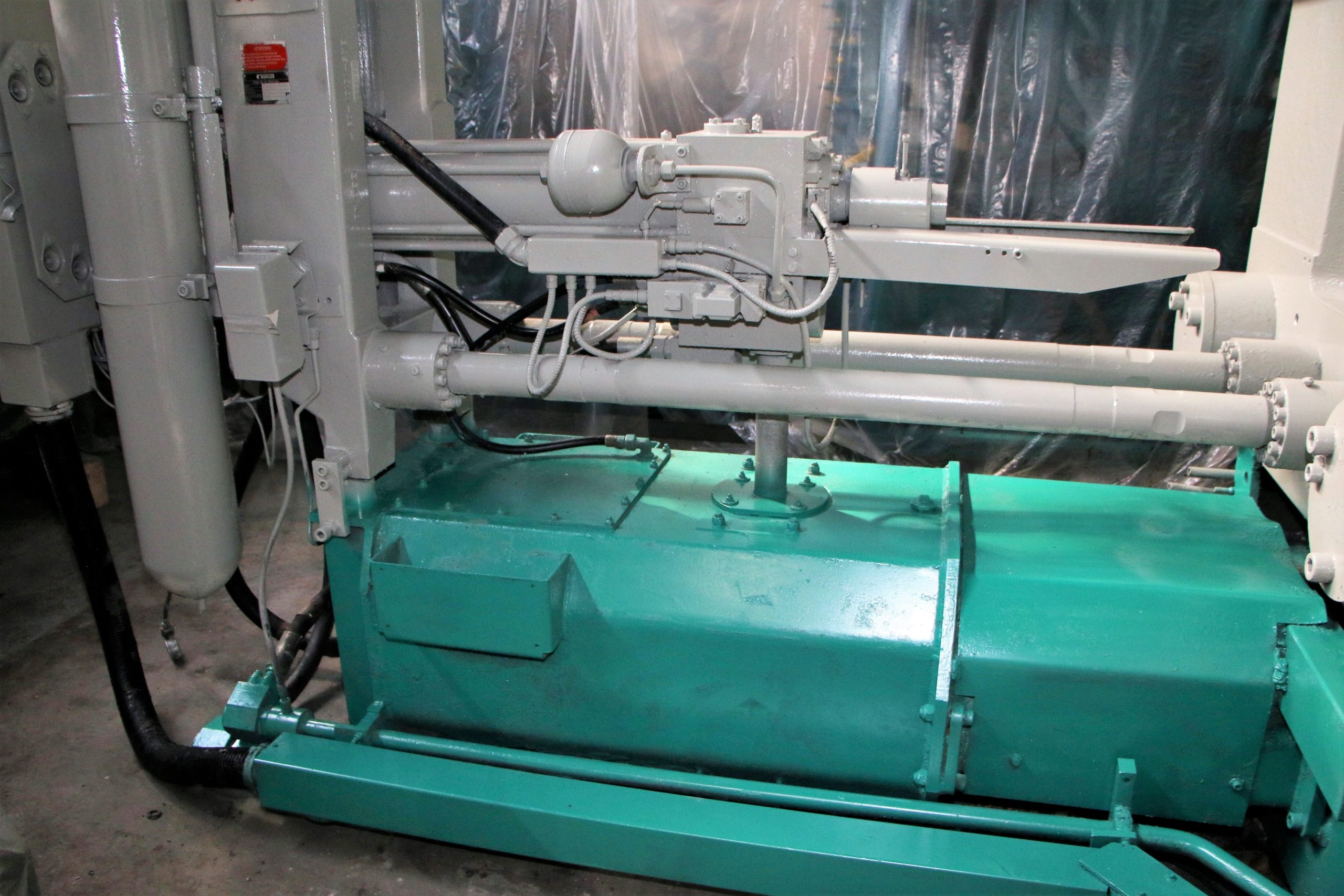

Injection
Die Injection Force (Min-Max): 29.5 - 71.3 tons 32.5 - 78.6 tons
Plunger Stroke: 599.4 mm 23.6 inch
Plunger Tip Diameter (Min-Max): 71.1 - 109.2 mm 2.8 - 4.3 inch
Ejection
Ejection Force: 22.7 tons 25 tons
General

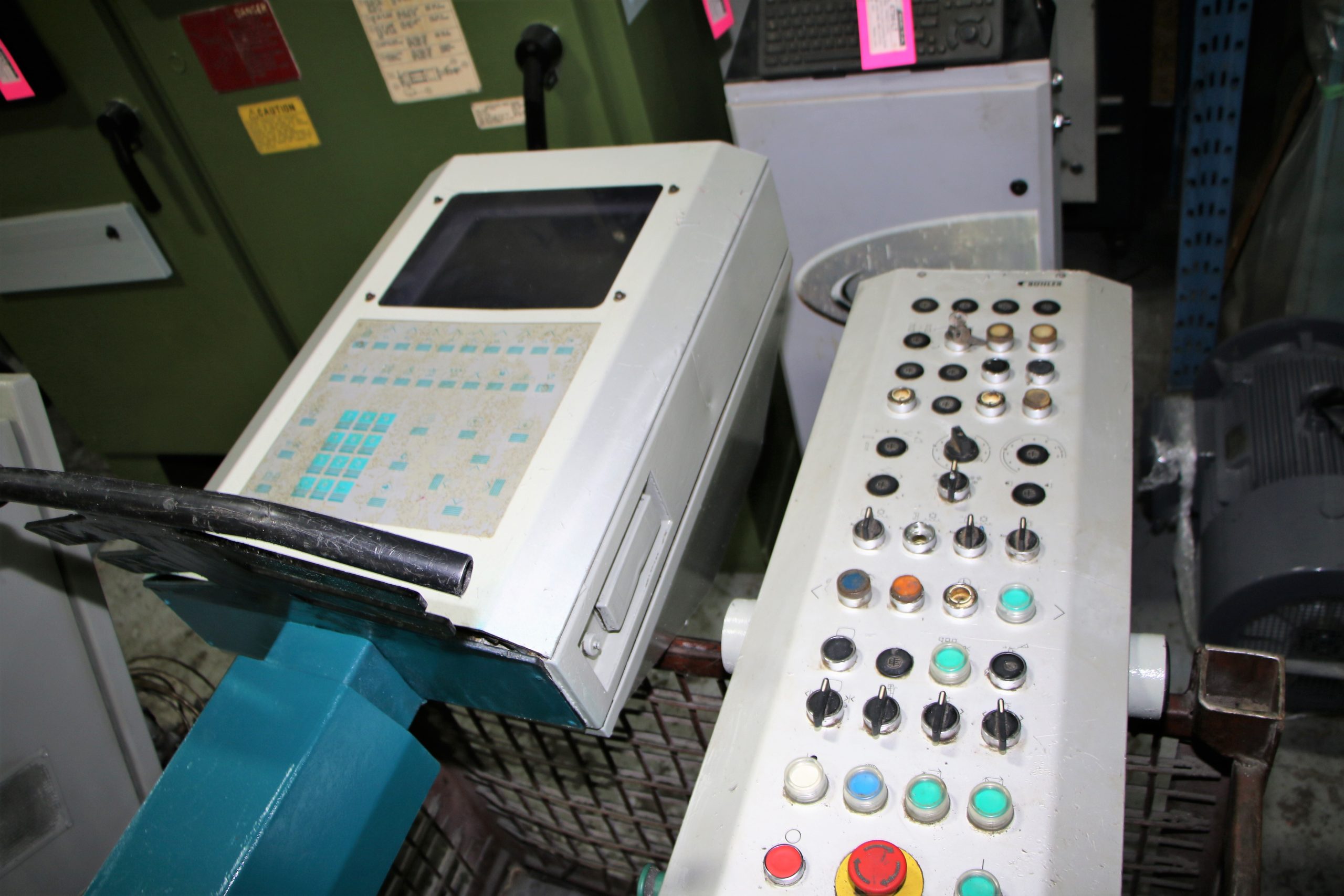

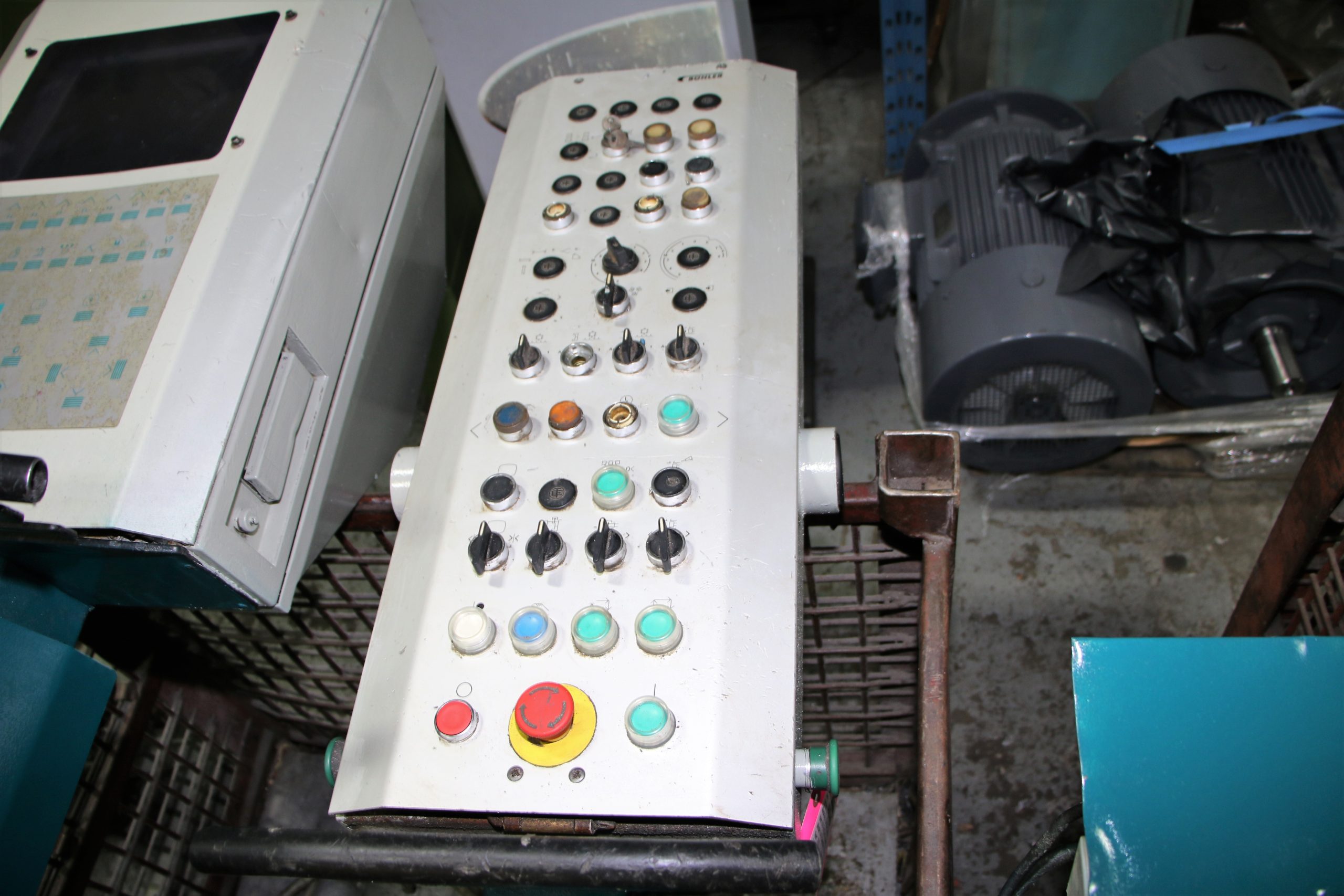

CONTROL
  • Buhler Data Speed Control System
  • Floor Mounted Power Operator and Helper Side Safety Doors
  • Hydraulic Motorized Die Height Adjustment System
  • Top Operator Side Fully Automatic Tie Bar Pulling System with Electronic Tie Bar Strain Gauges

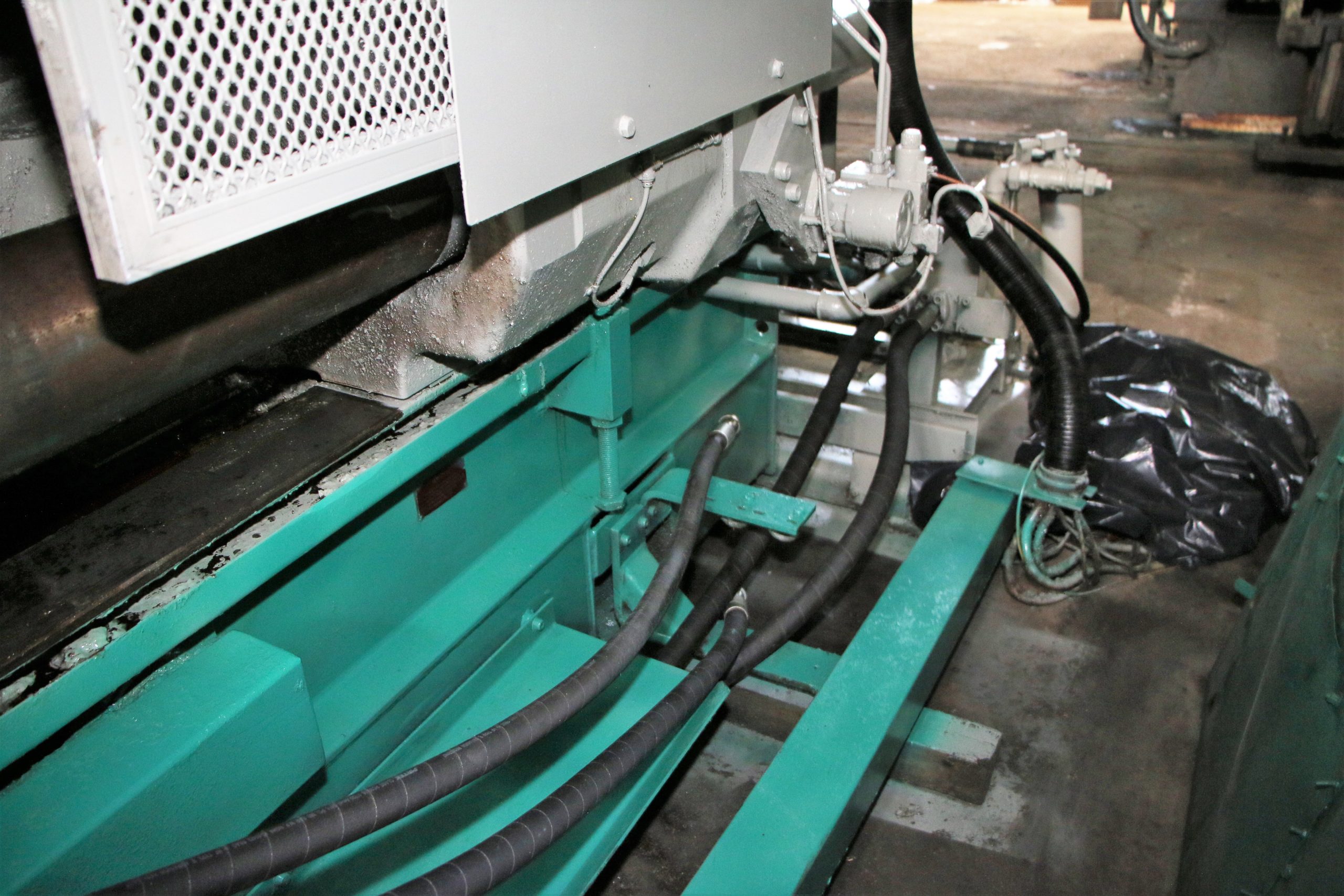

  • Twin Cylinder Hydraulic Bumper Plate Ejection
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice

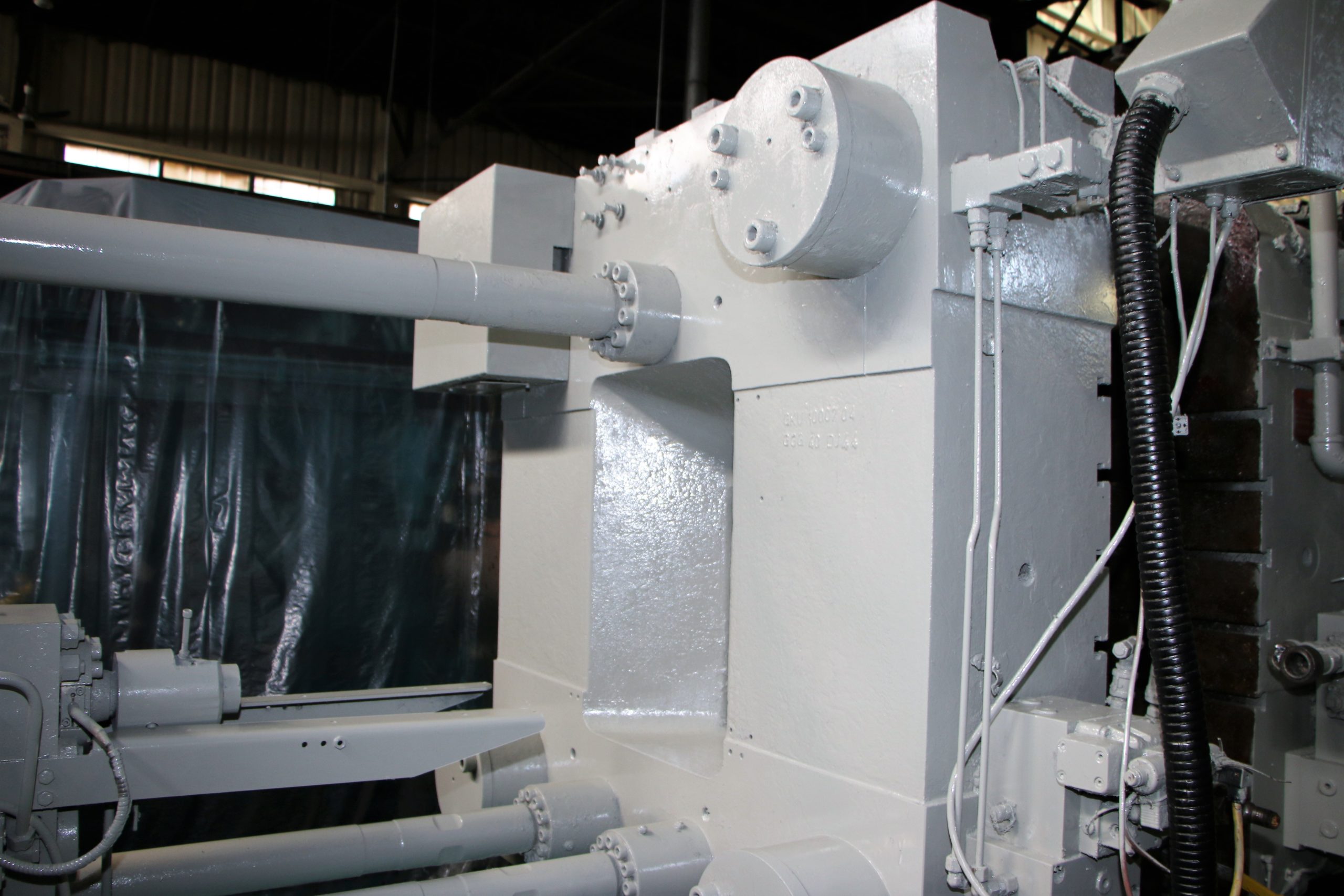

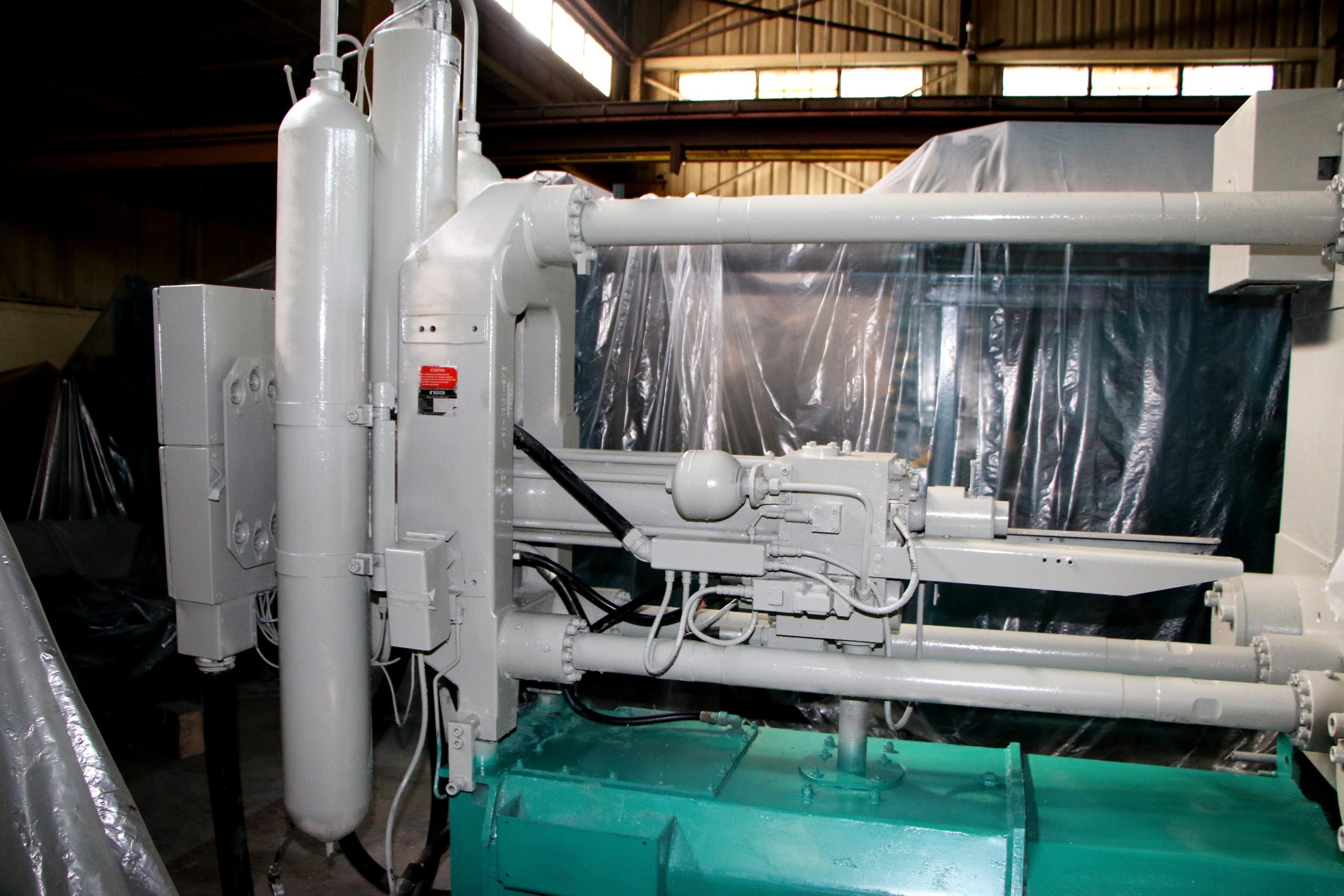

This Cold Chamber Die Casting machine 944ton is manufactured by Buhler Evolution.

This Cold Chamber Die Casting Machine and Die Cast Press reference #4653 is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping.

Beta Die Casting Equipment is the largest buyer and reseller of used die casting machines and used die casting machinery in the world. Beta Die Casting Equipment also buys and sells industrial machines and automation equipment such as Die Cast Press, High Pressure Die Casting Machines, Cold Chamber Die Casting machines, Hot Chamber Die Casting Machines, Trim Press, Melting furnaces, Holding furnaces, Stack Melting Furnaces, Crucible Furnaces, Die Casting Ladles, Extractors, Multi-slide machines, Techmire Machines, Oil Temperature Controllers, Shot blast machines, Trimming Press, Die holders and other auxiliary equipment.

We sell all types of equipment such as cold chamber die casting and hot chamber die casting machines. We also offer aluminum die casting machinery, zinc high pressure die casting machinery, trim presses,  trimming presses, furnaces, automation, finishing, inspection and machining equipment. We stock European die casting machines made by Buhler, Idra, Italpresse, Frech, Weingarten, Colosio, Upre, Agrati, and Triulzi. From Asia, we stock die casting machines such as Toshiba, UBE, Toyo, Zitai, BSK, KDK, Producer, and LK. From the United States we stock die casting machines such as Prince, HPM, BuhlerPrince, Lester, B&T, THT, National, Birch, Kux. We also offer Canadian machines such as Techmire, Dynacast, Triad and Fishercast.

What's Included
Product Overview

Used Cold Chamber Die Casting Machine

Features
  • Cold Chamber
  • Hyd Ejection

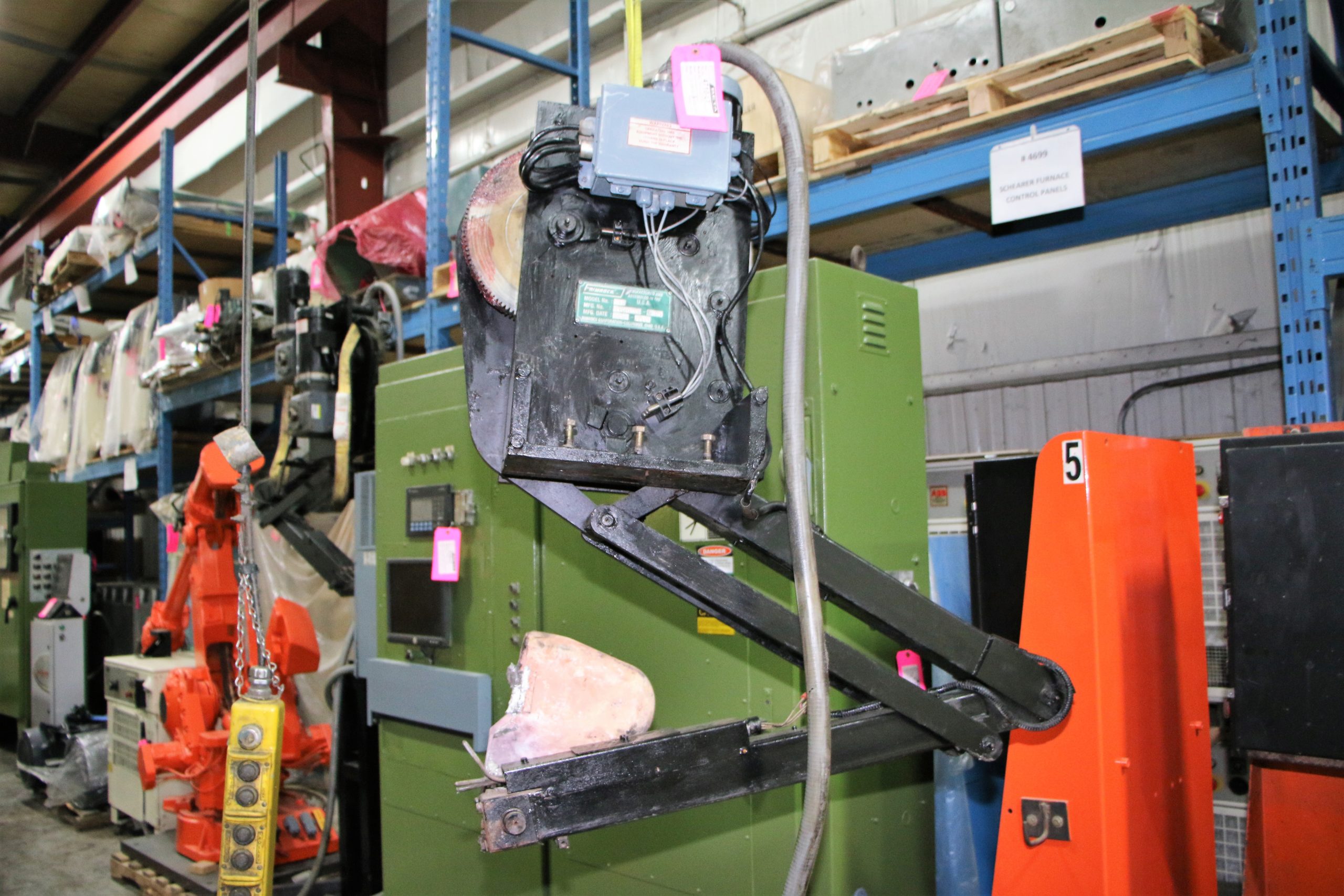

  • Ladle
  • Machine Manuals

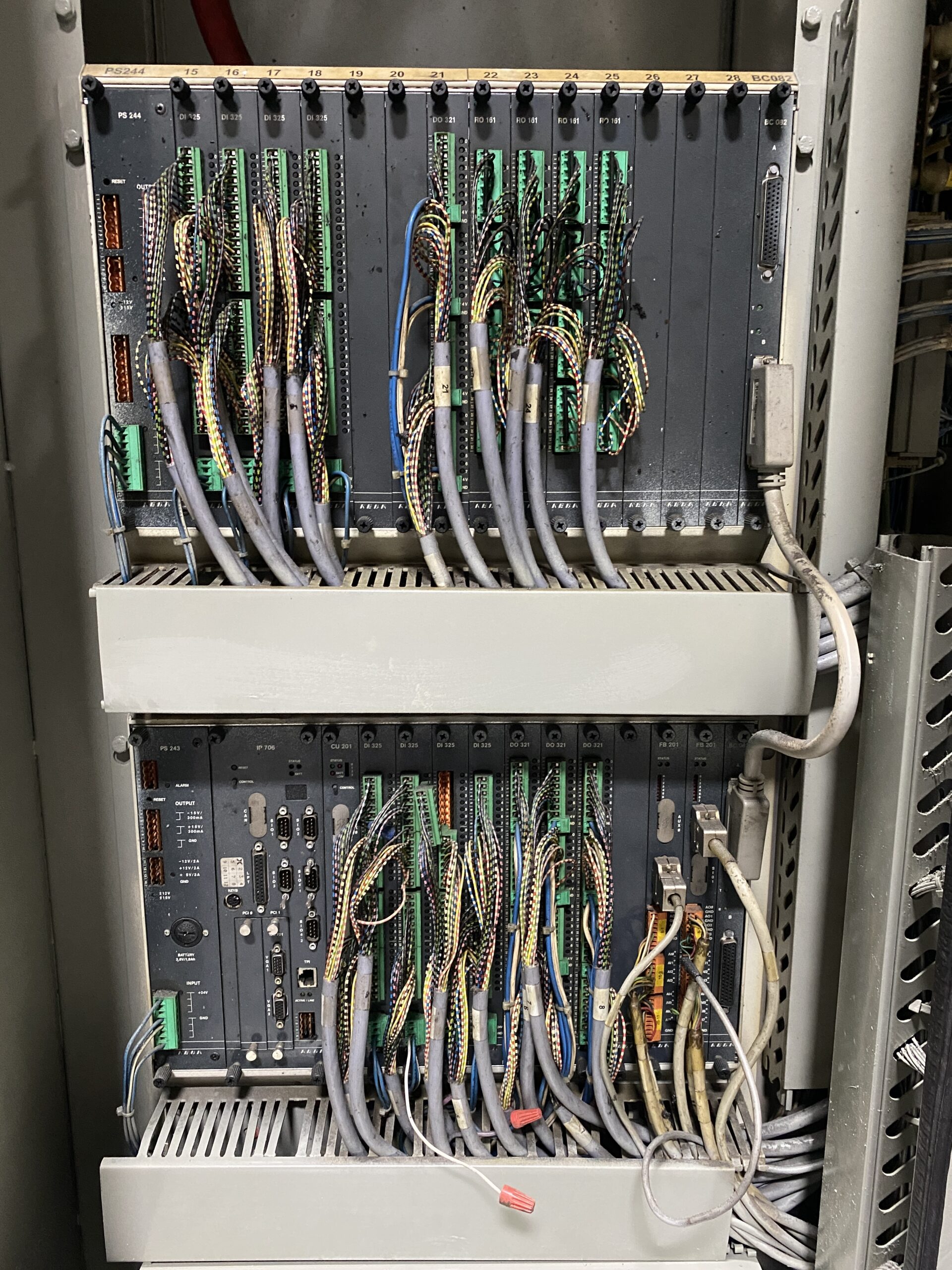

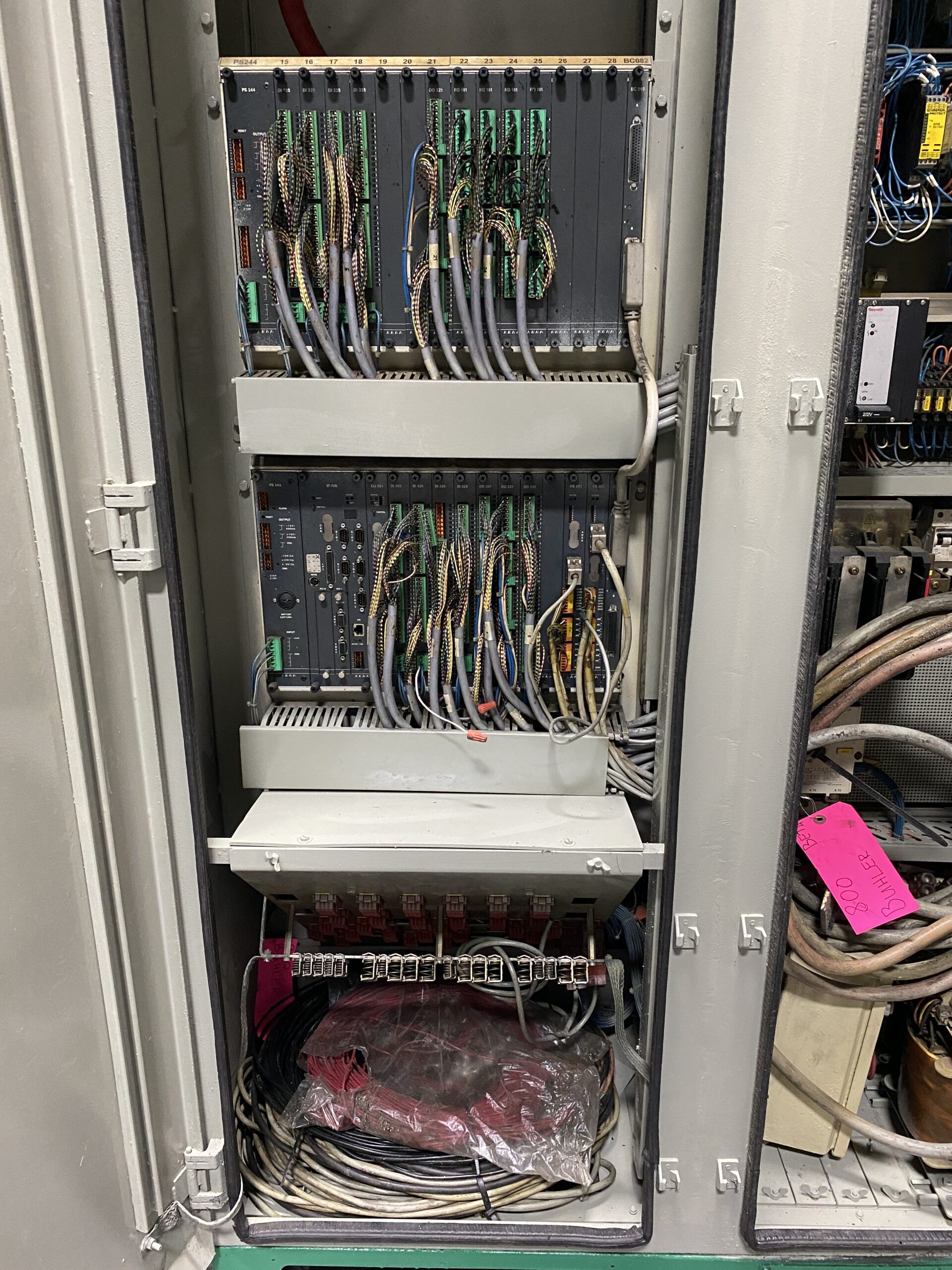

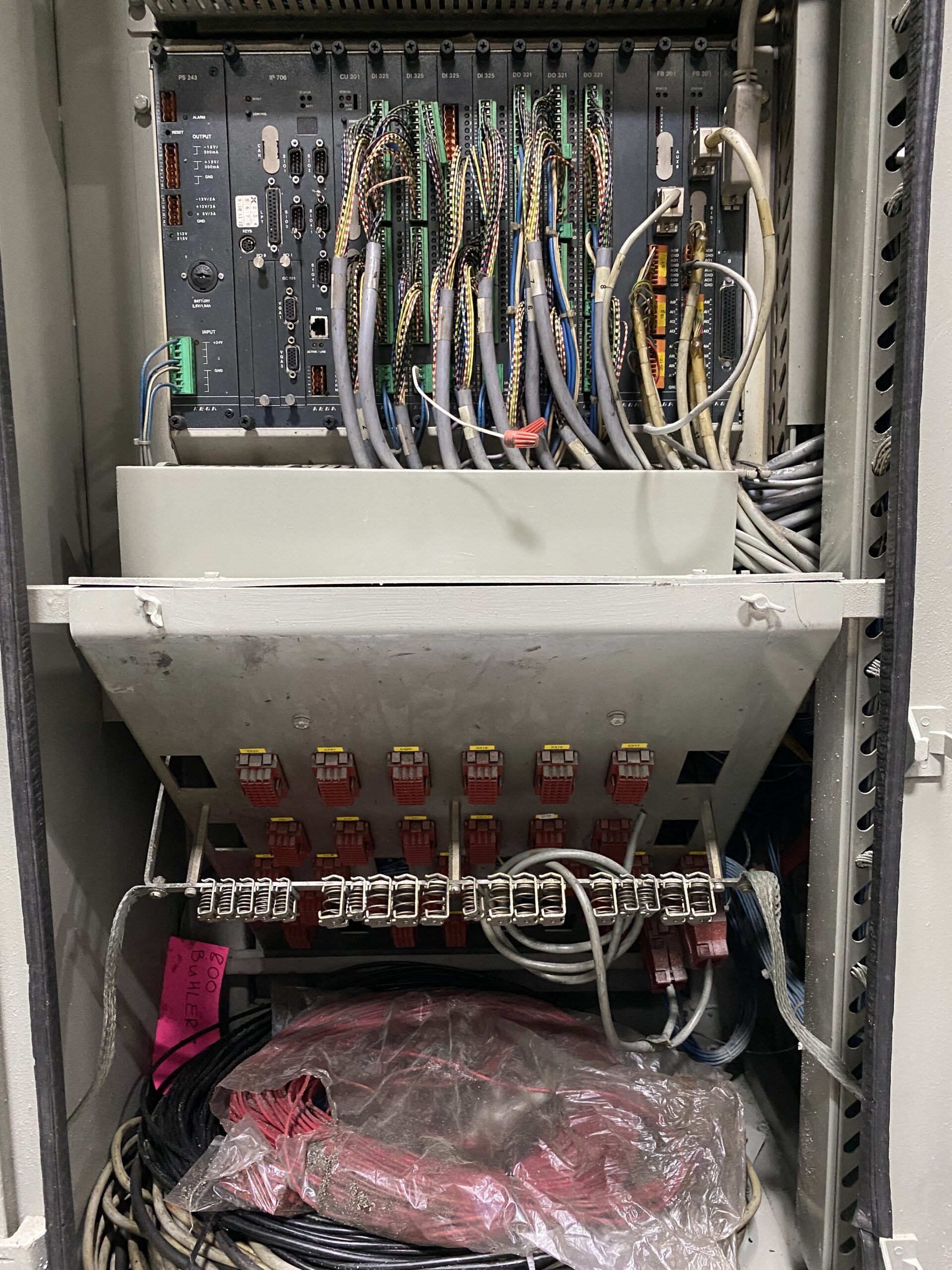

  • PLC Control
  • Sprayer
  • Tie Bar Puller
  • Touch Screen
