Used Fanuc R-2000iA Robot #4453
Description
:2006
:Robots
:Fanuc
:R-2000iA
:6
:342 lbs
:3,527 lbs
:4453
:Beta Warehouse Canada
:
AVAILABLE
:
Request Quote
$16,000
| Specifications | Metric show Imperial | Imperial show Metric |
| Axis | 6 | 6 |
| Reach | 2850 m | 112204.8 inch |
| Payload (aluminum) | 155.1 kg | 342 lbs |
| Repeatability | ±4.064 mm | ±0.16 inch |
| General | ||
| Machine Weight (approx): | 1599.8 kg | 3527 lbs |
| Size (L x W x H): | 208.3 x 167.6 mm | 8.2 x 6.6 x 6.6 inch |
| Rotation | 360 degrees | 360 degrees |
ADDITIONAL SPECIFICATIONS
- Motion Speed: Axis 1 : 90º/s
- Motion Speed: Axis 2 : 100º/s
- Motion Speed: Axis 3 : 75º/s
- Motion Speed: Axis 4 : 140º/s
- Motion Speed: Axis 5 : 110º/s
- Motion Speed: Axis 6 : 140º/s
- Motion Range: Axis 1 : ±180°
- Motion Range: Axis 2 : +72° - 70°
- Motion Range: Axis 3 : +30° - 105°
- Motion Range: Axis 4 : ±300°
- Motion Range: Axis 5 : ±130°
- Motion Range: Axis 6 : ±360°
- Robot Applications: Spot welding, Press tending, Material handling, Machine tending and Palletizing
CONTROL
AVAILABILITY AND TERMS
- Machine is ready for inspection and/or shipping
- Technical data without obligation – subject to prior sale
- Specifications and location are subject to change without notice
This Robot model R-2000iA is manufactured by Fanuc. Features include:

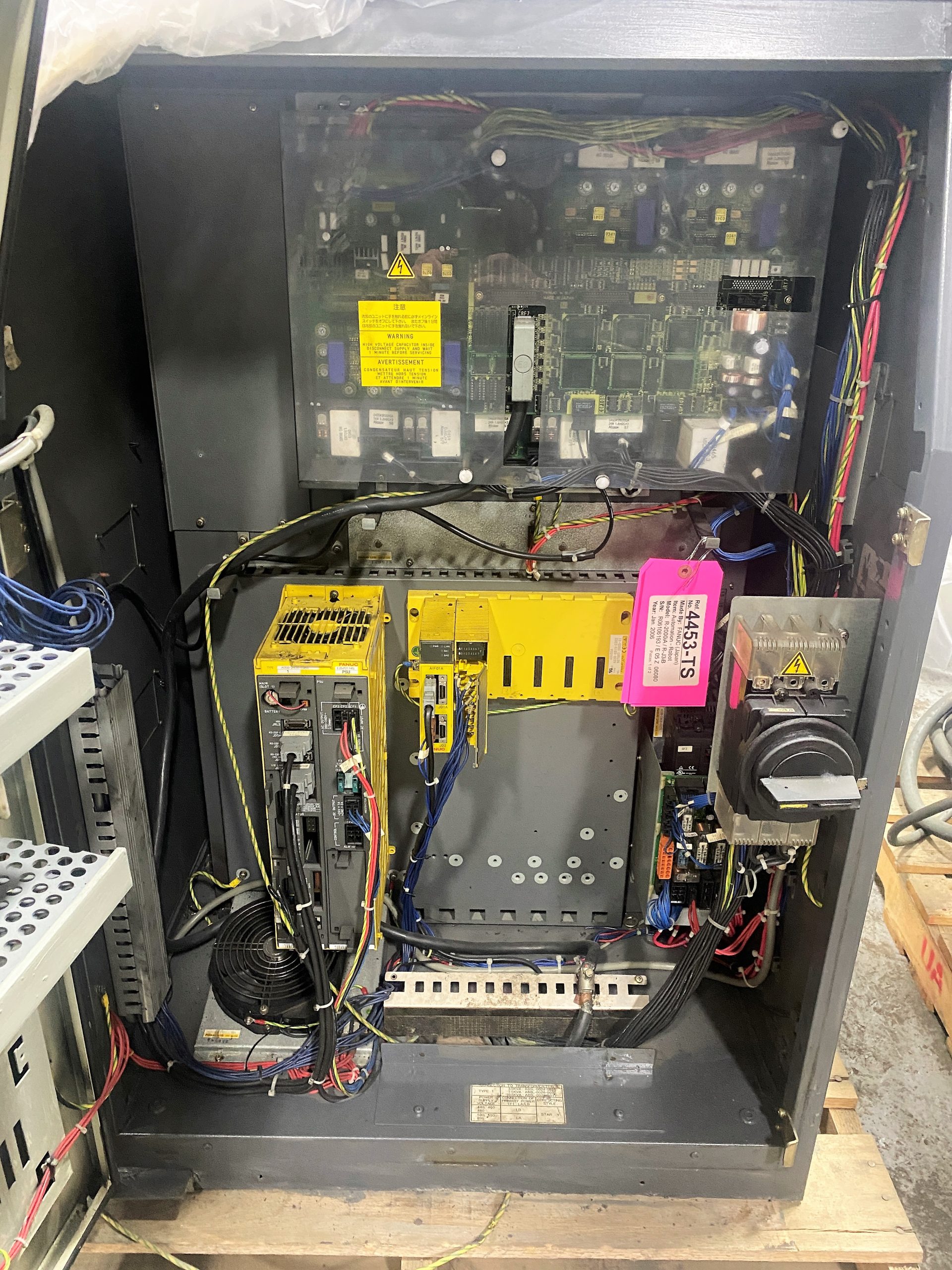

Control Cabinet, High motion speeds, High payload capacity, Ideal for automotive spot welding and material handling, Large work envelope.
This machine reference #4453 Robot is currently located at our Beta Die Casting Equipment warehouse and is ready for inspection and shipping.
