Used Fanuc R-2000iA Robot #4455

Description

:2005
:Robots
:Fanuc
:R-2000iA
:6
:342 lbs
:3,527 lbs
:4455
:Used
:Beta Warehouse Canada
:
AVAILABLE
:
$16,000
Request Quote
SpecificationsMetric show ImperialImperial  show Metric
Axis 6 6
Reach 2850 m 112204.8 inch
Payload (aluminum) 155.1 kg 342 lbs
Repeatability ±4.064 mm ±0.16 inch
General
Machine Weight (approx): 1599.8 kg 3527 lbs
Size (L x W x H): 208.3 x 167.6 mm 8.2 x 6.6 x 6.6 inch
Rotation 360 degrees 360 degrees
ADDITIONAL SPECIFICATIONS
  • Motion Speed: Axis 1 :  90º/s
  • Motion Speed: Axis 2 :  100º/s
  • Motion Speed: Axis 3 :  75º/s
  • Motion Speed: Axis 4 :  140º/s
  • Motion Speed: Axis 5 :  110º/s
  • Motion Speed: Axis 6 :  140º/s
  • Motion Range: Axis 1 :  ±180°
  • Motion Range: Axis 2 :  +72° - 70°
  • Motion Range: Axis 3 :  +30° - 105°
  • Motion Range: Axis 4 :  ±300°
  • Motion Range: Axis 5 :  ±130°
  • Motion Range: Axis 6 :  ±360°
  • Robot Applications: Spot welding, Press tending, Material handling, Machine tending and Palletizing
CONTROL
  • R-J3iB

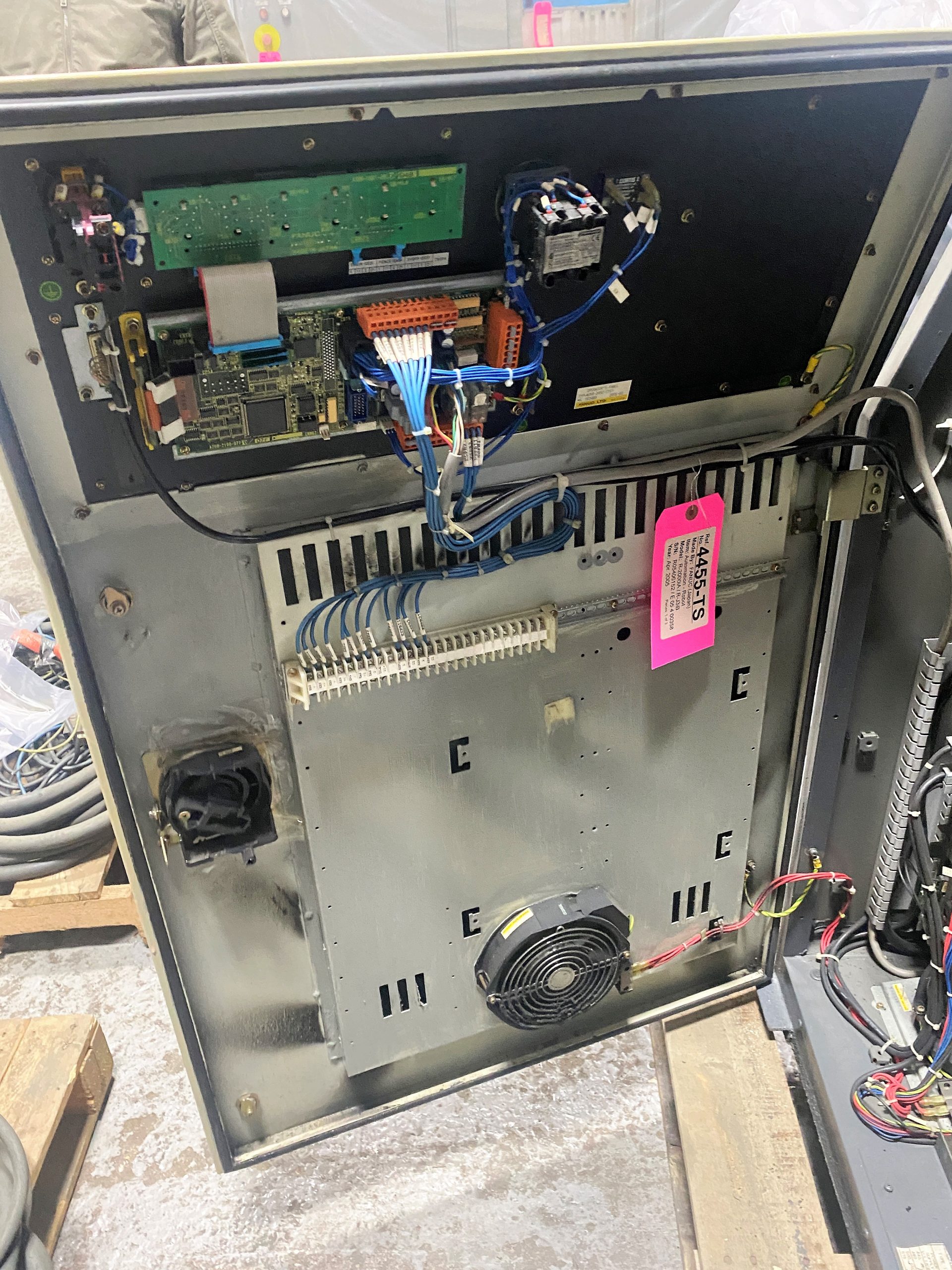

  • Control Cabinet
  • High motion speeds
  • High payload capacity
  • Ideal for automotive spot welding and material handling
  • Large work envelope
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice



This Robot model R-2000iA is manufactured by Fanuc. Features include:

Control Cabinet, High motion speeds, High payload capacity, Ideal for automotive spot welding and material handling, Large work envelope.

This machine reference #4455 Robot is currently located at our Beta Die Casting Equipment warehouse and is ready for inspection and shipping.
