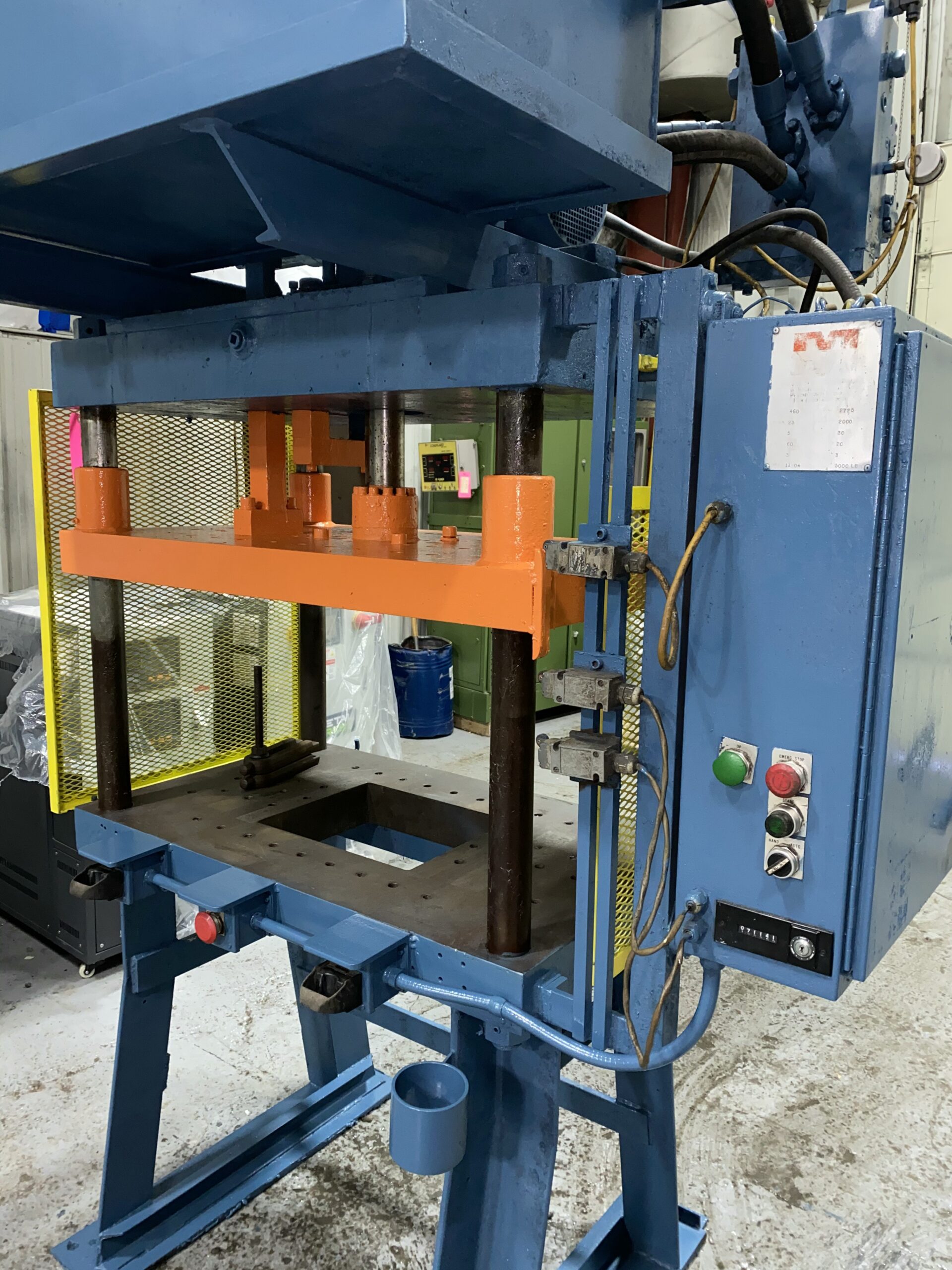

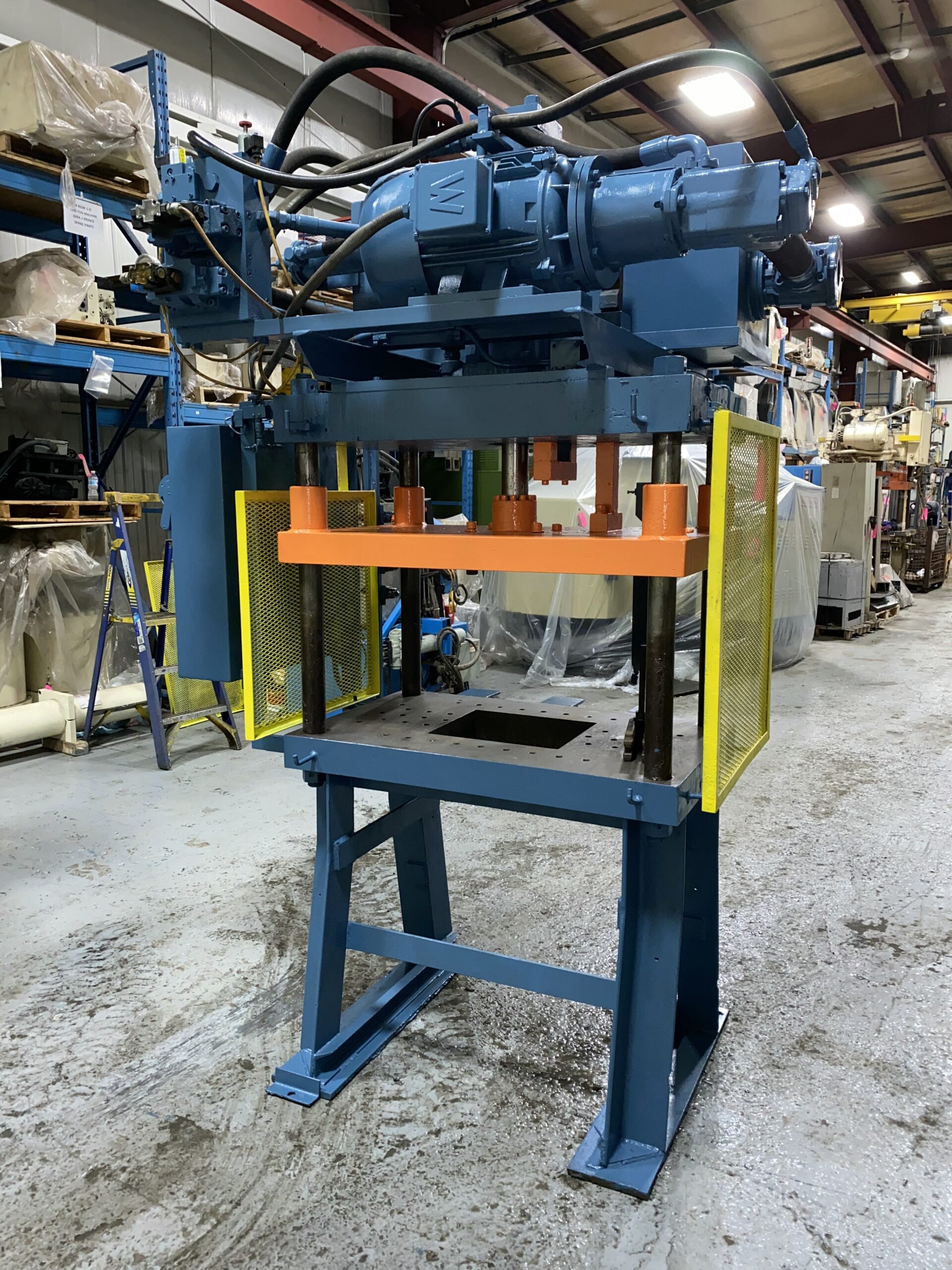

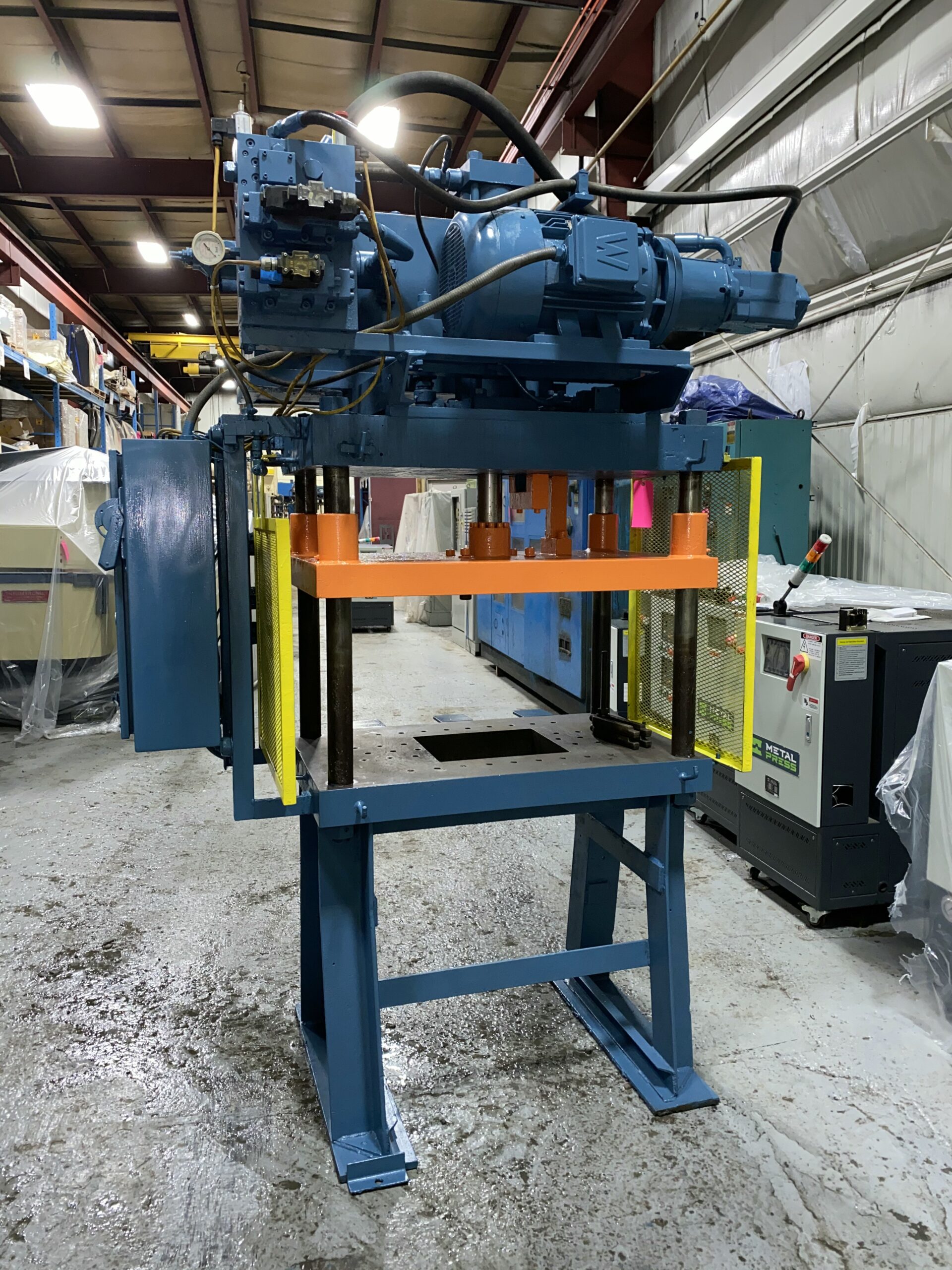

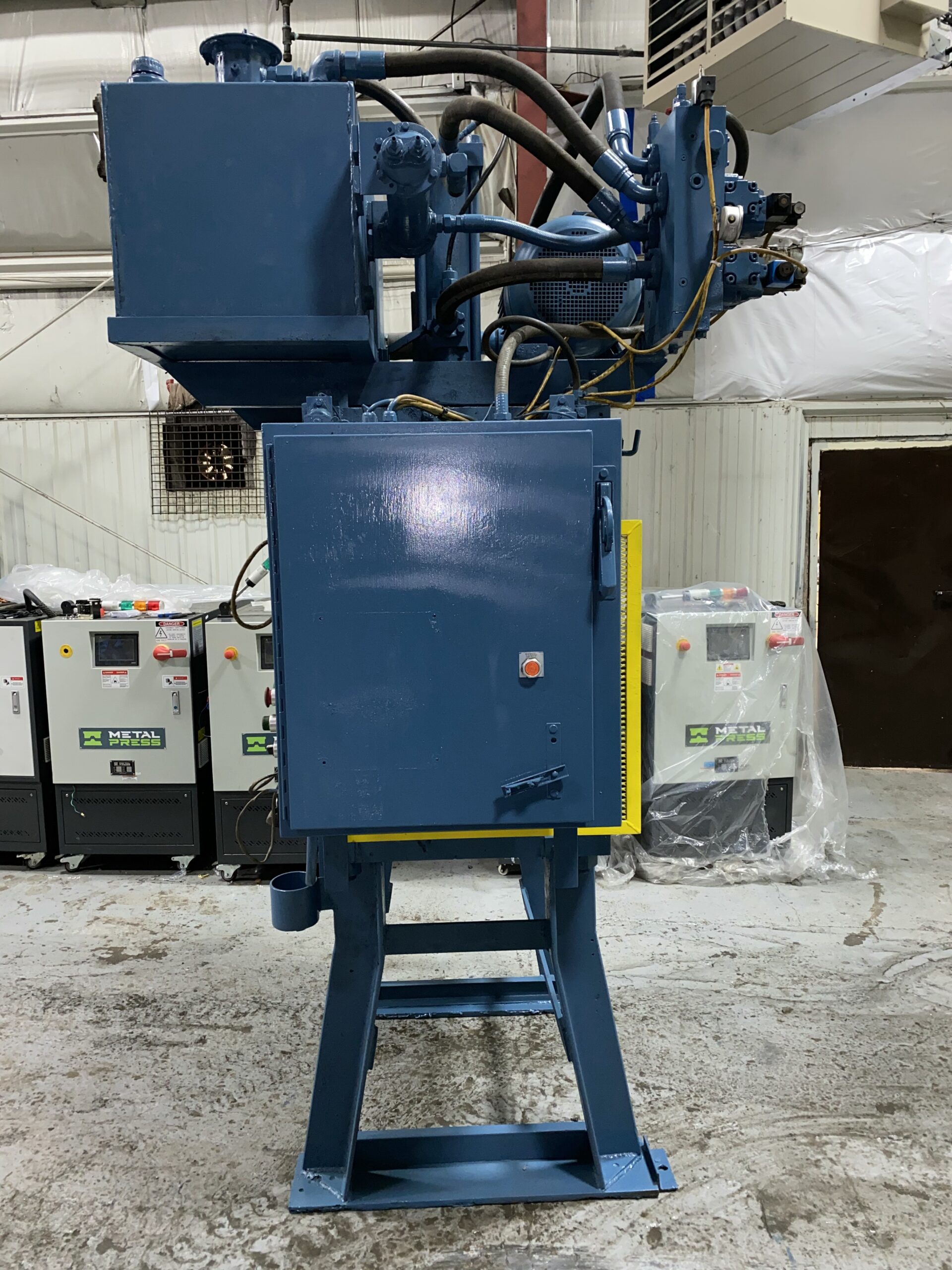

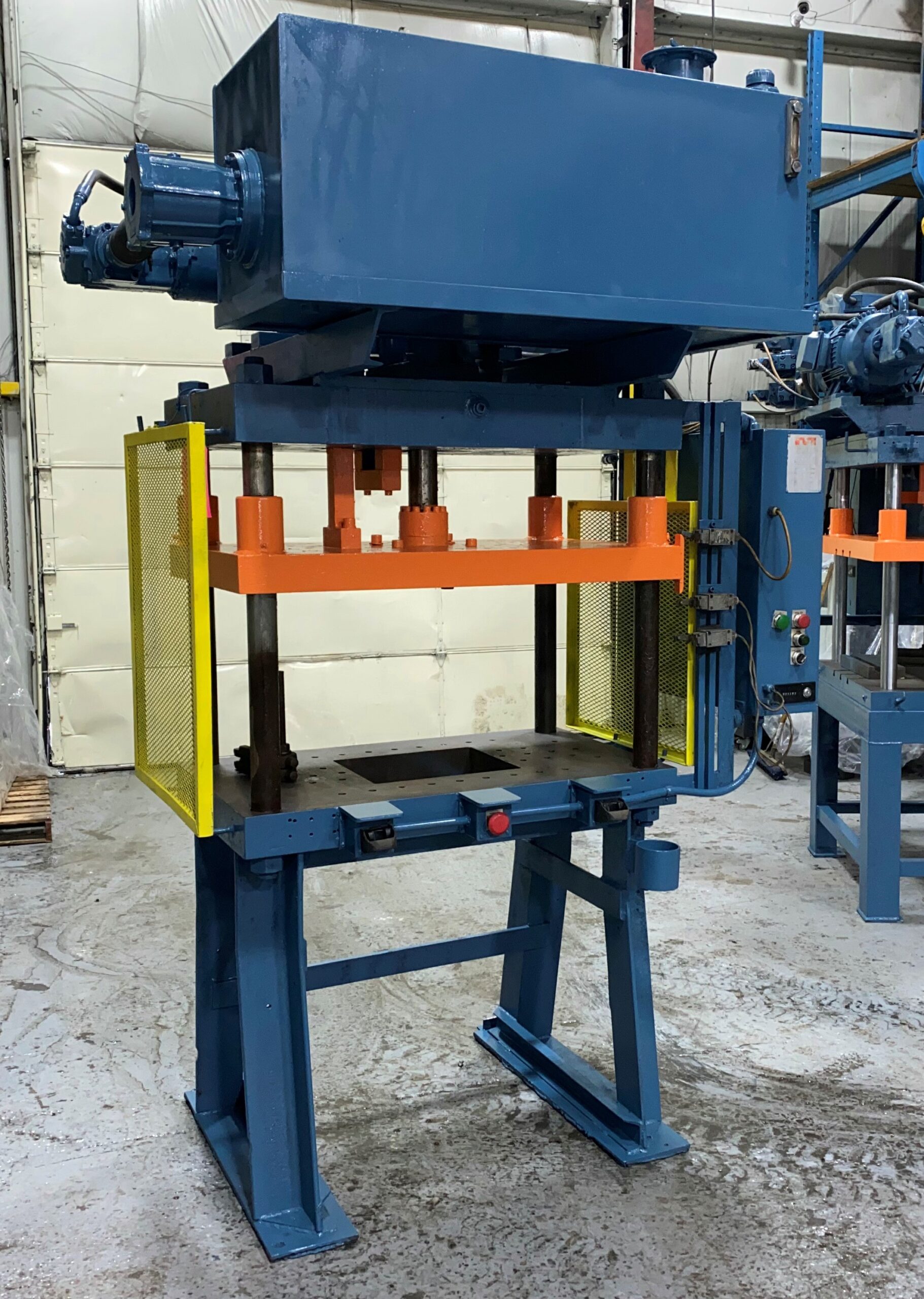

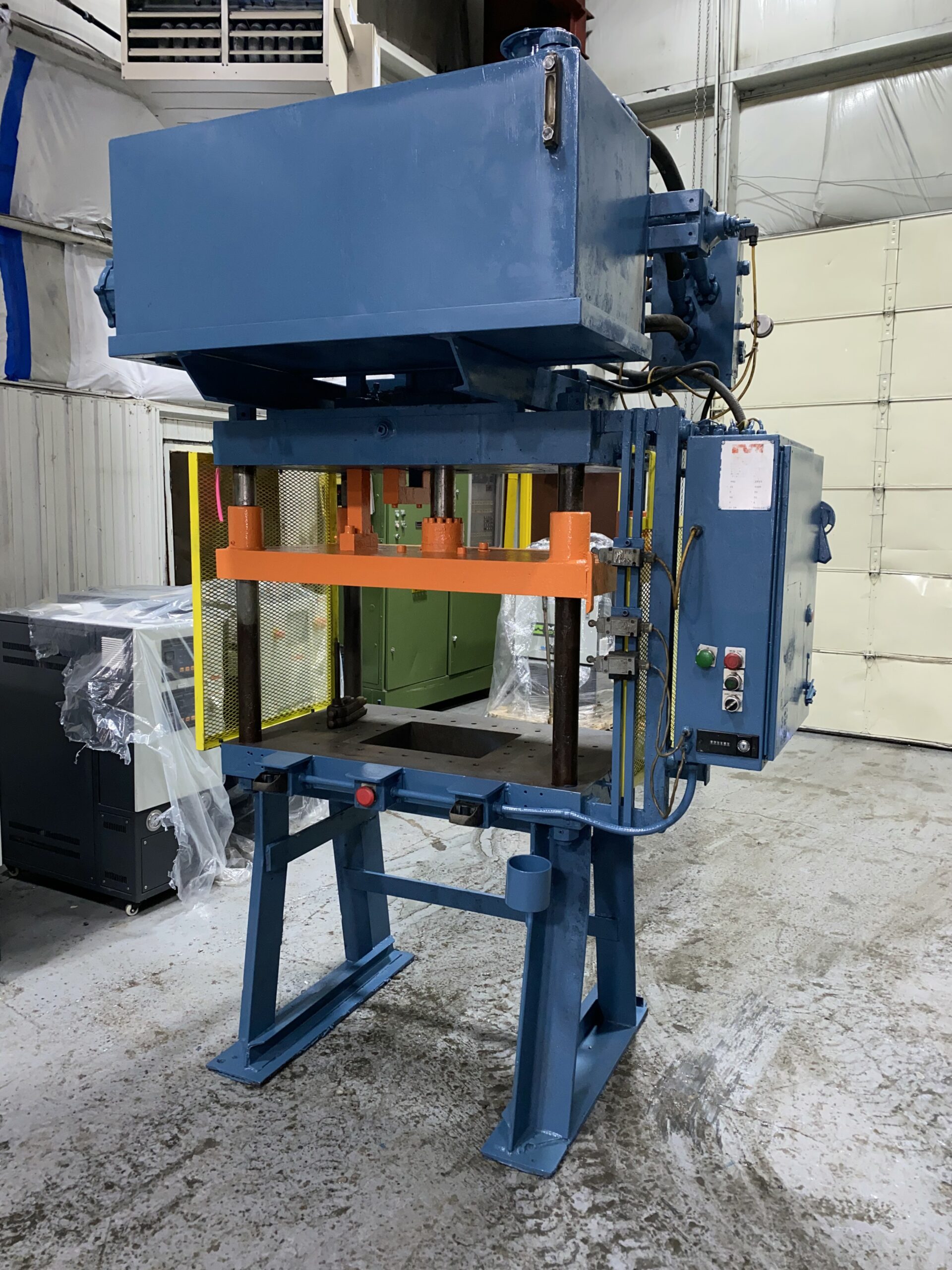

Used Metal Mechanics 30 Ton Trim Press Die Casting #4813

Description

:Trim Press
:Metal Mechanics
:30 Tons
:20.5" x 34"
:4813
:Beta Warehouse Canada
:
AVAILABLE
Request Quote
SpecificationsMetric show ImperialImperial  show Metric
Pressing Force 27.2 tons 30 tons
Distance Between Tie Bars (D x W) 520.7 x 863.6 mm 20.5 x 34 inch
Platen (D x W) 711.2 x 1073.2 mm 28 x 42.25 inch
Stroke 304.8 mm 12 inch
General
Machine Weight (approx): 2268 kg 5000 lbs
ADDITIONAL SPECIFICATIONS
  • Number of Columns: 4 / 4
  • Column Diameter: 63.5 mm / 2.5 inches
  • Daylight: 584.2 mm / 23 inches
  • Shut Height: 279.4 mm / 11 inches
  • Cut-Out in Bed (L/R x F/B): 787.4 x 400.05 mm / 31 x 15.750 inches
CONTROL
  • Air Safety Ratchet Device

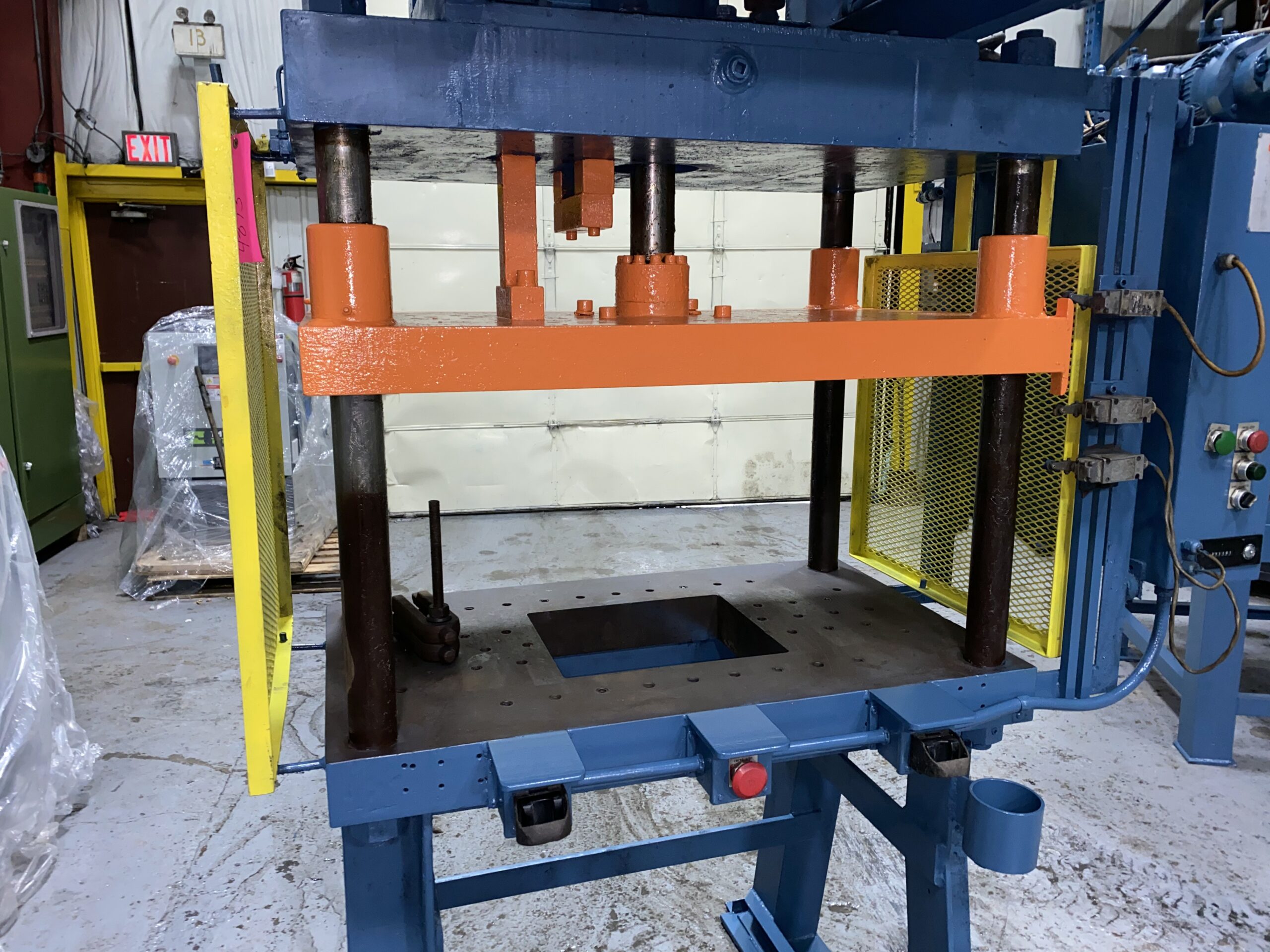

  • Drilled & Taped Bed, T-Slotted Moving Platten

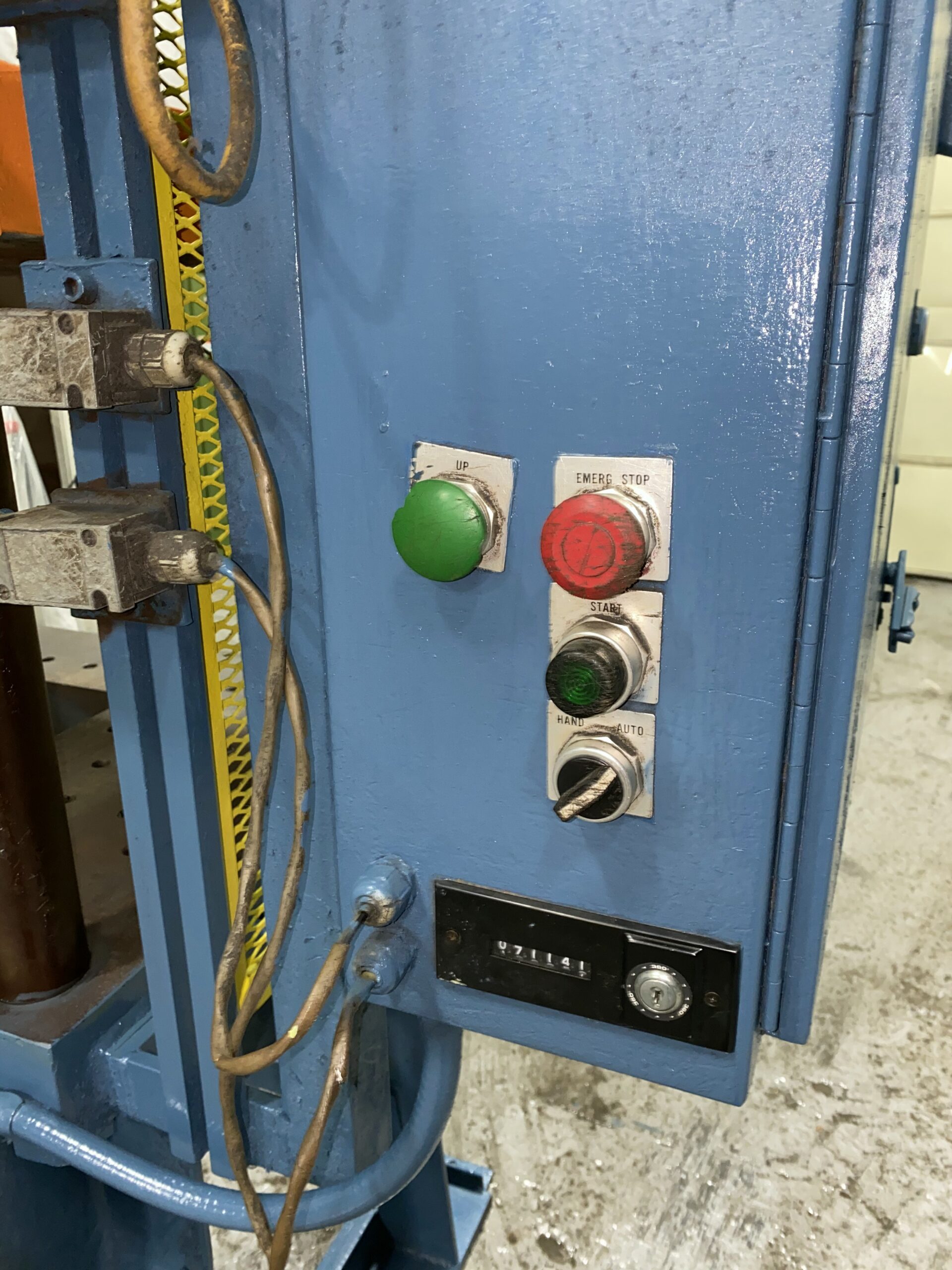

  • Dual-Button Operation with Zero-Force Proximity Switch Control

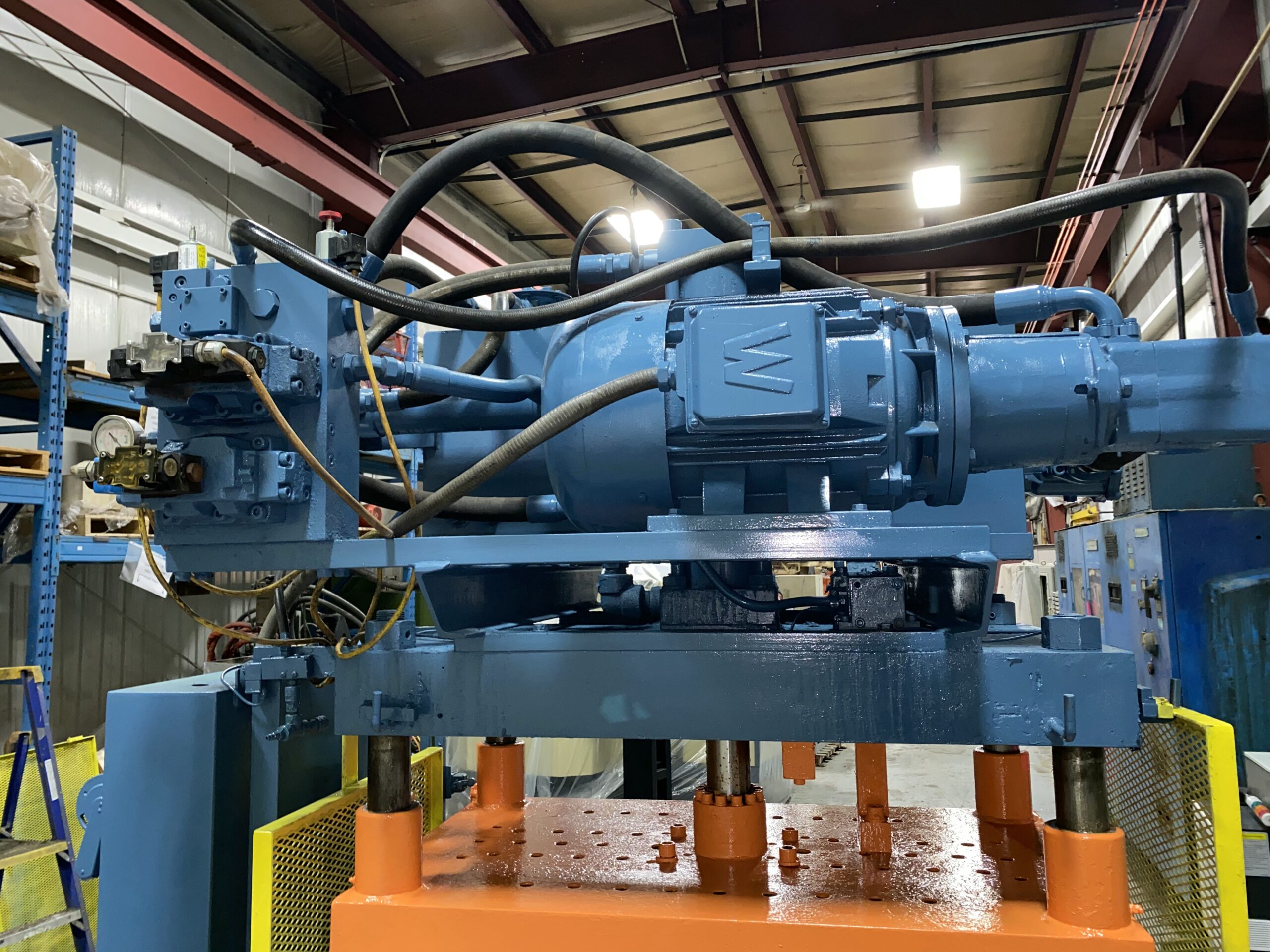

  • Top Mounted Hydraulics

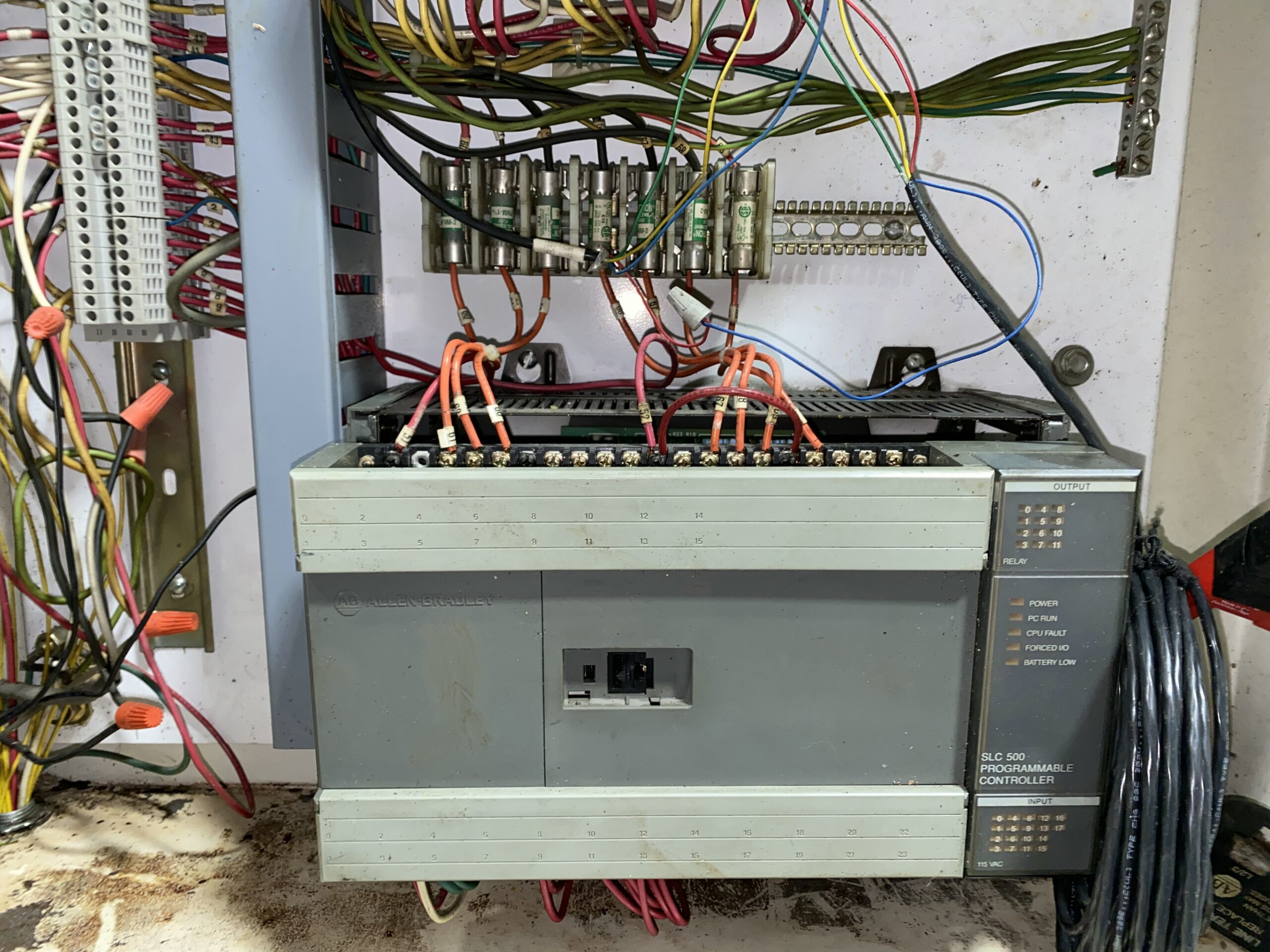

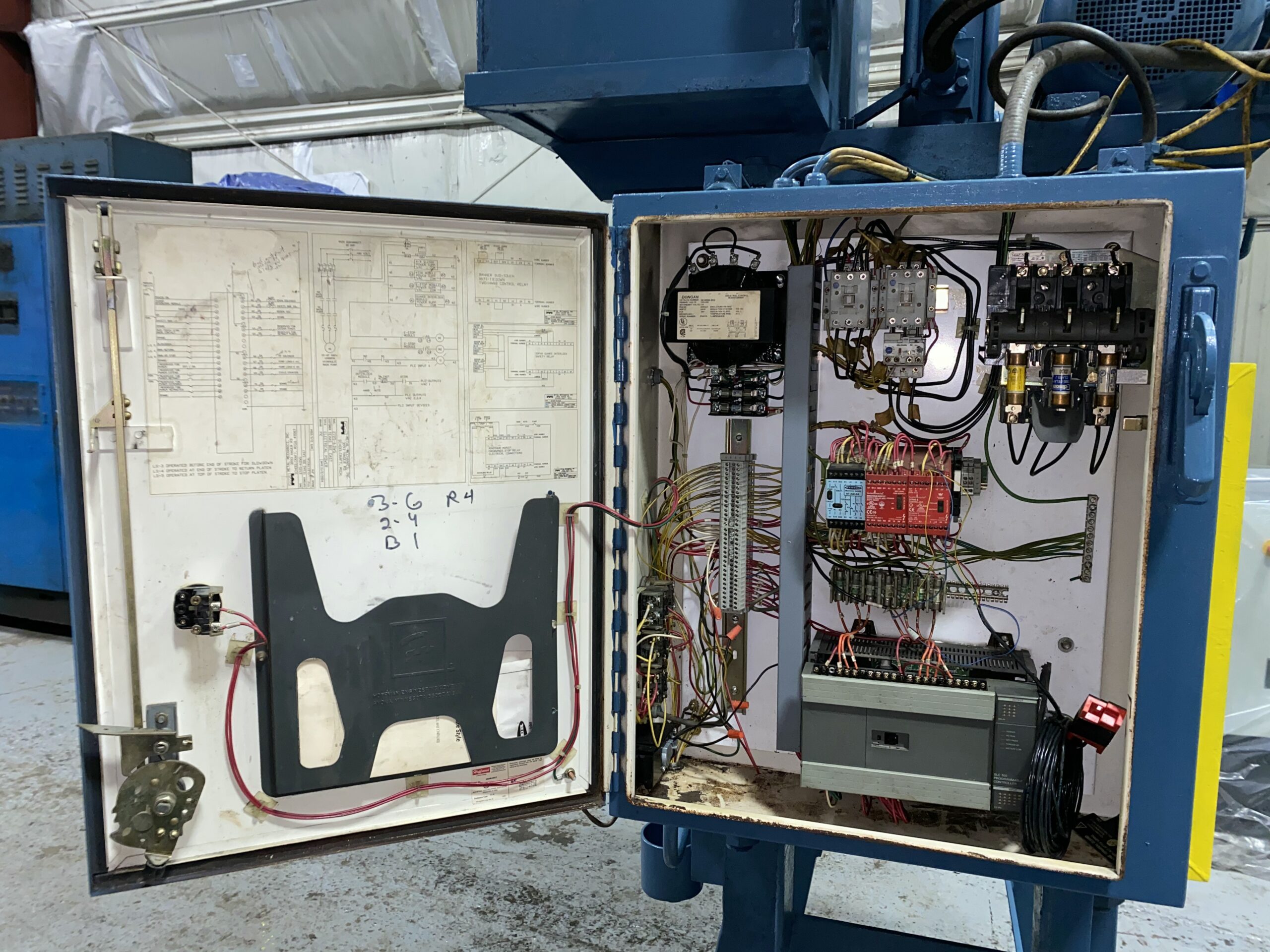

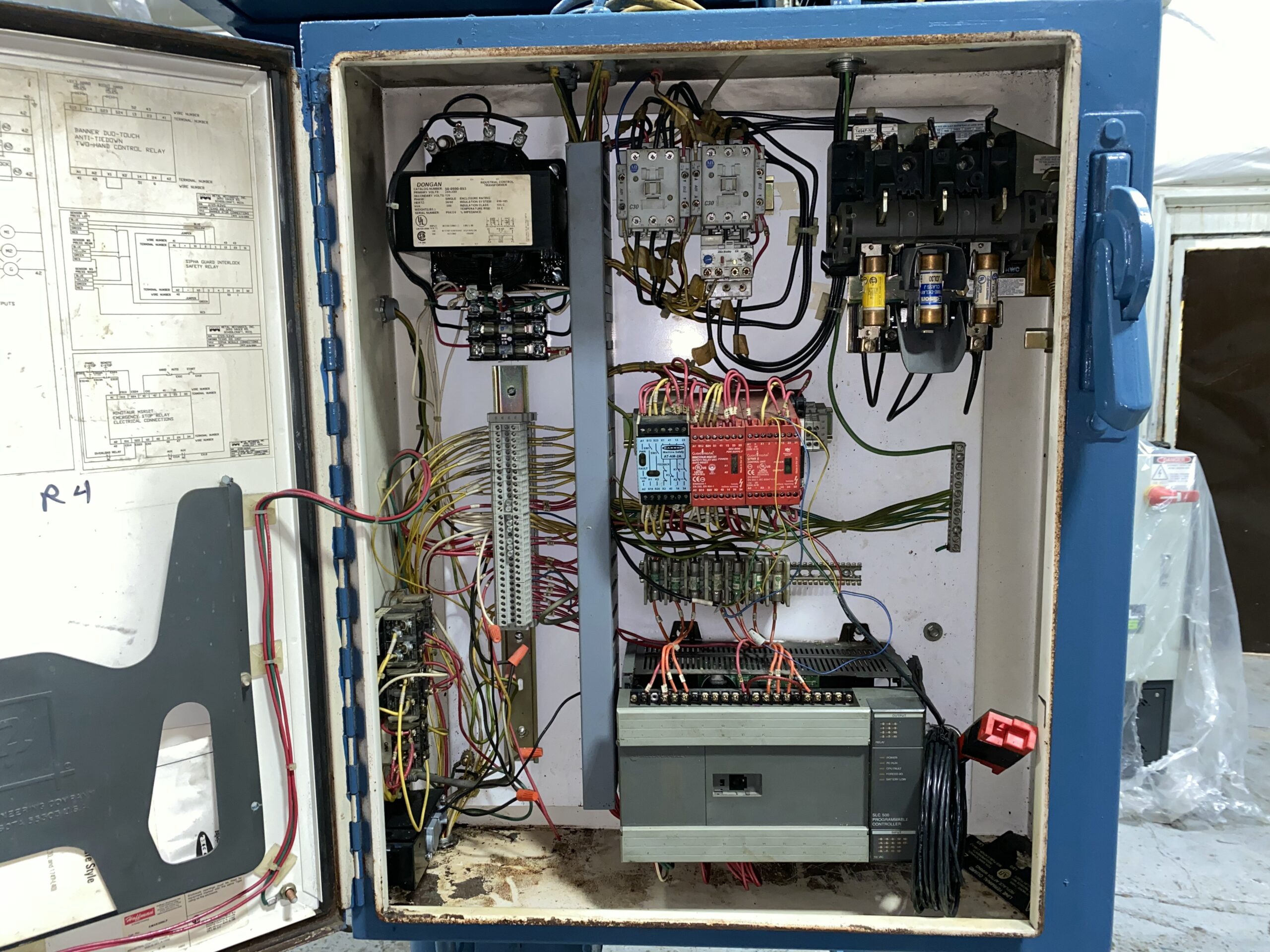

  • Allen Bradley MicroLogix1400 Solid State Controls
  • Mechanical Ejection System
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice

This Trim Press 30 Ton is manufactured by Metal Mechanics.

This Trimming Press machine reference #4813 Trim Press is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping.
