Used Metal Mechanics 30 Ton Trim Press Die Casting #4818
|Specifications||Metric show Imperial||Imperial show Metric|
|Pressing Force||27.2 tons||30 tons|
|Distance Between Tie Bars (D x W)||673.1 x 838.2 mm||26.5" x 33" inch|
|Platen (D x W)||914.4 x 1295.4 mm||36 x 51 inch|
|Stroke||355.6 mm||14 inch|
|Machine Weight (approx):||2494.8 kg||5500 lbs|
- Number of Columns: 4 / 4
- Column Diameter: 63.5 mm / 2.5 inches
- Daylight: 571.5 mm / 22.5 inches
- Shut Height: 215.9 mm / 8.5 inches
- Cut-Out in Bed (L/R x F/B): 457.2 x 323.85 mm / 18 x 12.750 inches
- Air Safety Ratchet Device

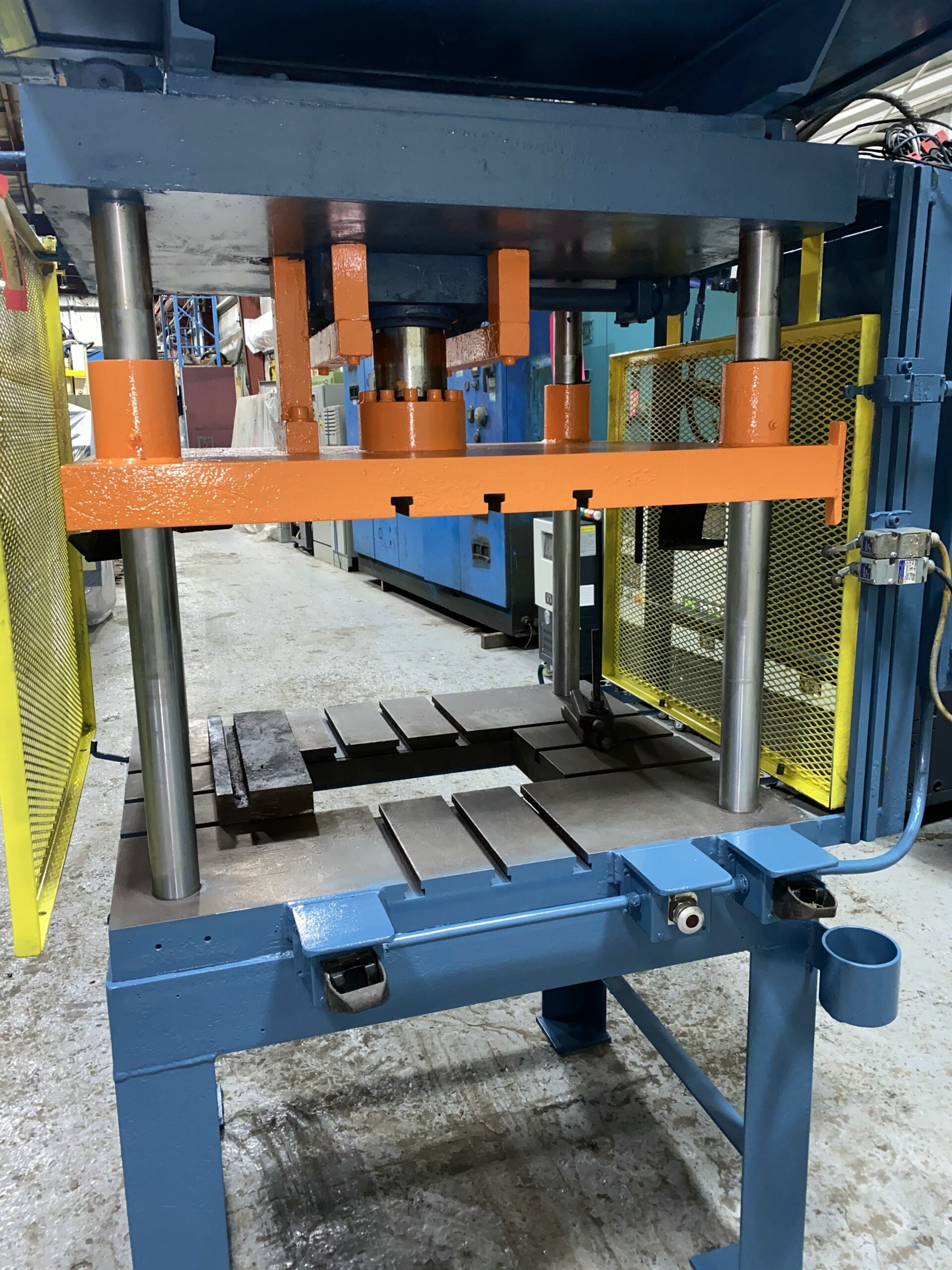

- T-Slotted Bed & Moving Platten,Mechanical Ejection System

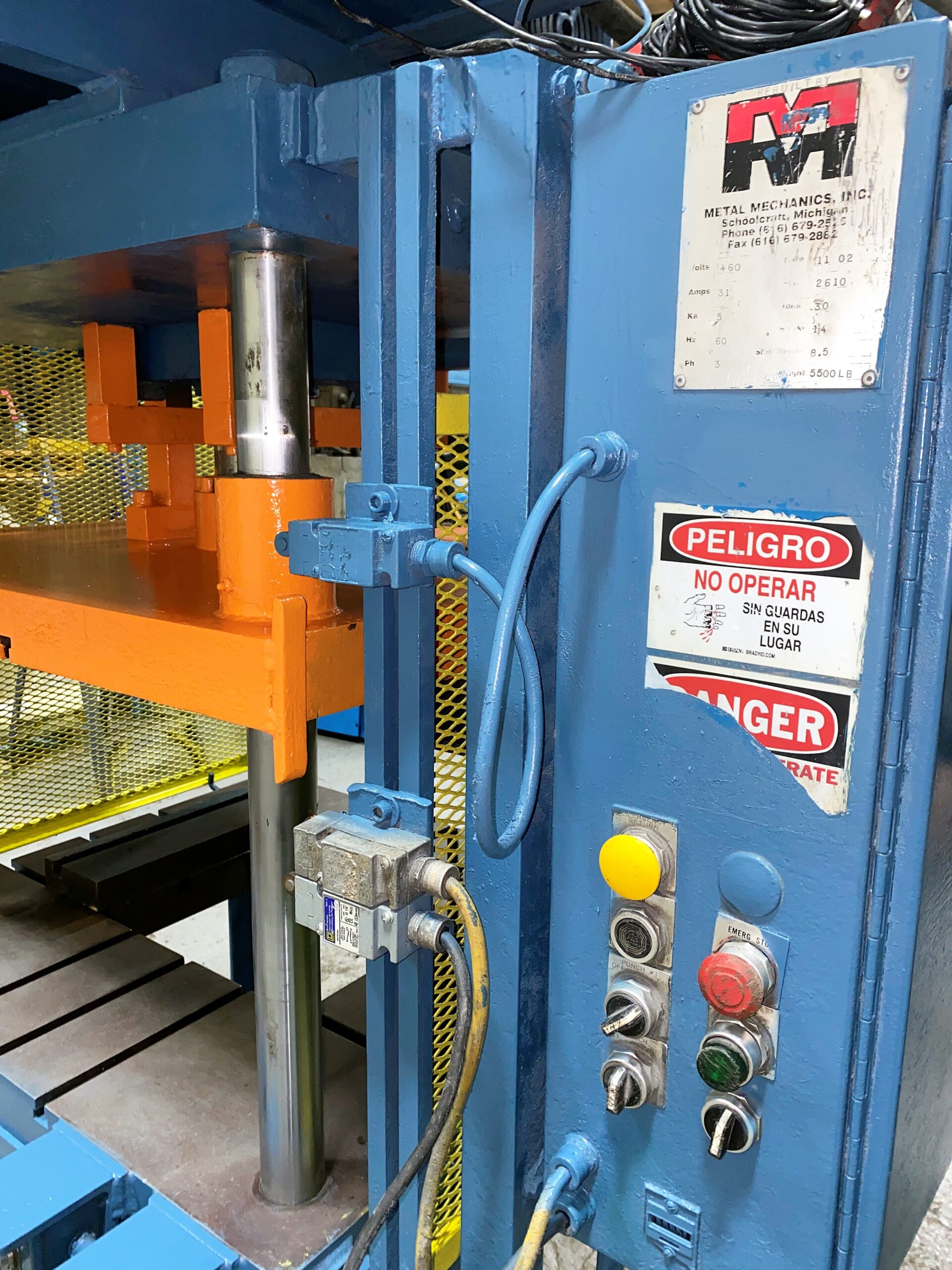

- Dual-Button Operation with Zero-Force Proximity Switch Control

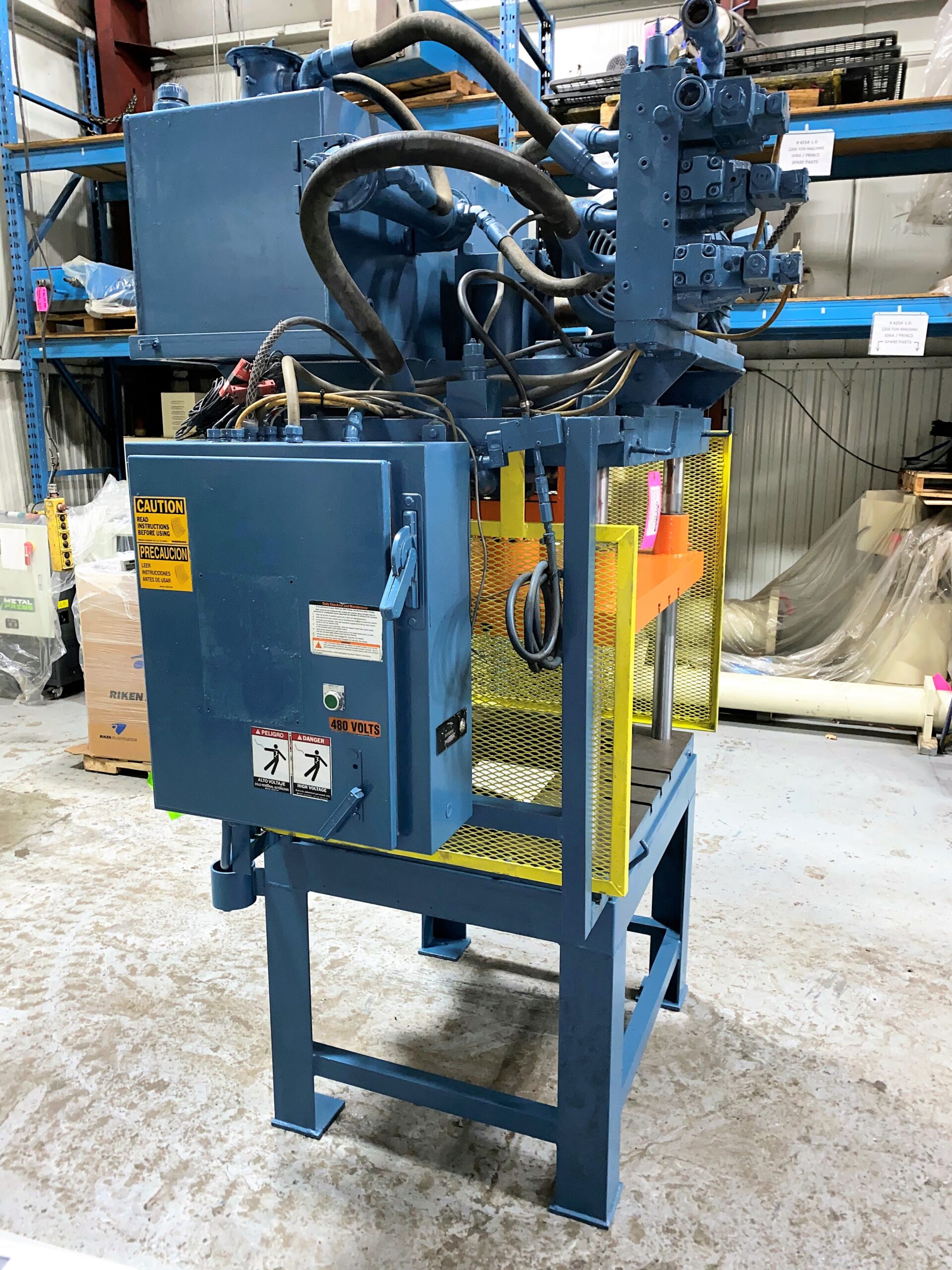

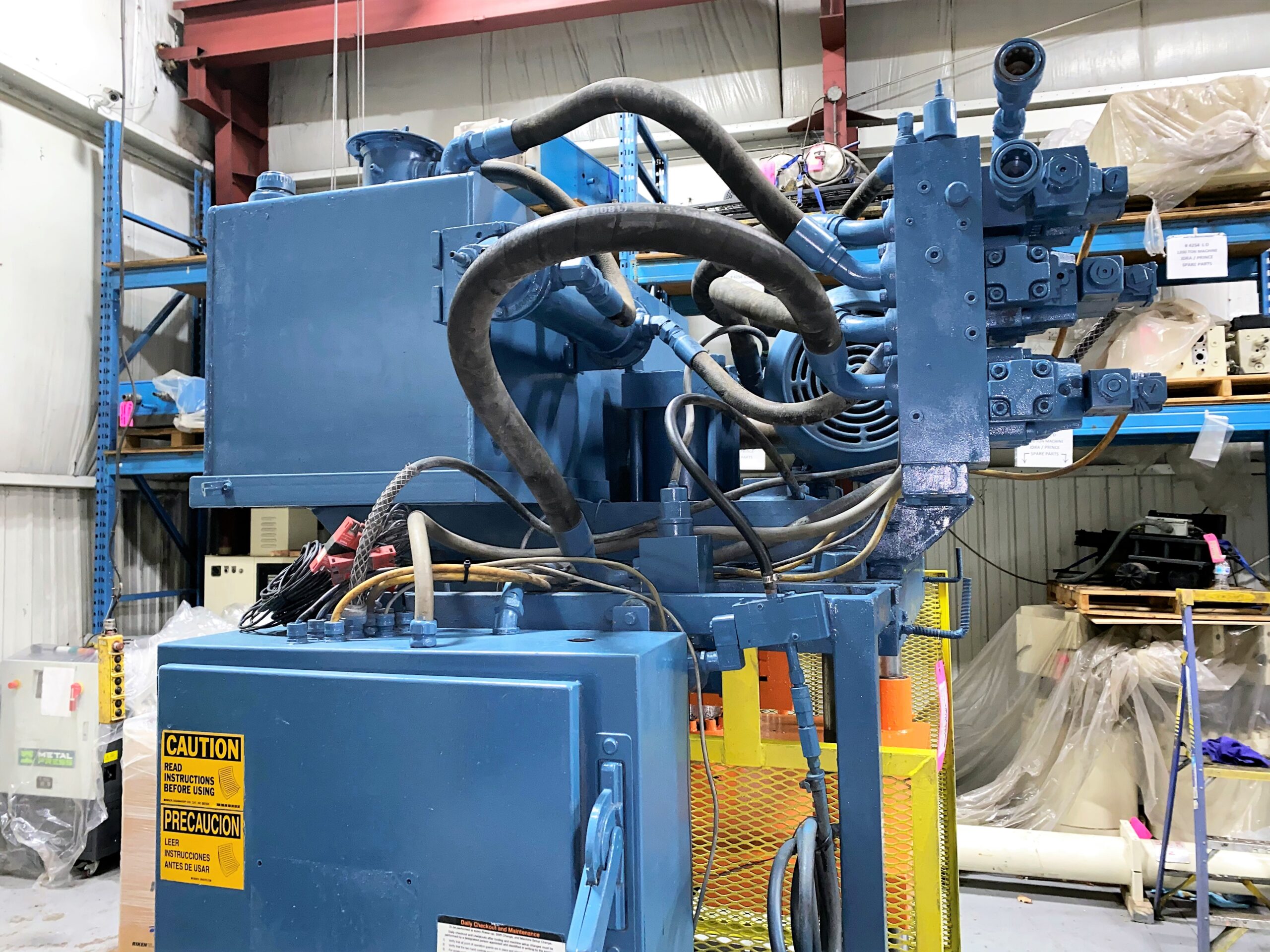

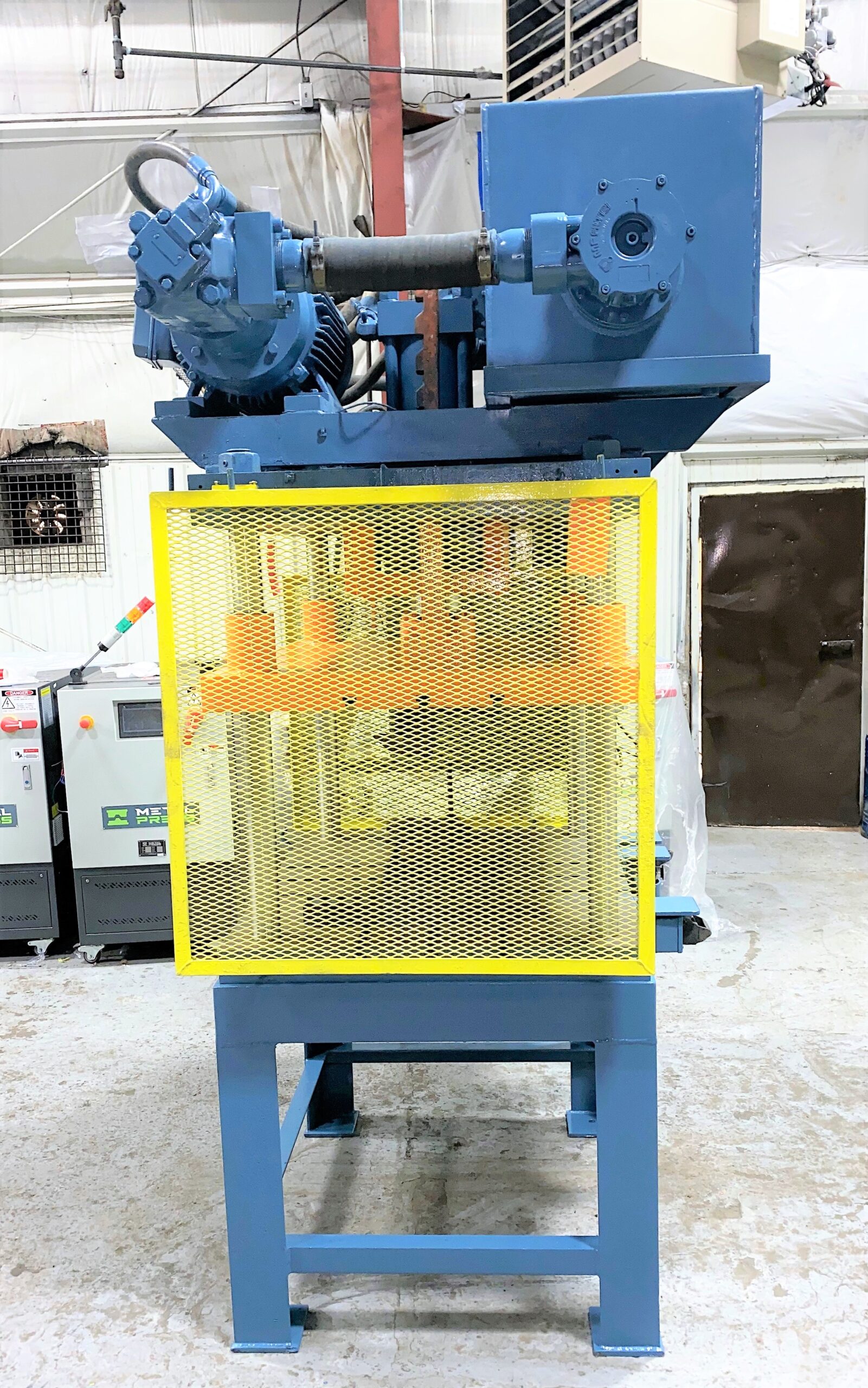

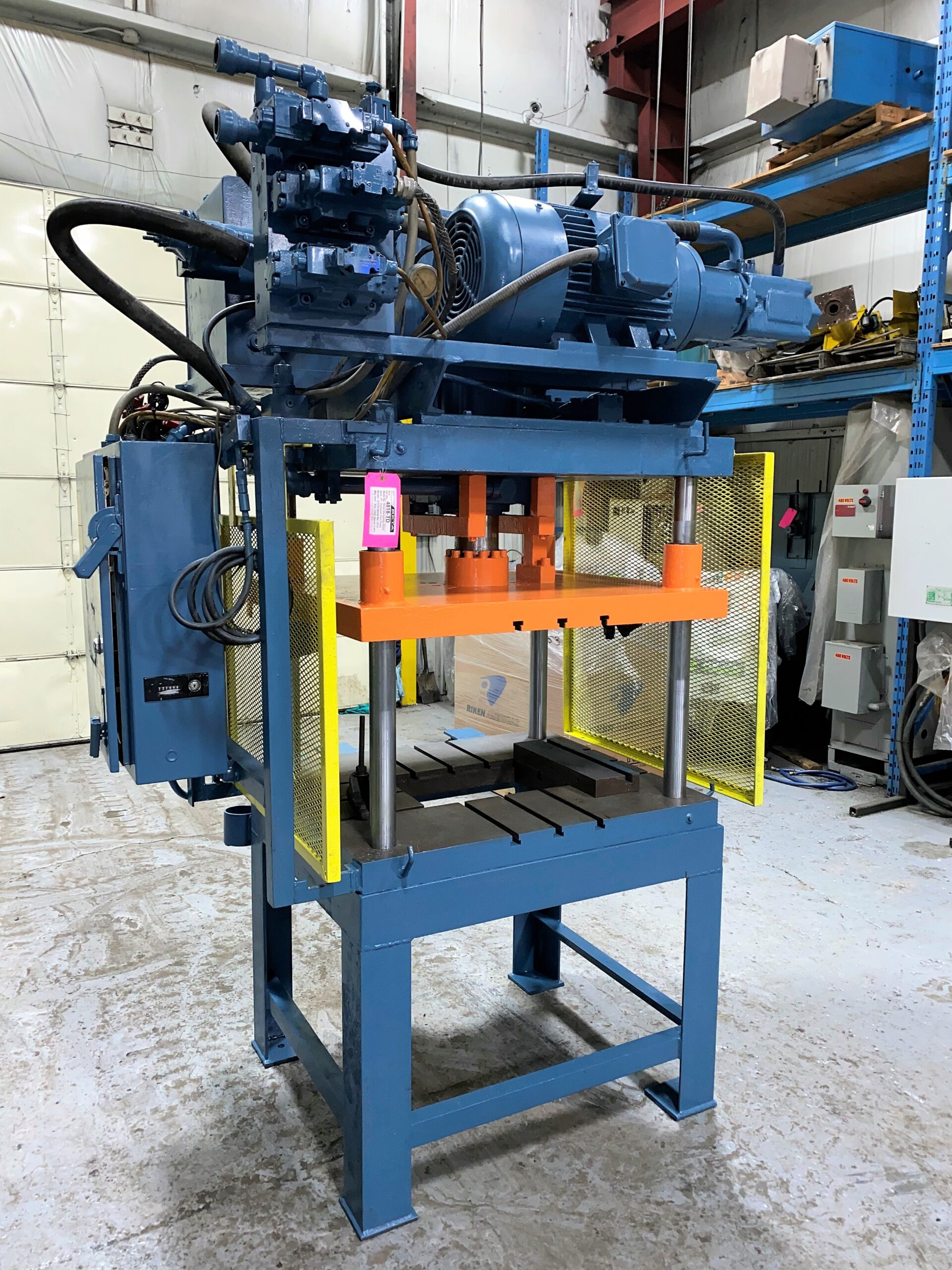

- Top Mounted Hydraulics

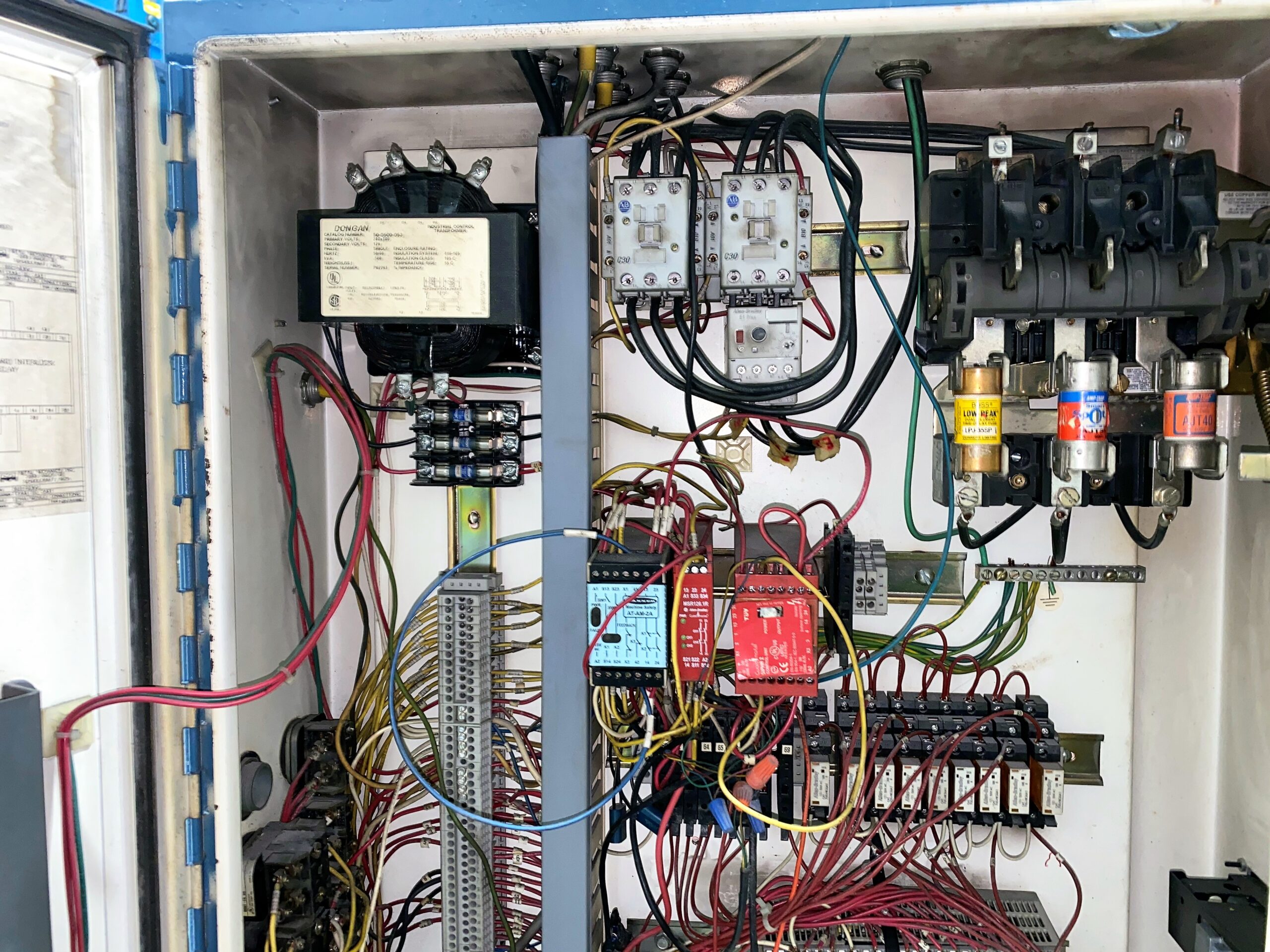

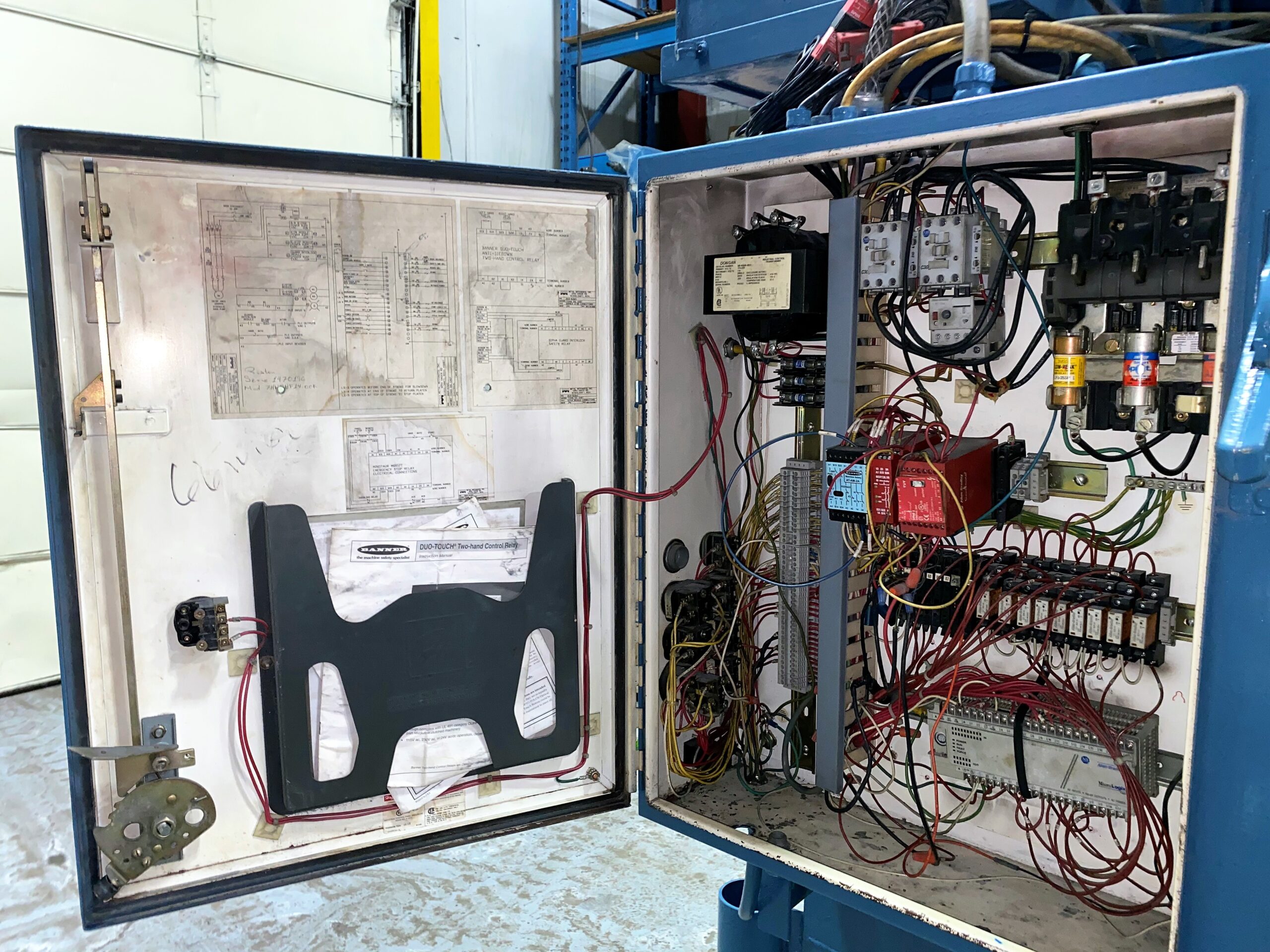

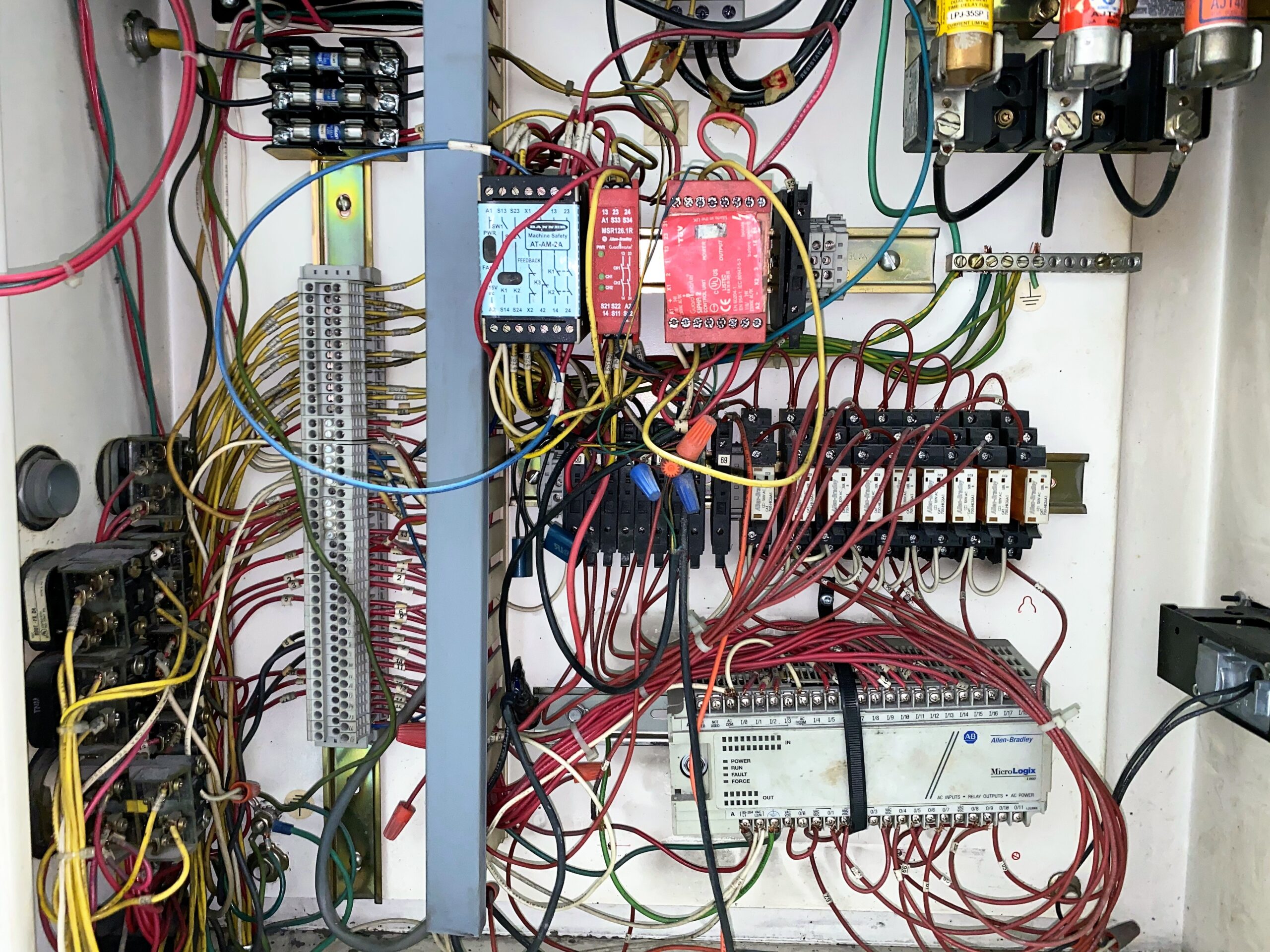

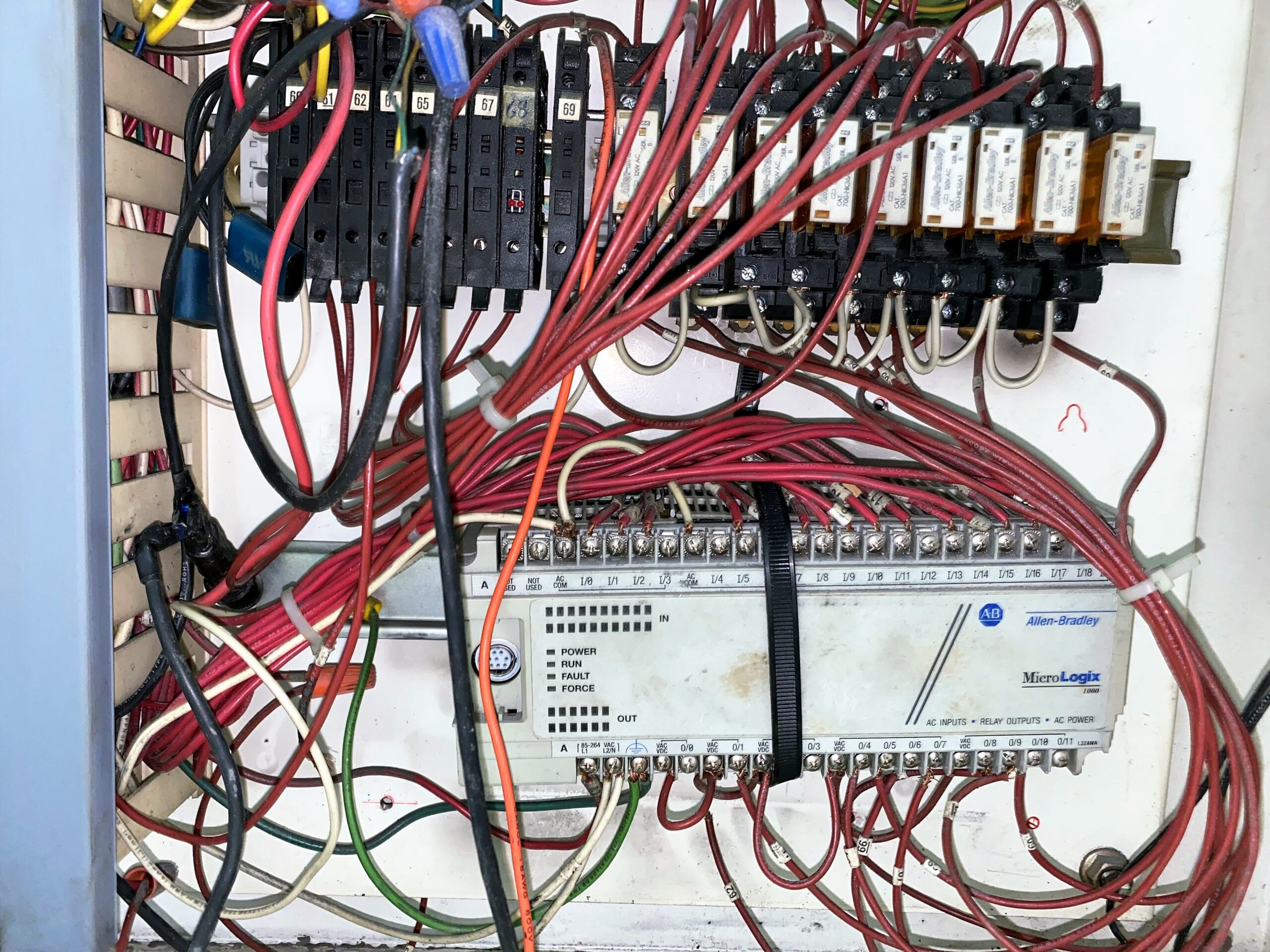

- Allen Bradley MicroLogix 1000 Sold State Control
- One (1) Auxiliary Core Circuit
- Machine is ready for inspection and/or shipping
- Technical data without obligation – subject to prior sale
- Specifications and location are subject to change without notice

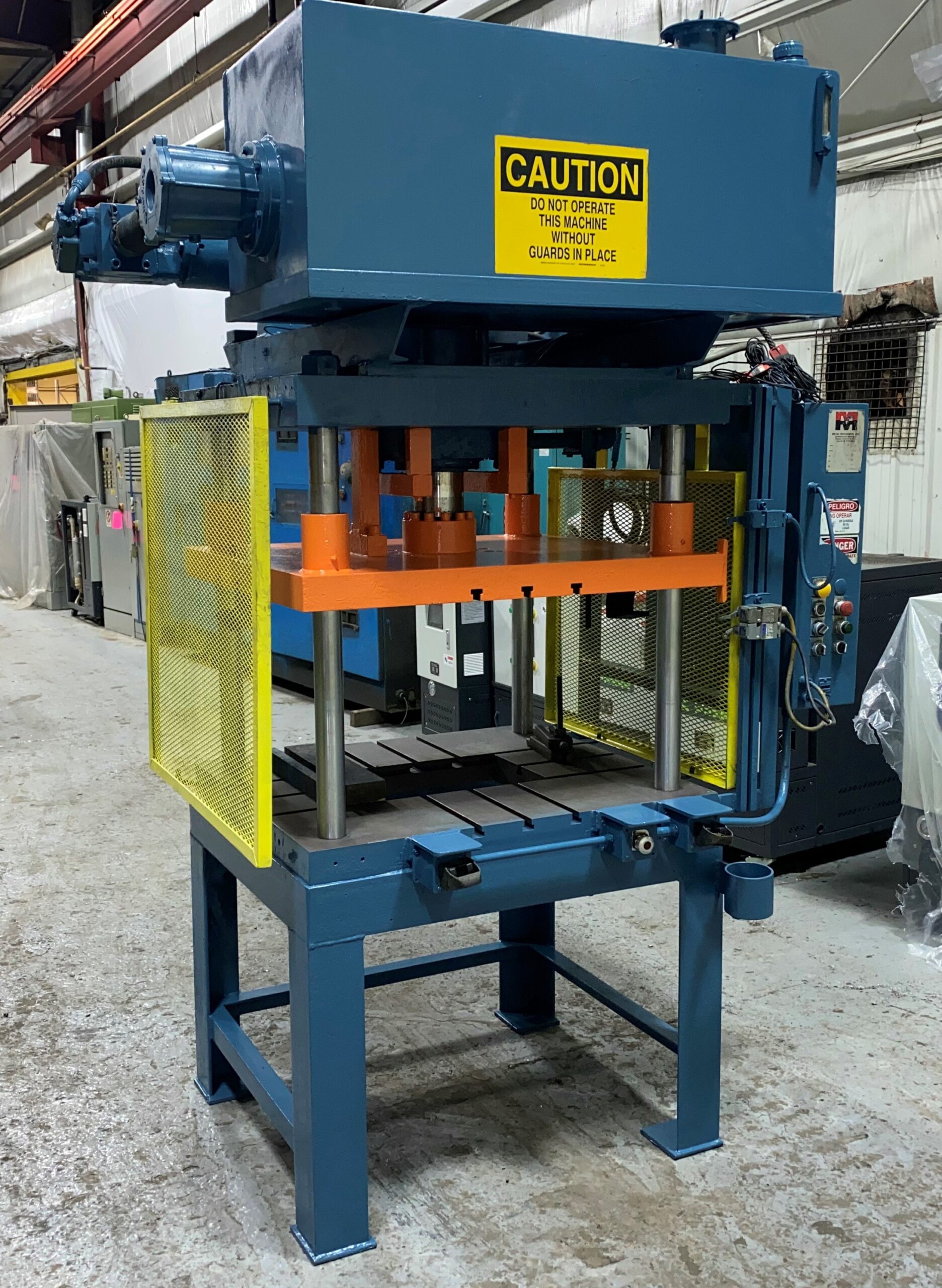

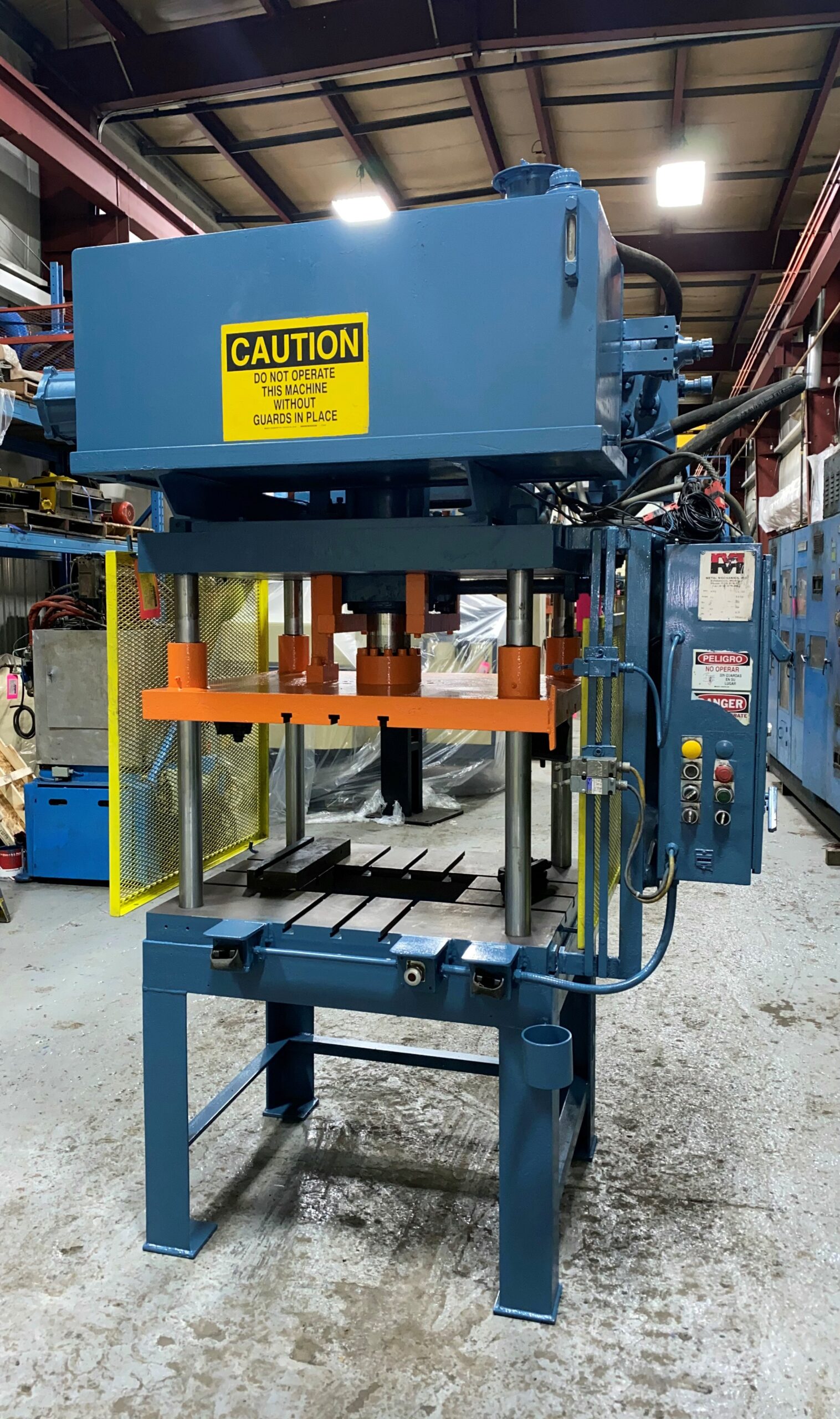

Used Metal Mechanics 30 Ton Trim Press Die Casting
This Trim Press 30 Ton is manufactured by Metal Mechanics. This Trimming Press machine reference #4818 Trim Press is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping.
The Importance of a Used Four Post Hydraulic Trim Press:
It is a very common hydraulic press in the automotive world and fundamentally it can cause great force, with only a little force. It is made up of one hydraulic cylinder that moves up and down providing tremendous flexibility and accuracy when trimming a casting, which is responsible for increasing power and maintaining maximum productivity. It is well known in the Die Casting business and automotive sector, the function of the trim press or trimming press is very basic. Its main objective is to multiply forces, and this is used to perfectly cut and trim die casting parts or other aluminum castings. They are machines that each day have more value according to their peak of use since they can be used for many industrial tasks.
