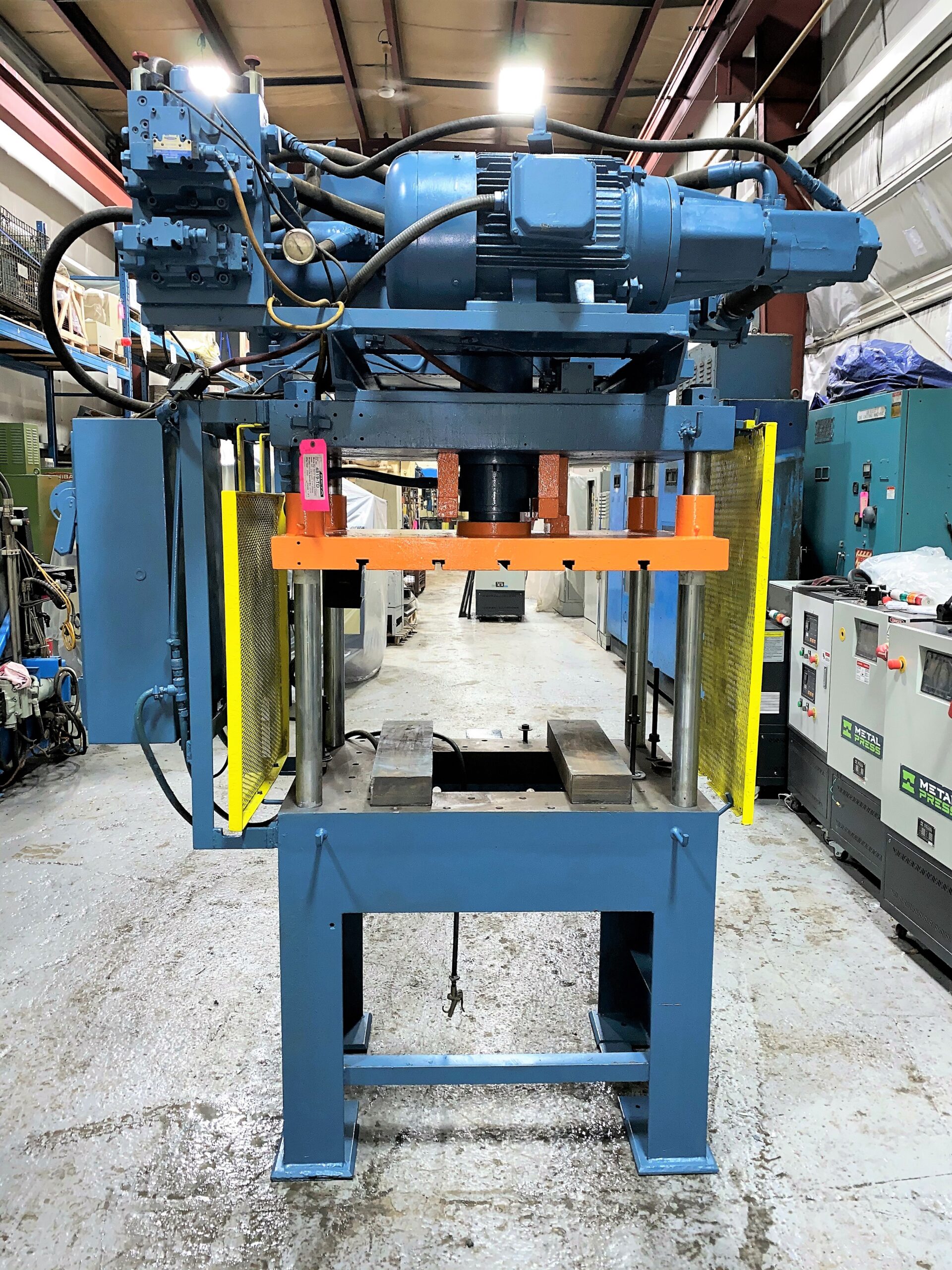

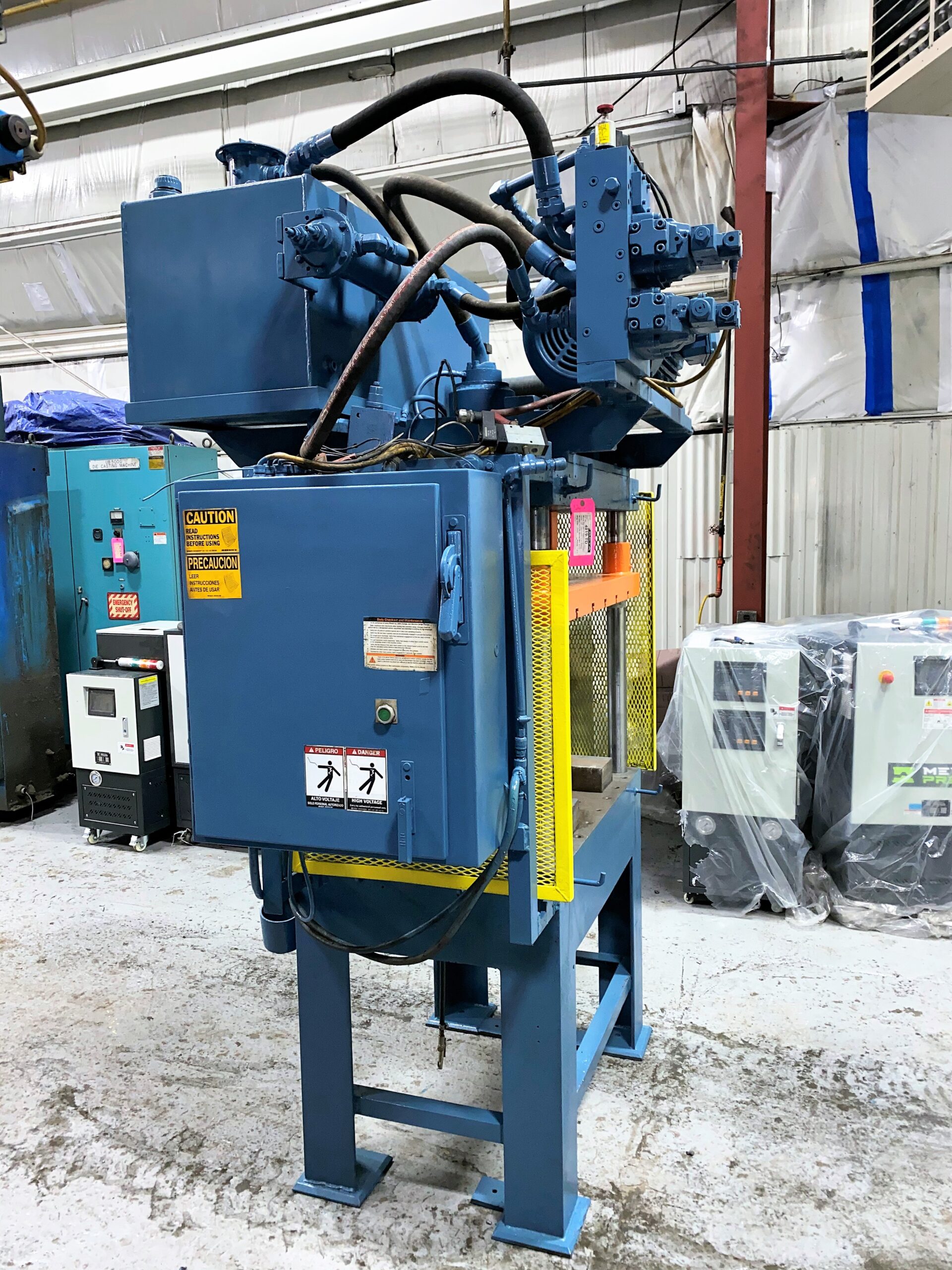

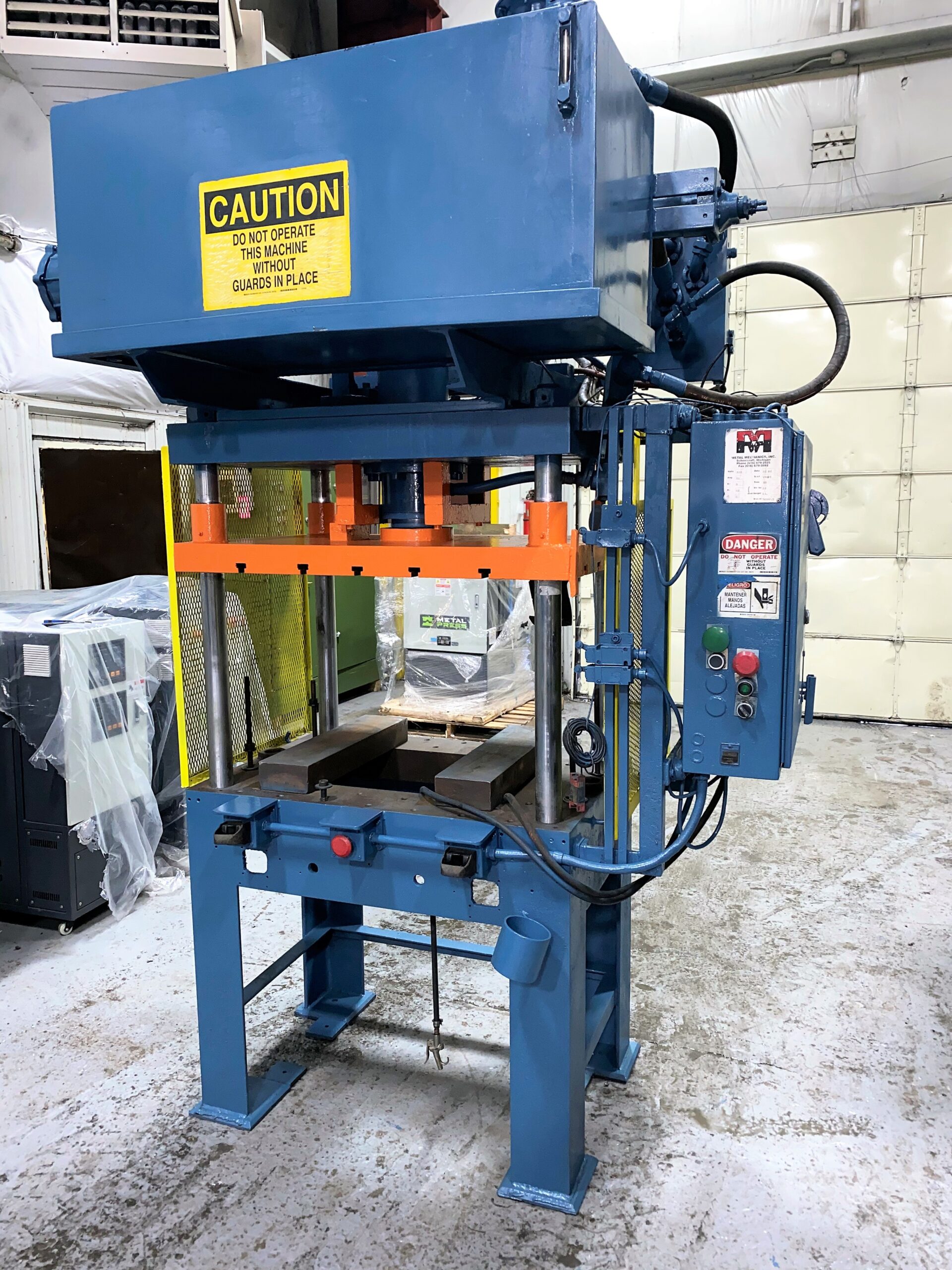

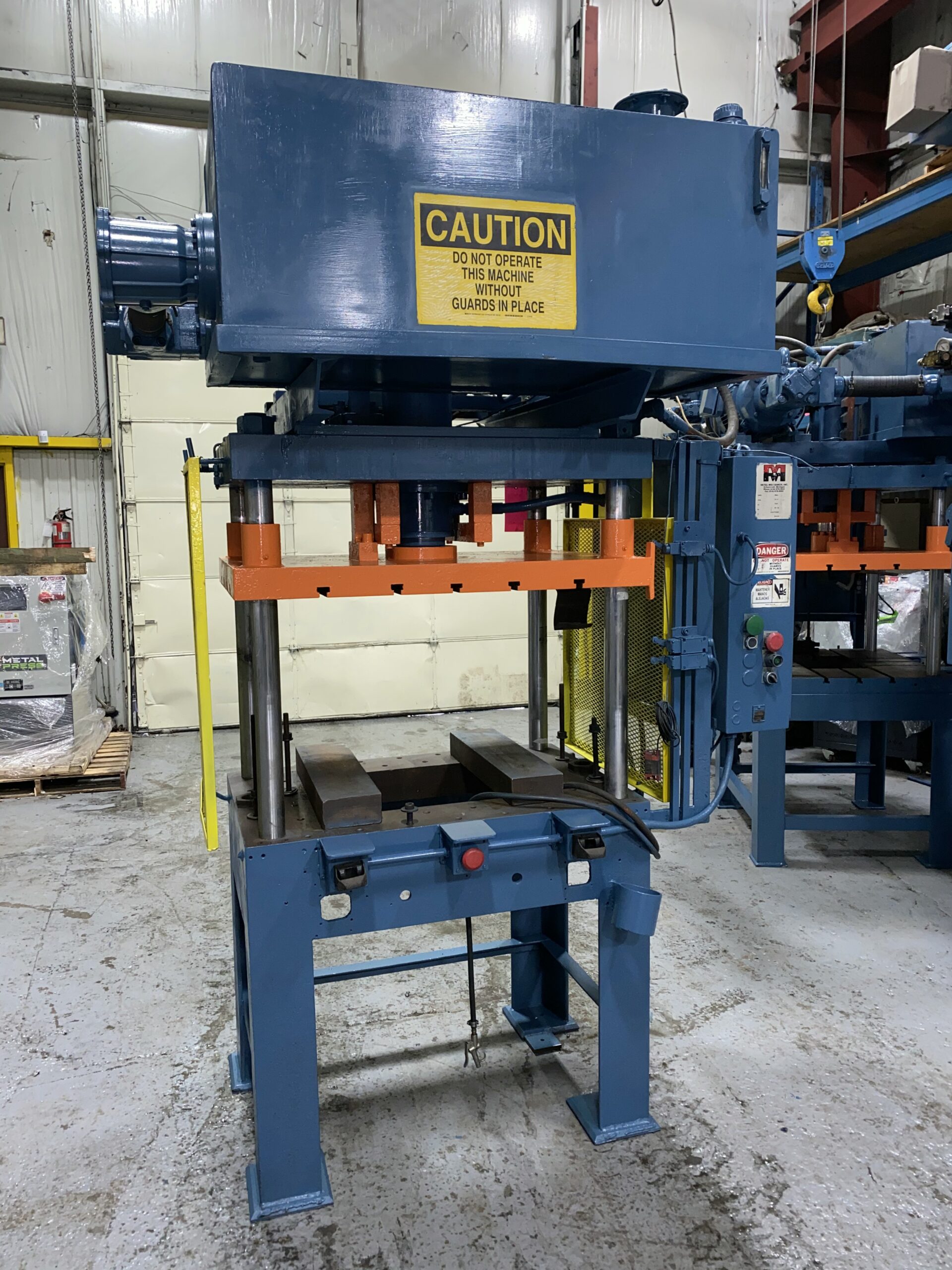

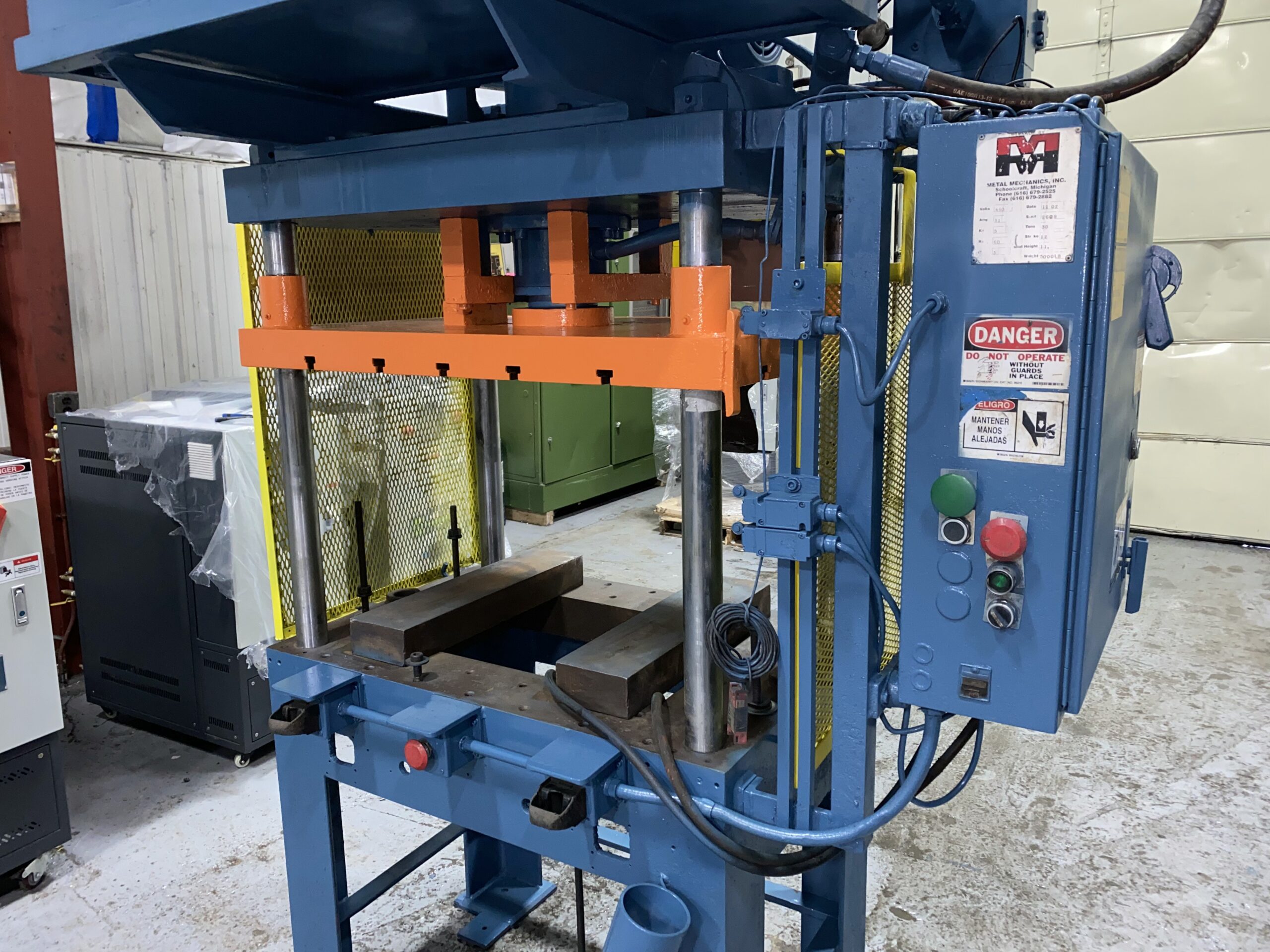

Used Metal Mechanics 30 Ton Trim Press Die Casting #4819

Description

:Trim Press
:Metal Mechanics
:30 Tons
:21" x 34"
:5,000 Lbs / 2267 kg
:4819
:Beta Warehouse Canada
:
AVAILABLE
Request Quote
SpecificationsMetric show ImperialImperial  show Metric
Pressing Force 27.2 tons 30 tons
Distance Between Tie Bars (D x W) 533.4 x 863.6 mm 21" x 34" inch
Platen (D x W) 685.8 x 1149.4 mm 27 x 45.25 inch
Stroke 508 mm 20 inch
General
Machine Weight (approx): 2268 kg 5000 lbs
ADDITIONAL SPECIFICATIONS
  • Number of Columns: 4 / 4
  • Column Diameter: 76.2 mm / 3 inches
  • Daylight: 584.2 mm / 23 inches
  • Shut Height: 76.2 mm / 3 inches
  • Cut-Out in Bed (L/R x F/B): 406.4 x 330.2 mm / 16 x 13 inches
CONTROL
  • Air Safety Ratchet Device

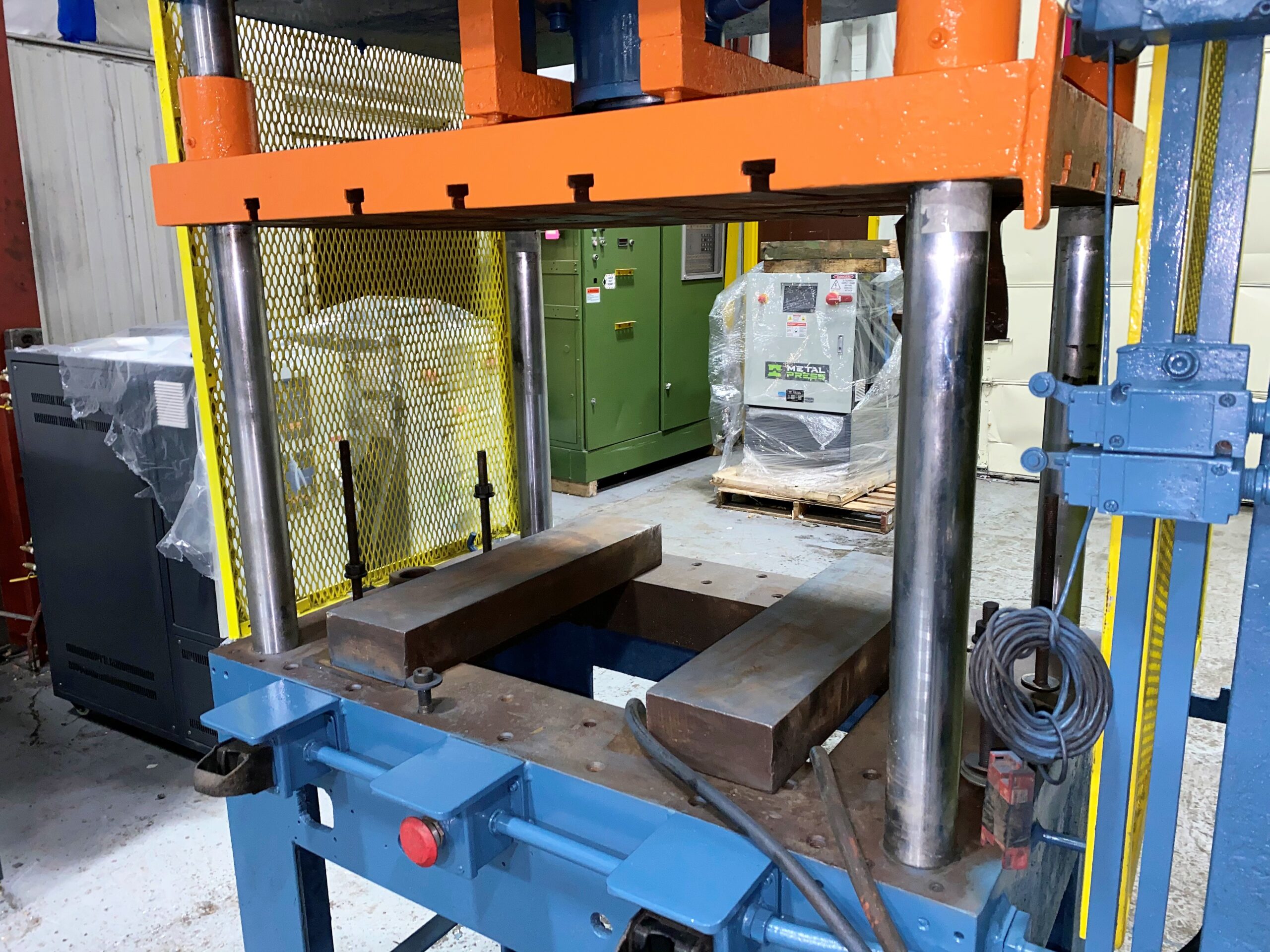

  • Drilled & Taped Bed & Moving Platten

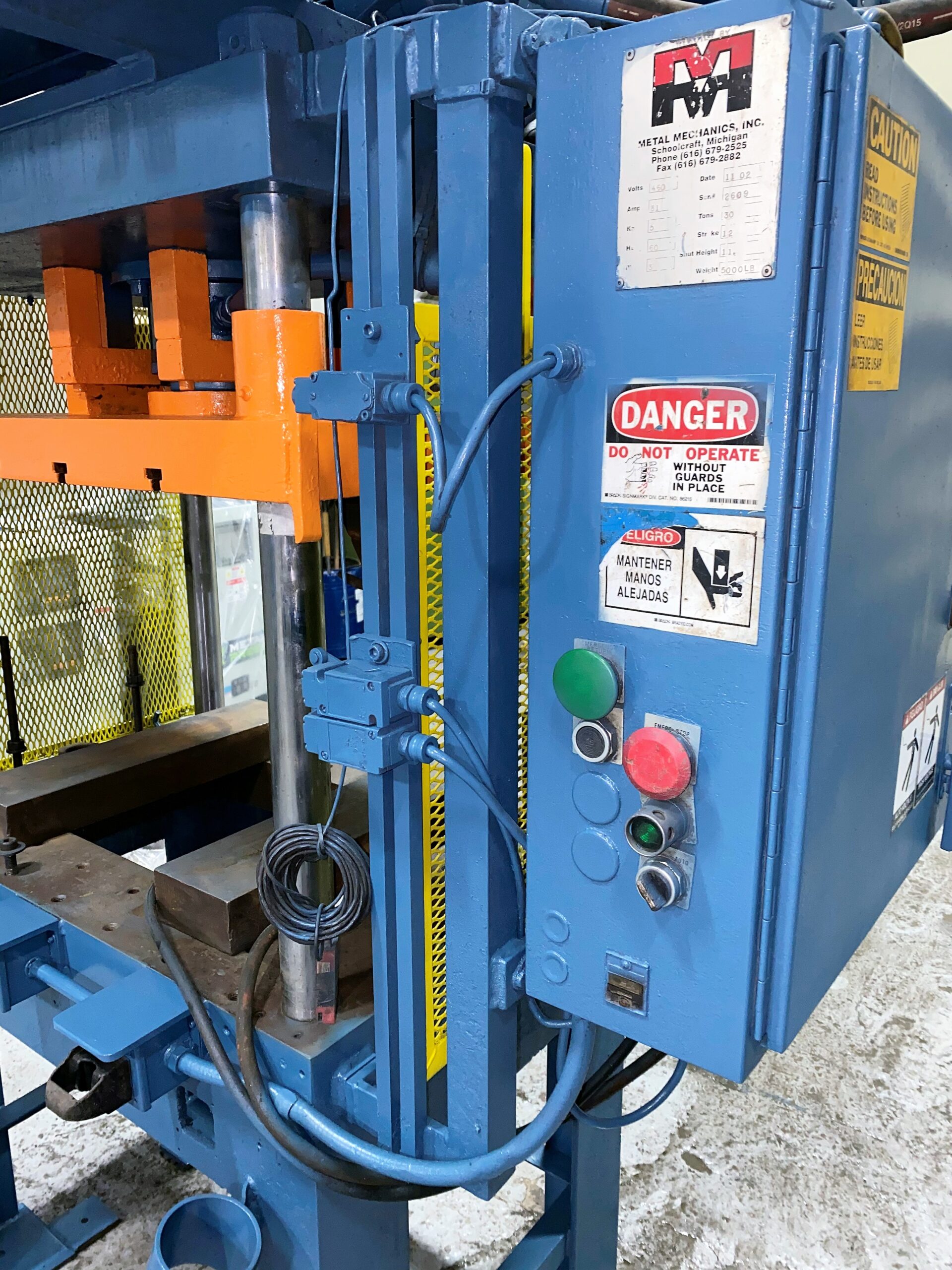

  • Dual-Button Operation with Zero-Force Proximity Switch Control

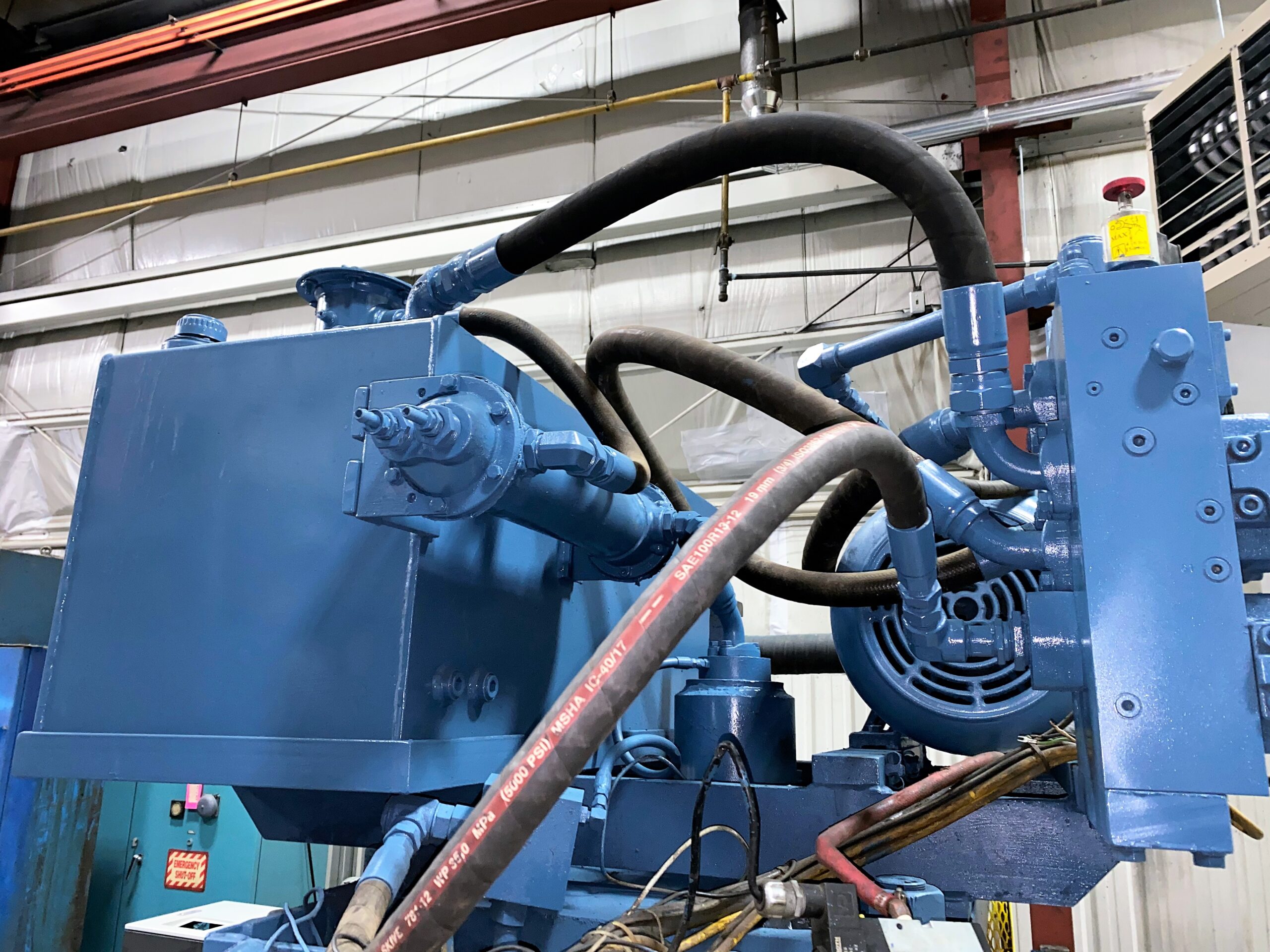

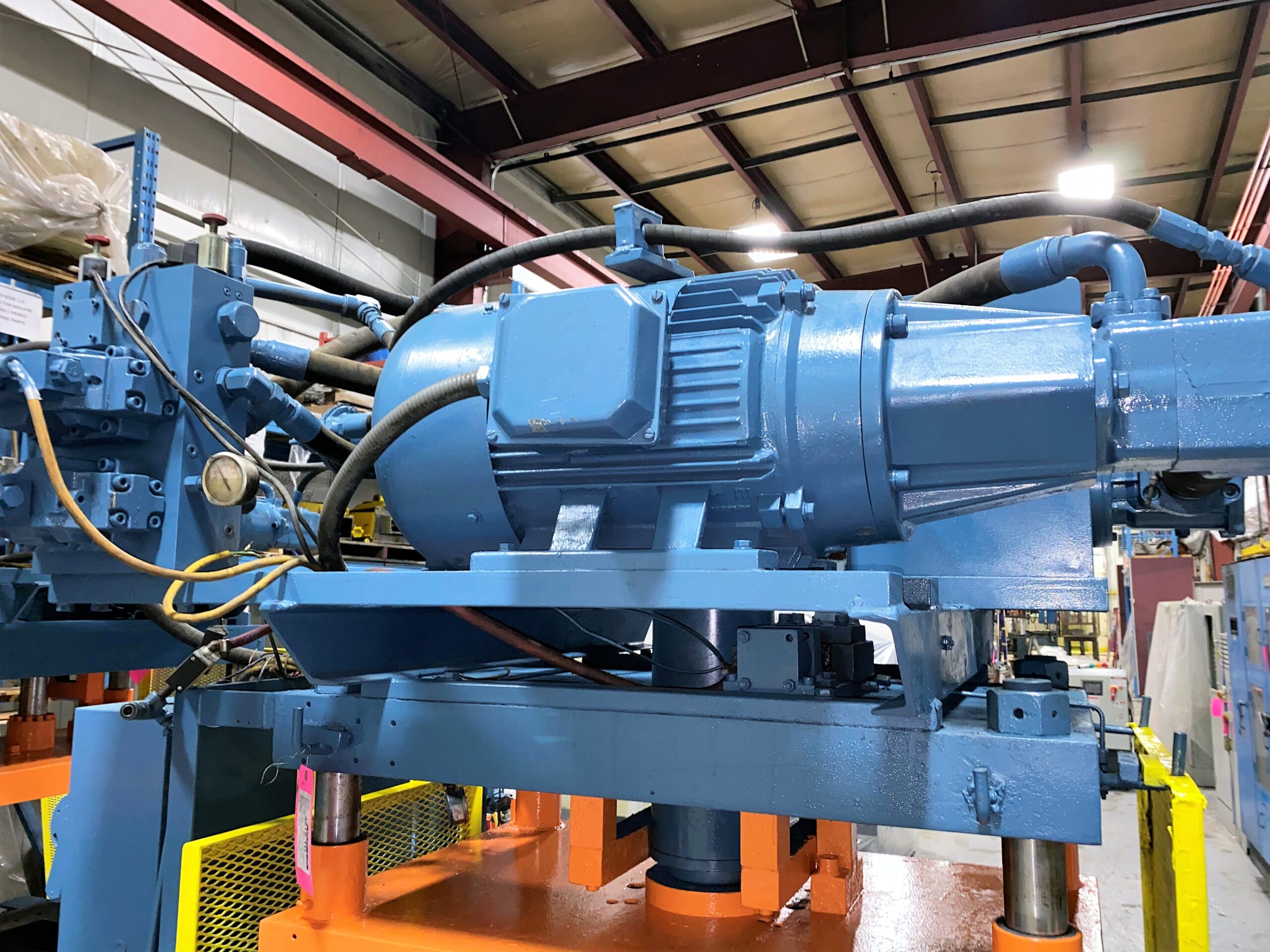

  • Top Mounted Hydraulics

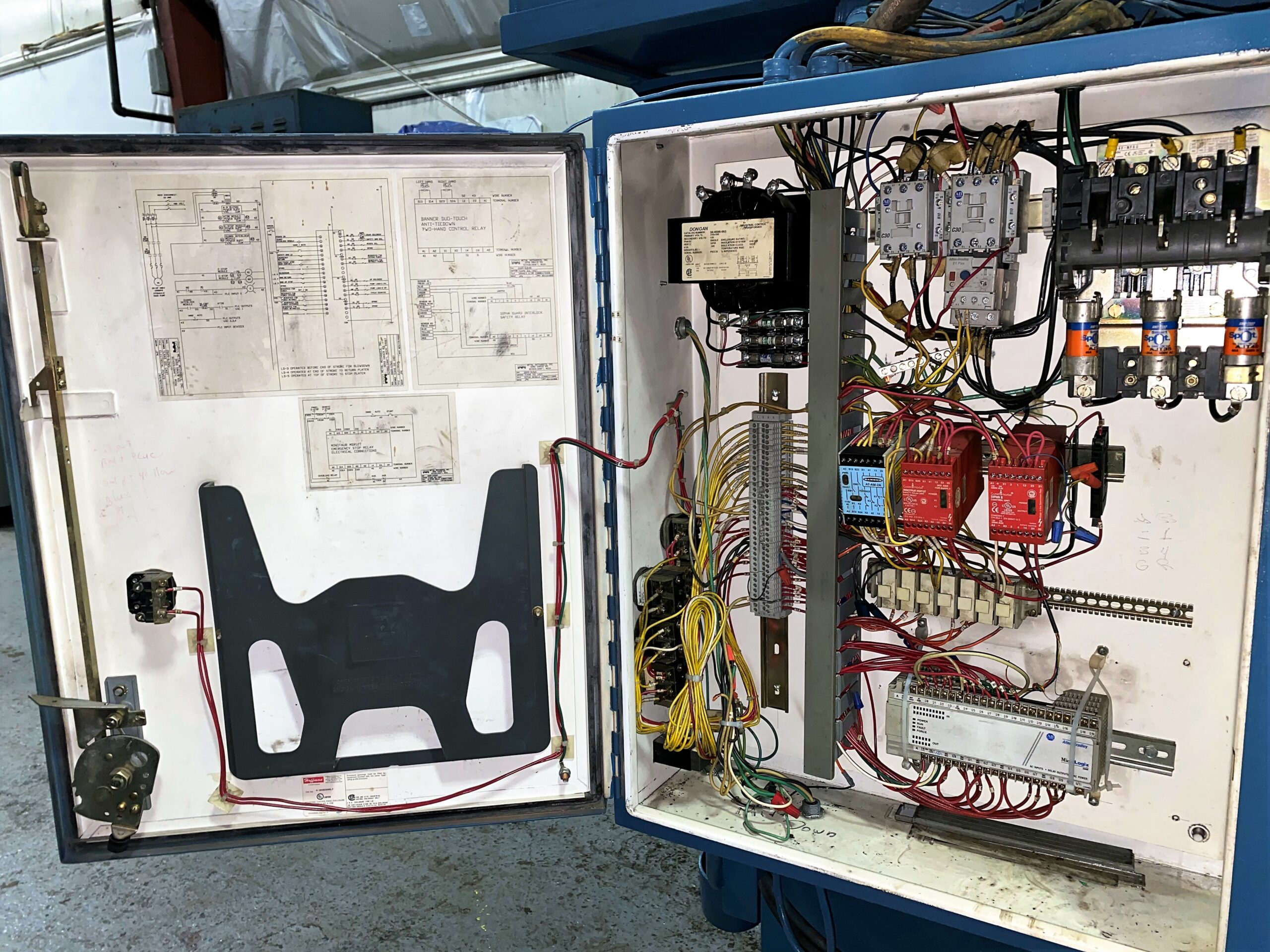

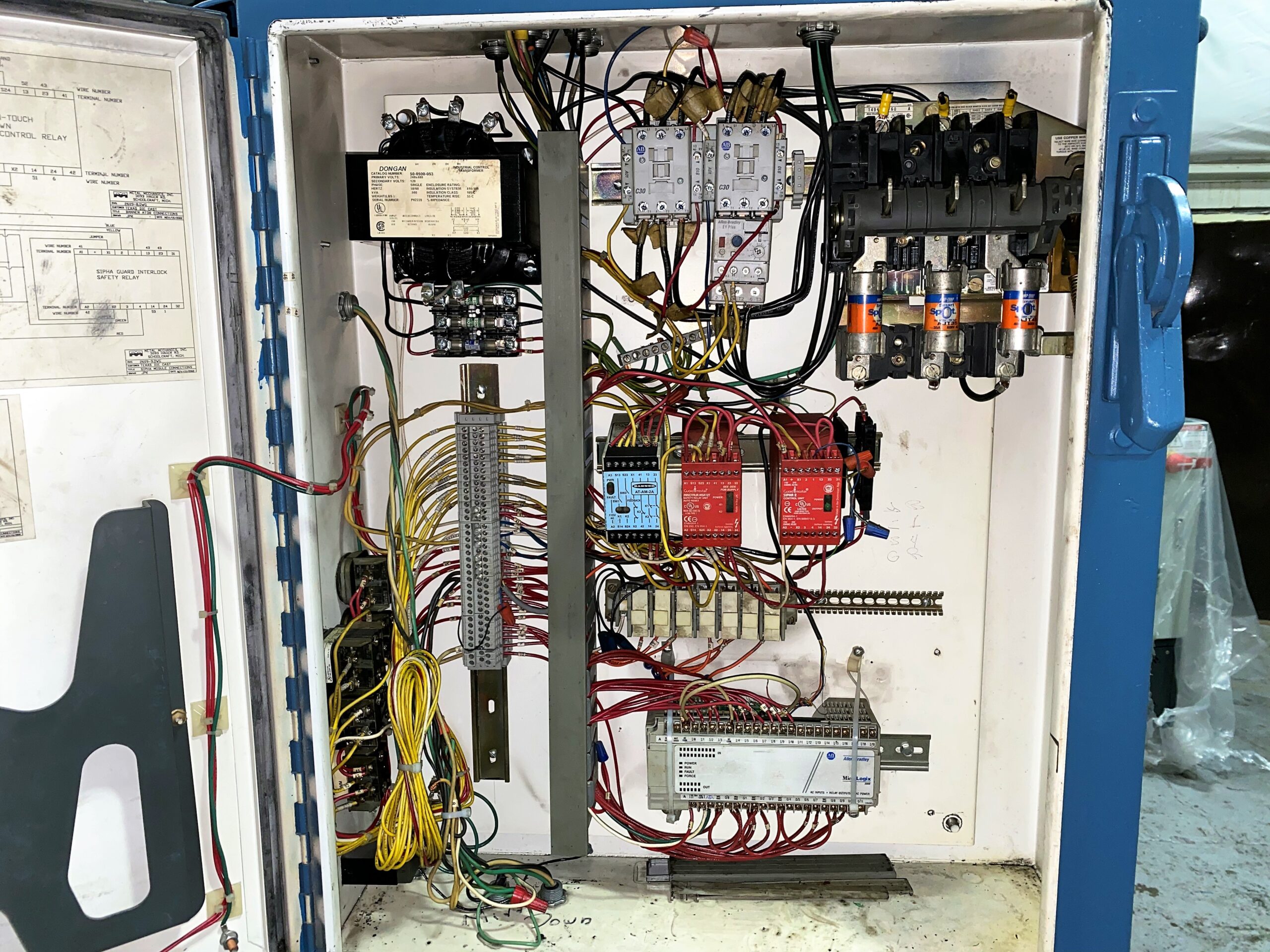

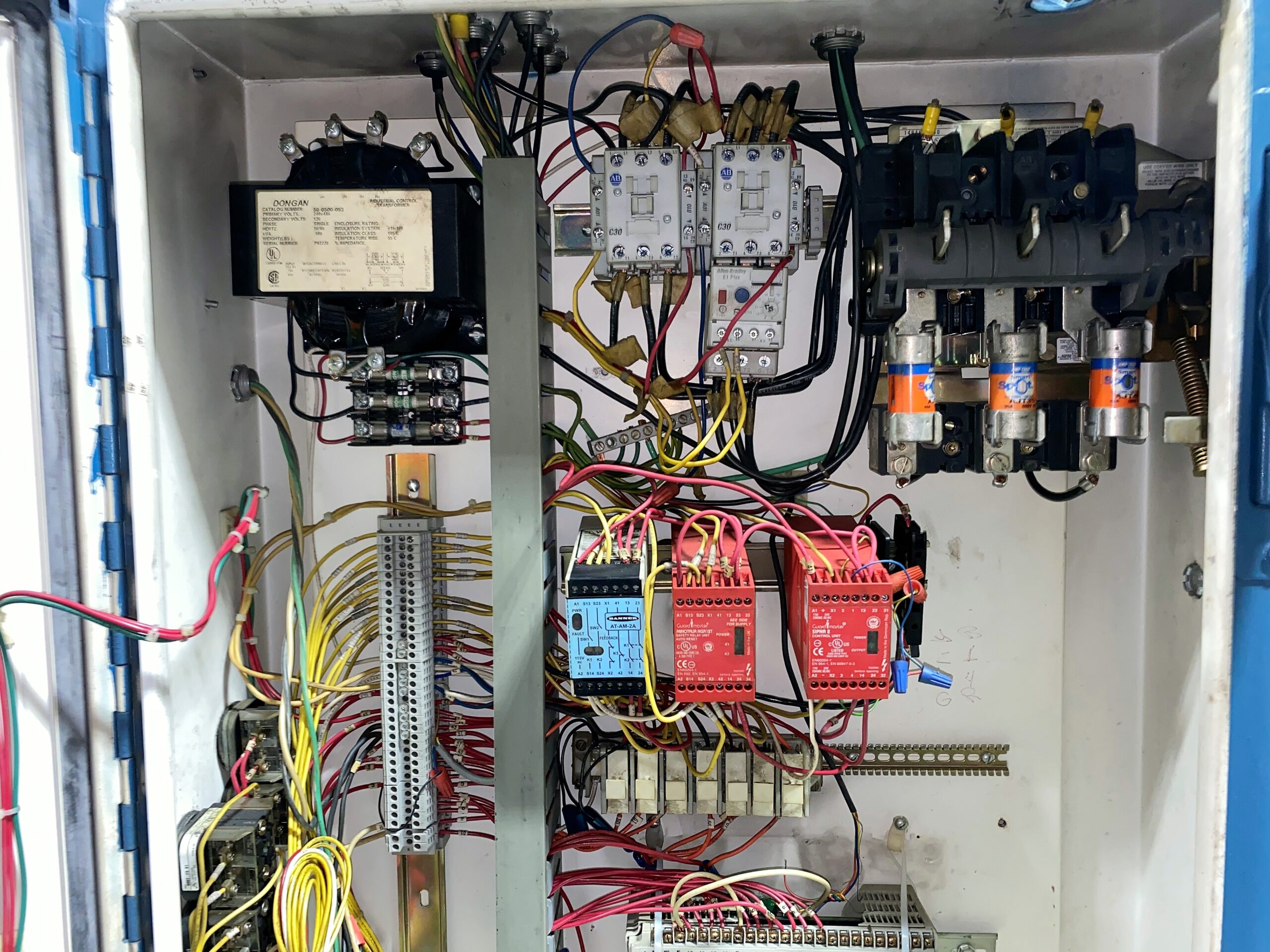

  • Allen Bradley SLC 500 Solid State Control
  • Mechanical Ejection System
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice

Used Metal Mechanics 30 Ton Trim Press Die Casting

This Trim Press 30 Ton is manufactured by Metal Mechanics. This Trimming Press machine reference #4819 Trim Press is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping.

The Importance of a Used Four Post Hydraulic Trim Press:

It is a very common hydraulic press in the automotive world and fundamentally it can cause great force, with only a little force. It is made up of one hydraulic cylinder that moves up and down providing tremendous flexibility and accuracy when trimming a casting, which is responsible for increasing power and maintaining maximum productivity. It is well known in the Die Casting business and automotive sector, the function of the trim press or trimming press is very basic. Its main objective is to multiply forces, and this is used to perfectly cut and trim die casting parts or other aluminum castings. They are machines that each day have more value according to their peak of use since they can be used for many industrial tasks.

Quality Factory Equipment at a Fraction of the Cost of New

Beta Die Casting Equipment is the largest buyer and reseller of used trim presses and trimming presses, used die casting machines, and used die casting machinery in the world. We supply the best used four post hydraulic trim presses, used trim presses, and used trimming presses models with either Allen Bradley plc or Siemens plc for the greatest adaptability. We offer tremendous esteem for the money and allow you more standard highlights than any other company. Why pay way more in case you are doing not ought to?

Beta Die Casting Equipment also buys and sells industrial machines and automation equipment such as Die Cast Press, High-Pressure Die Casting Machines, Cold Chamber Die Casting machines, Hot Chamber Die Casting Machines, Trim Press, Melting furnaces, Holding furnaces, Stack Melting Furnaces, Crucible Furnaces, Die Casting Ladles, Extractors, Multi-slide machines, Techmire Machines, Oil Temperature Controllers, Shot blast machines, Trimming Press, Die holders and other auxiliary equipment.

Used Trim Presses is our Speciality, Industrial Equipment is our Expertise

We are a diverse sort of fabricating company. We offer a comprehensive line of items and able to work with you to customize them to your particular needs. We are more than your regular provider - we are your accomplice in victory.

Our clients rely on us for their used trimming presses, used trim presses, used four-post hydraulic trim press, and used die casting machinery needs, but we also offer used industrial and automation equipment such as auto ladles, reciprocating die sprayers, and extractors (dedicated and robotic). Brands we stock include ABB, Kuka, Fanuc, Kuka and Motoman robot, Toshiba, Rimrock, Snair, Advance Products. We also carry all types of auxiliary equipment such die temperature control units (hot oil units) from Regoplas, Sterlco, Mokon, QPC, Advance, Robamat and Advantage. We buy and sell X-ray machines, spectrometers, shot blast machines, CNC machines, and four-post hydraulic trim presses from Robopres, Tecnopres, Reis, Diesse Presse, Brescia Presse, Metal Mechanics, Hannifin, KR Wilson, Corsteel, and Kard.





Product Overview

Used Trim Press Die Casting Machine

Used Metal Mechanics 30 Ton Trim Press Die Casting #4819

Used Metal Mechanics 30 Ton Trim Press Die Casting #4819

This is Used Metal Mechanics Trim Press Die Casting Machine. Request Quote
