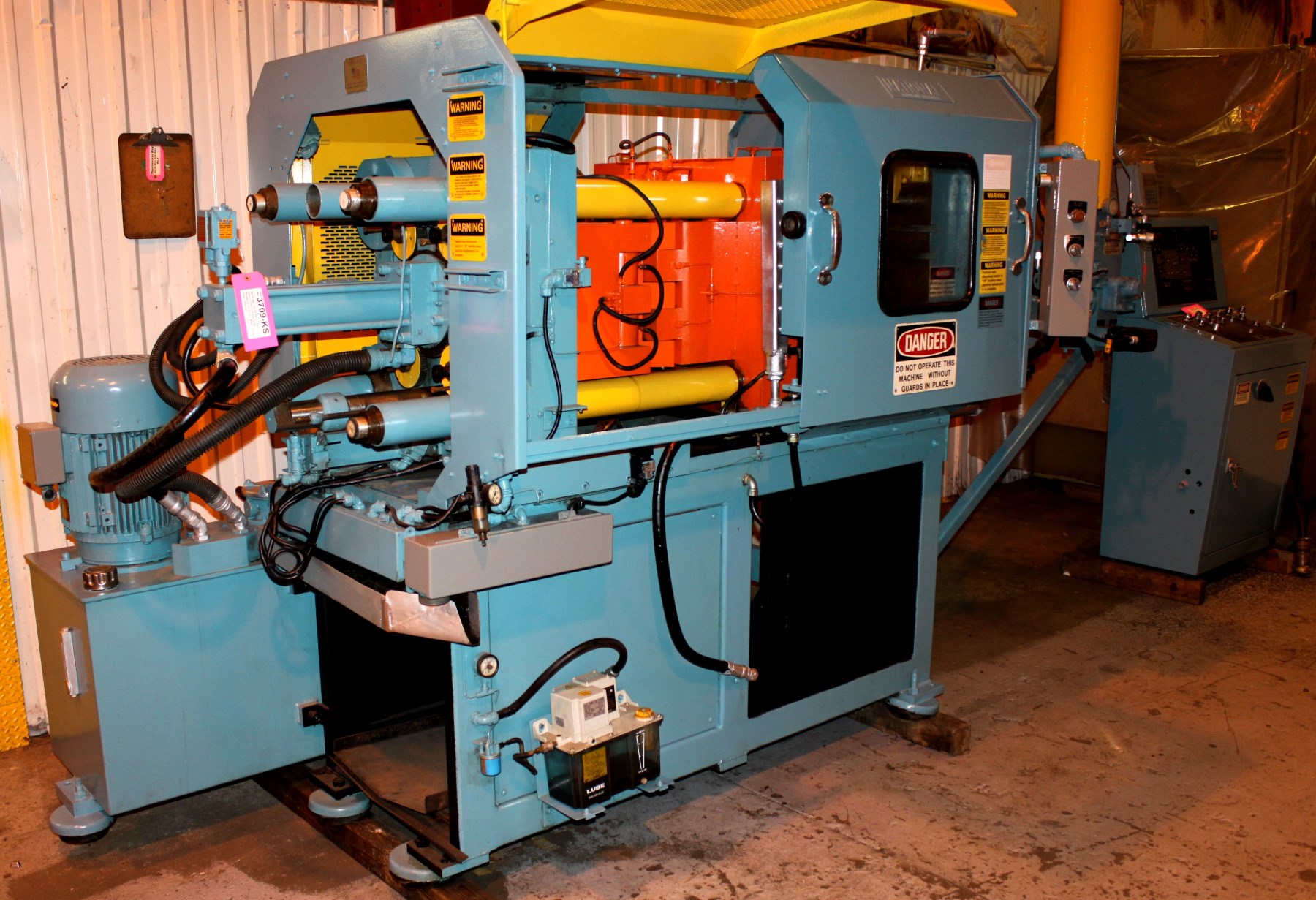

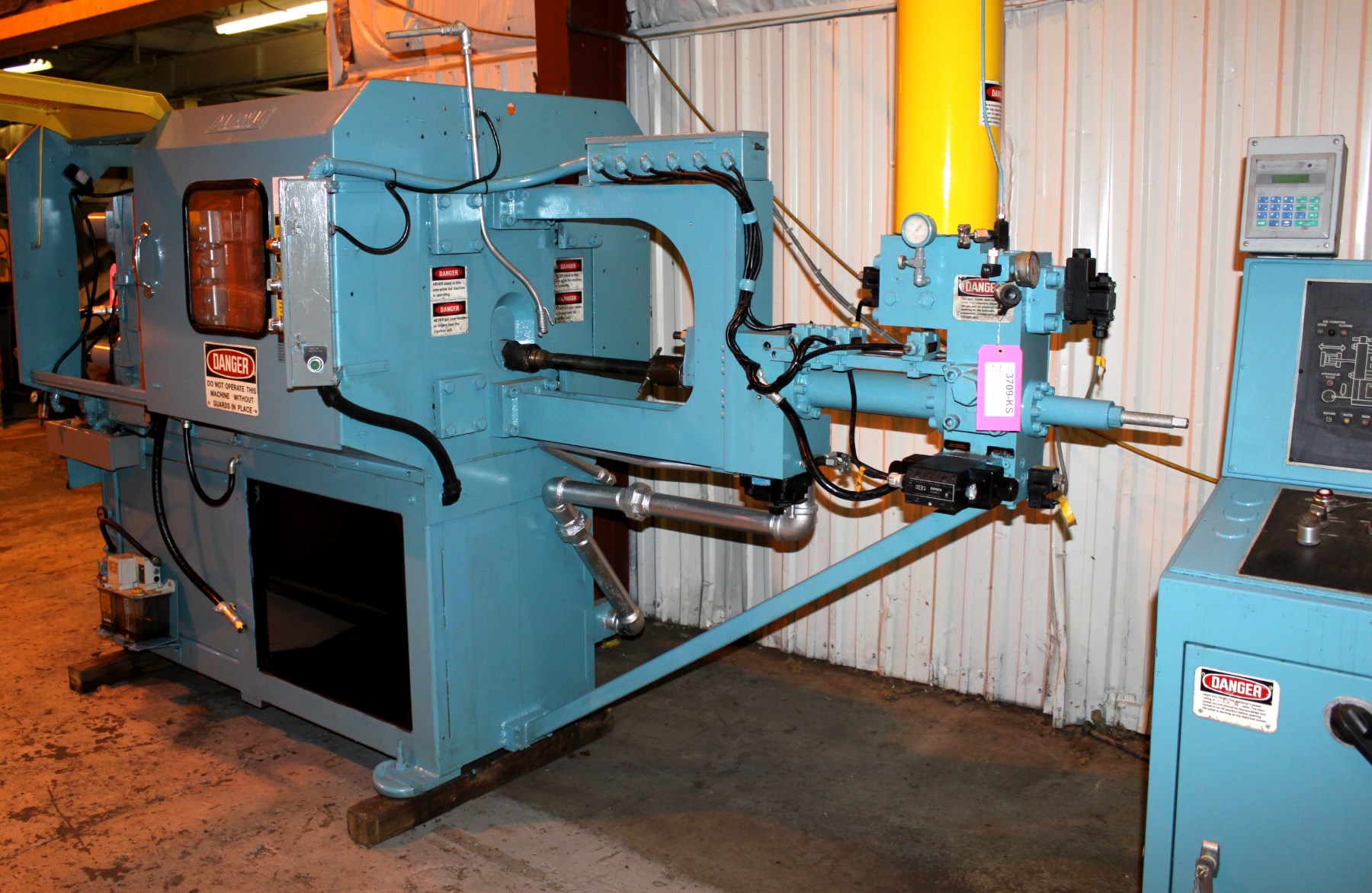

Used National 150 Ton Cold Chamber Die Casting Machine #3709
|Specifications||Metric show Imperial||Imperial show Metric|
|Locking Force||136.1 tons||150 tons|
|Distance Between Tie Bars (W x H)||381 x 381 mm||15 x 15 inch|
|Tie Bar Diameter:||76.2 mm||3 inch|

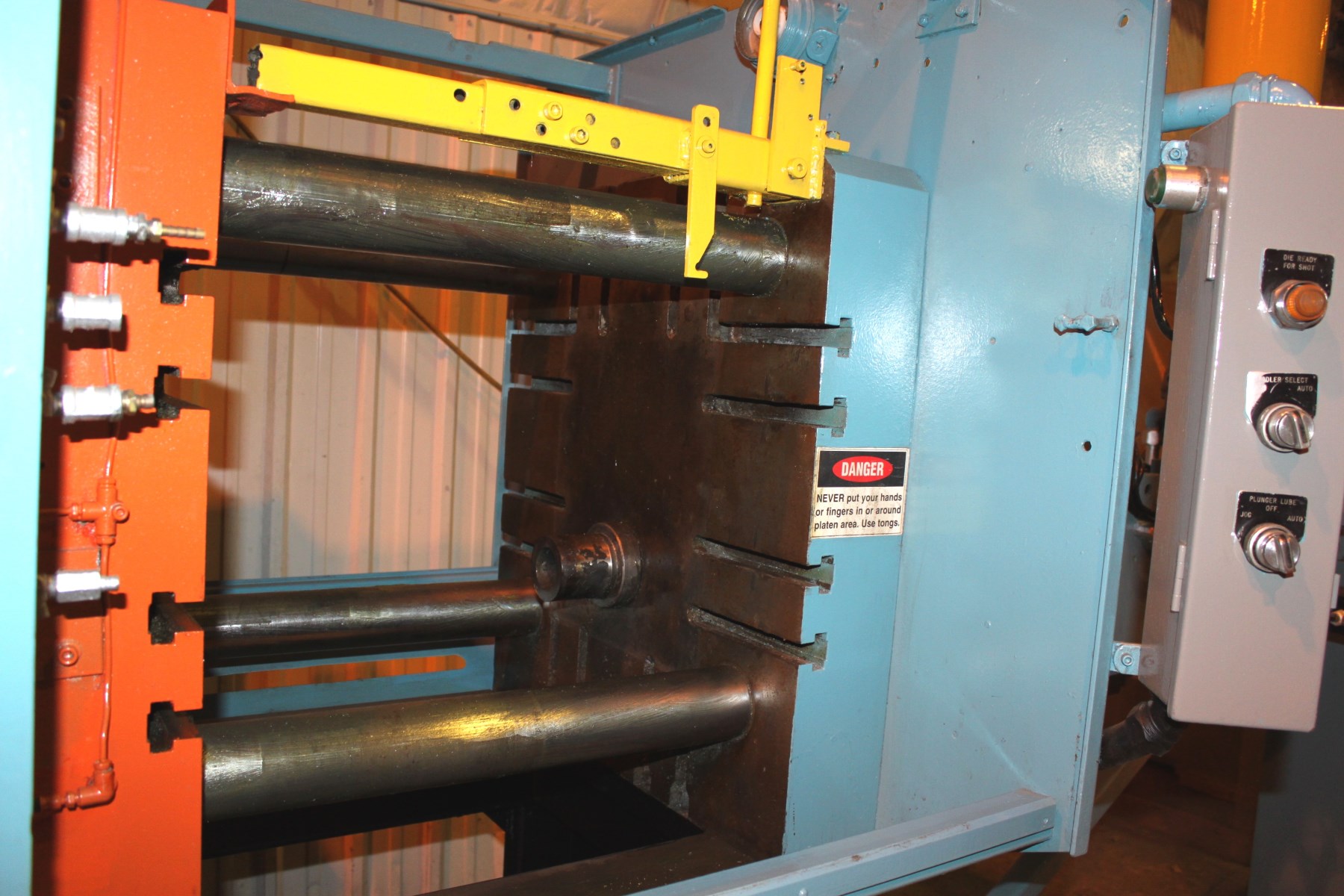

|Stationary Platen (W x H):||660.4 x 749.3 mm||26.0 x 29.5 inch|
|Die Height (Min-Max):||152.4 - 508 mm||6.0 - 20.0 inch|
|Shot Position (below center):||0 - 101.6 mm||--4 inch|
|Plunger Tip Diameter (Min-Max):||0 - 48.3 mm||0.0 - 1.9 inch|
|Shot Weight (aluminum) (Min-Max):||0 - 1.4 kg||0.0 - 3.0 lbs|
|Ejection Force:||109.8 tons||121 tons|
|Ejection Stroke:||0 - 99.1 mm||0 - 3.9 inch|
|Machine Weight (approx):||7030.7 kg||15500 lbs|
|Size (L x W x H):||4.1 x 1.9 x 2.4 m||13.5 x 6.1 x 8.0 ft|
- Automatic central lubrication
- Automatic die height adjustment
- Core pull units
- Machine manuals

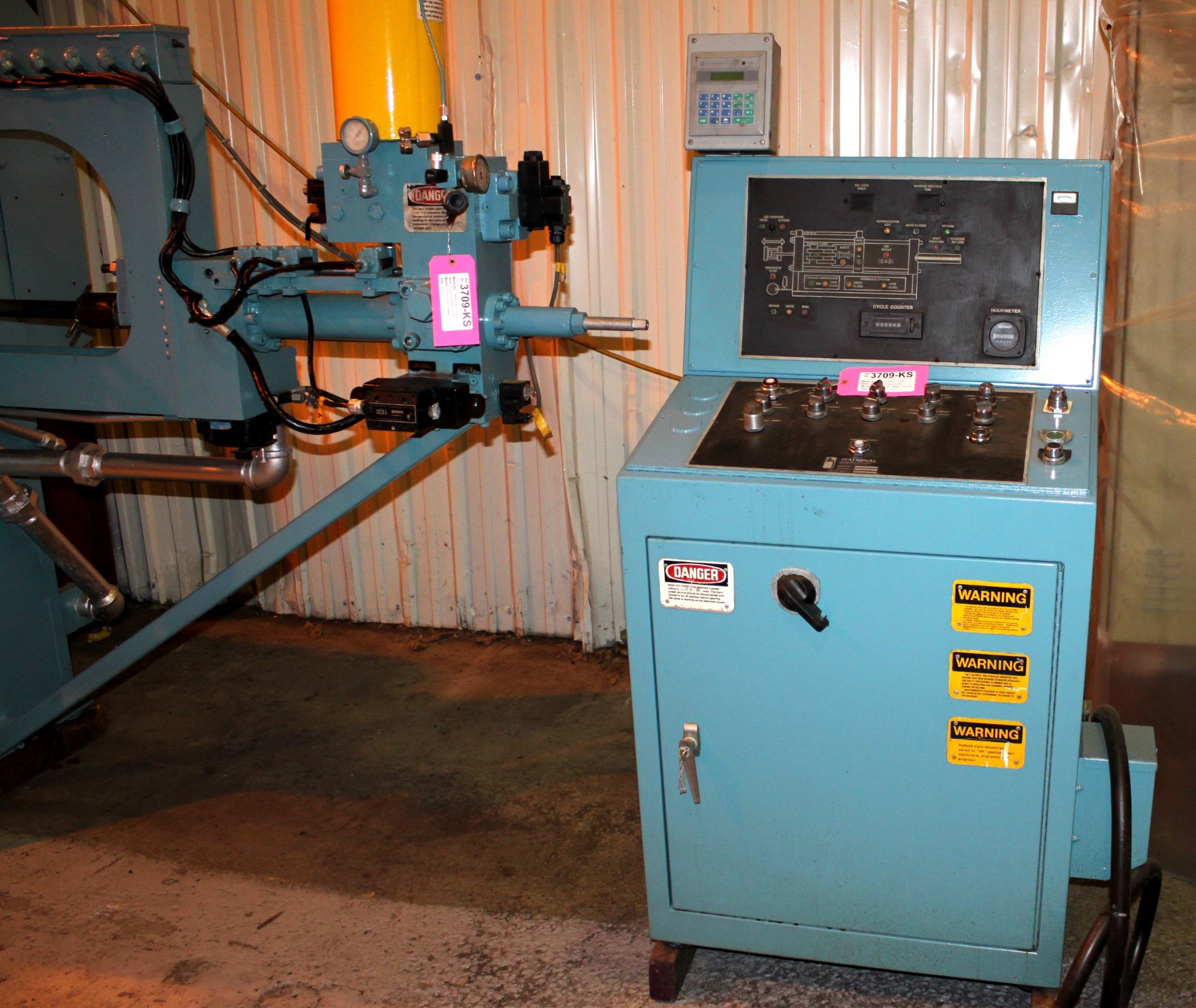

- Allen Bradley programmable logic controller (PLC) model SLC 5/01
- Machine is ready for inspection and/or shipping
- Technical data without obligation – subject to prior sale
- Specifications and location are subject to change without notice
This Cold Chamber Die Casting machine 150ton is manufactured by National.
This Cold Chamber Die Casting Machine and Die Cast Press reference #3709 is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping.
