Used Toshiba 350 Ton Cold Chamber Die Casting Machine #4414
|Specifications||Metric show Imperial||Imperial show Metric|
|Locking Force||350.2 tons||386 tons|
|Distance Between Tie Bars (W x H)||650.2 x 650.2 mm||25.6" x 25.6" inch|
|Tie Bar Diameter:||124.5 mm||4.9 inch|
|Stationary Platen (W x H):||934.7 x 934.7 mm||36.8 x 36.8 inch|
|Die Height (Min-Max):||299.7 - 701 mm||11.8 - 27.6 inch|
|Die Injection Force (Min-Max):||16.7 - 34.7 tons||18.4 - 38.2 tons|
|Injection Speed:||99.1 mm||3.9 inch|
|Shot Position (below center):||124.5 mm||-4.9 inch|
|Plunger Stroke:||480.1 mm||18.9 inch|
|Plunger Tip Diameter (Min-Max):||61 - 78.7 mm||2.4 - 3.1 inch|
|Shot Weight (aluminum) (Min-Max):||2.6 - 4.6 kg||5.7 - 10.1 lbs|
|Casting Volume (Min-Max):||25.5 in²||164.3 cm²|
|Ejection Force:||19.1 tons||21 tons|
|Ejection Stroke:||20.3 - 88.9 mm||0.8 - 3.5 inch|
|Dry Cycle Speed (max. load):||4.3 sec||4.3 sec|
|Machine Weight (approx):||11499.9 kg||25353 lbs|
|Size (L x W x H):||5.7 x 1.8 x 3.1 m||18.7 x 6 x 10.2 ft|

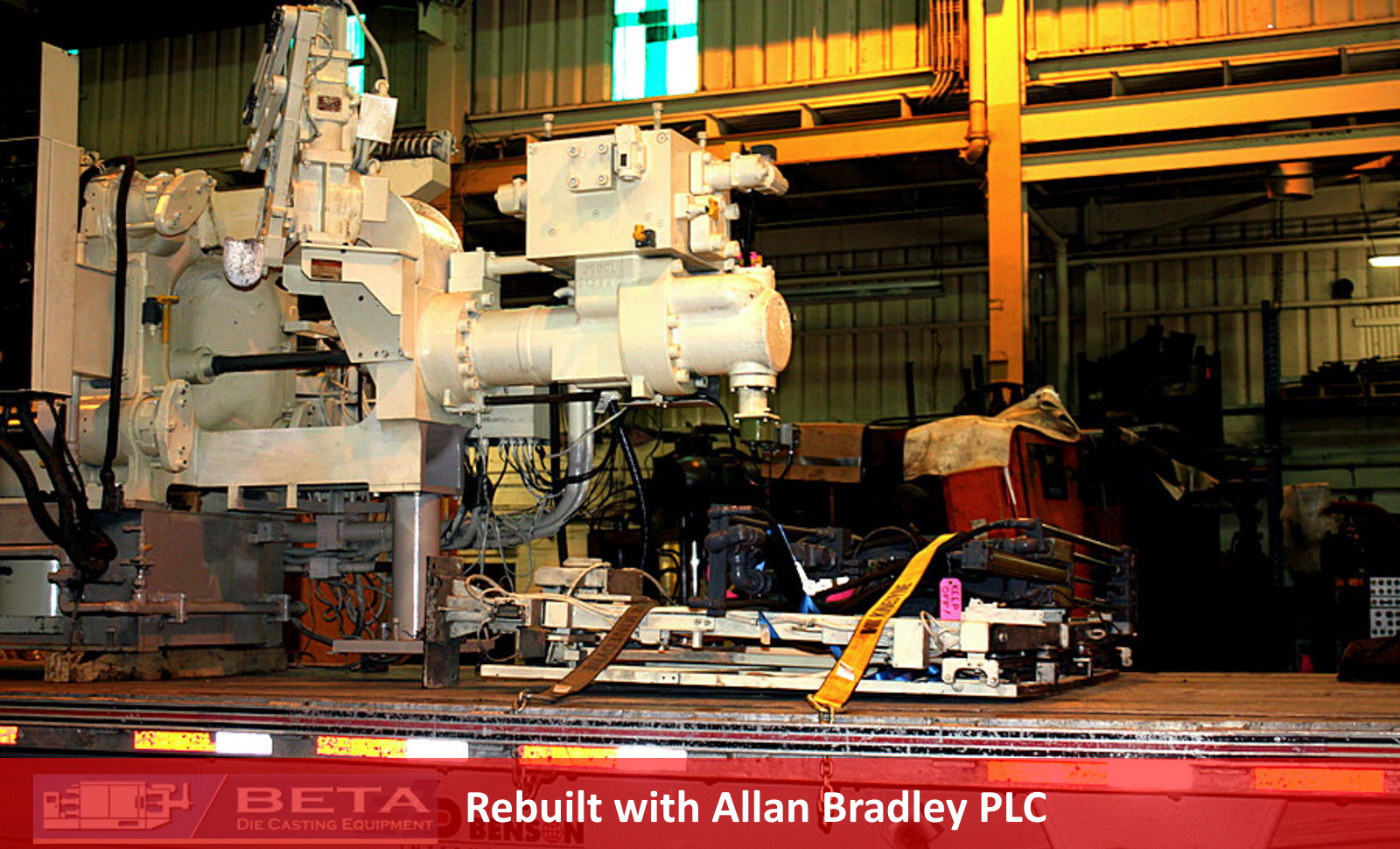

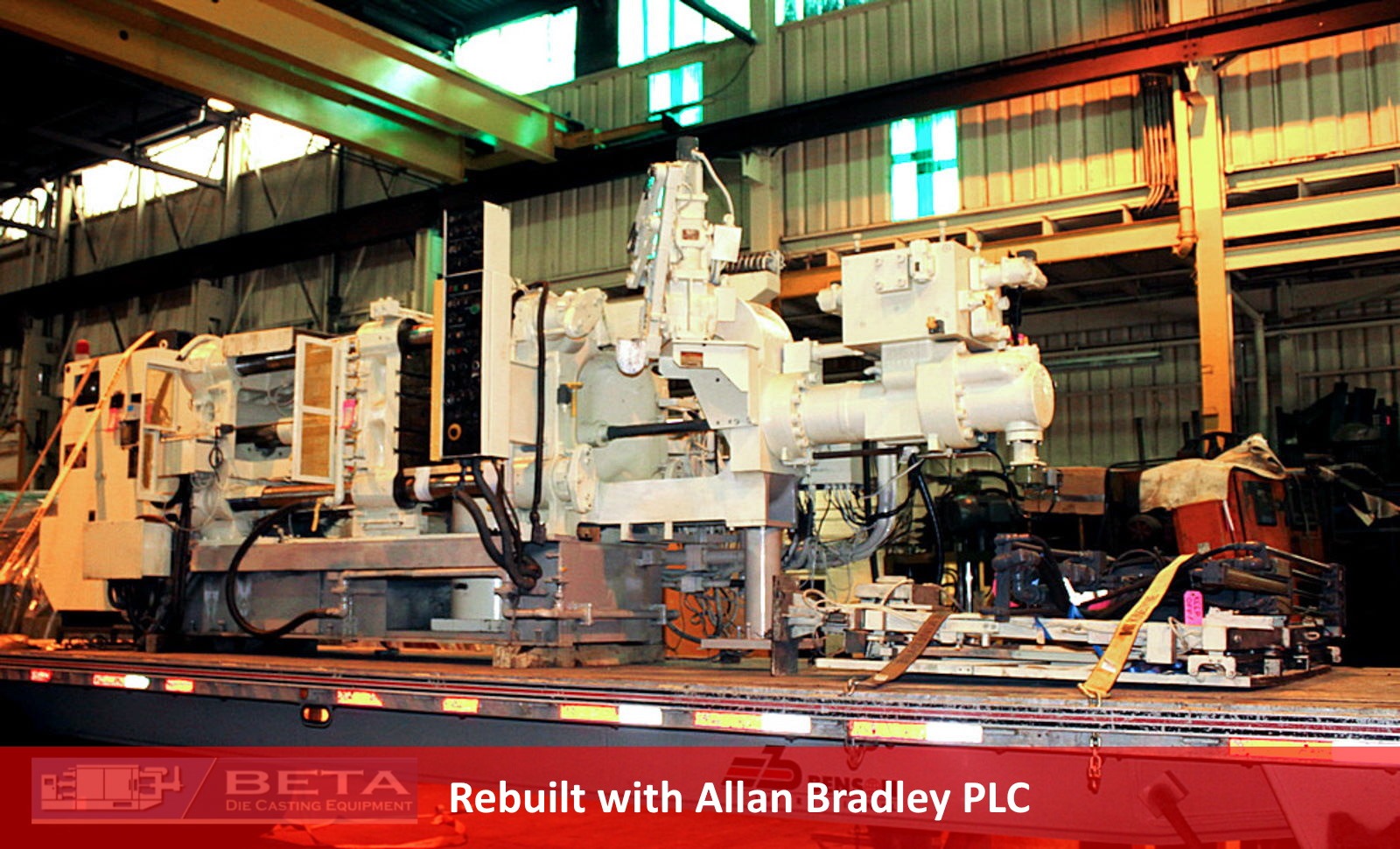

- Allan Bradley Programmable logic controller (PLC)
- Visi Trak Shot Control
- Machine is ready for inspection and/or shipping
- Technical data without obligation – subject to prior sale
- Specifications and location are subject to change without notice
Used Toshiba 350 Ton Cold Chamber Die Casting Machine
This Cold Chamber Die Casting machine 350ton is manufactured by Toshiba. This Cold Chamber Die Casting Machine and Die Cast Press reference #4414 is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping.
DIE CASTING EXPLAINED
In the die casting process, a mold (called the die) is required. The die is constructed from very high-quality steel specially made for dies. The dies are reusable and are made of two halves. During the process of die casting, molten metal is injected into the closed die under very high pressure through a relatively small hole in one half of the die. When the molten metal has solidified sufficiently, the two parts of the die are opened to expose the actual casting inside. The casting is then removed from the die, cooled further and then finally trimmed. The trimming separates the gates and runners from the casting. The gates and runners are incorporated into the die design as a way to distribute molten metal to the various parts of the die. The trimmed gates and runners are then usually re-melted with new metal also being added. After trimming, further operations can be performed such as drilling and tapping, powder coating and assembly of finished components, etc.
How to Select and Buy a Die Casting Machine: There are many things to take under consideration when buying a die casting machine. This section has been designed to simplify the process of sifting through all the options and selecting the right machine for your needs.
NEW OR SECONDHAND? This is the age-old question that most people have. However, most people do not realize that when it comes to die casting machines (as with many other products), manufacturers of these machines produce several “export versions” depending on which “region” of the world they will be sold to. For example, die casting machines produced for the North American market will vary greatly in the quality of materials and technical capabilities when compared to machines produced for “developing” countries. The reality of the matter is that the North American market is much more “mature” and generally speaking has much greater requirements and expectations than other developing markets do. In addition, the level of sophistication, the product technology and budgets for equipment acquisition is greater as well. As such, many die casting machine manufacturers who have been relatively successful in producing machines for developing counties have had almost NO success in developed countries like North America, Europe and other developed markets. In the world market, these machines have become known as “disposable” machines (possibly the term came from disposable shavers). Whereas a machine made in North America or Europe can be rebuilt many times over and over due to superior quality steel, such disposable machines have a very short lifespan of only a few years. After that, it is very hard, if not impossible, to rebuild them properly since the quality of the metal is very poor.
High Pressure Die Casting Machine Types: There are 3 basic types of high pressure die casting machines. 1) Cold Chamber Used primarily for aluminum castings (occasionally specialized machines for brass and magnesium). 2) Hot Chamber Used primarily for zinc and lead (occasionally specialized machines for brass and magnesium castings). 3) Multi-Slide Used for zinc (occasionally specialized machines for magnesium castings).
Quality Factory Equipment at a Fraction of the Cost of New: Beta Die Casting Equipment is the largest buyer and reseller of used die casting machines, Trim press and trimming press, used high pressure die casting machines, and used die casting machinery in the world. We supply both cold chamber die casting machines and hot chamber die casting machines, for the greatest adaptability. We offer tremendous esteem for the money and allow you more standard highlights than any other company. Why pay way more in case you are doing not ought to?
Beta Die Casting Equipment also buys and sells industrial machines and automation equipment such as Die Cast Press, High-Pressure Die Casting Machines, Cold Chamber Die Casting machines, Hot Chamber Die Casting Machines, Trim Press, Melting furnaces, Holding furnaces, Stack Melting Furnaces, Crucible Furnaces, Die Casting Ladles, Extractors, Multi-slide machines, Techmire Machines, Oil Temperature Controllers, Shot blast machines, Trimming Press, Die holders and other auxiliary equipment.
We Offer the Largest Variety of Used Industrial Equipment: We sell all types of equipment such as cold chamber die casting machinery and hot chamber die casting machines. We also offer aluminum die casting machinery, zinc high pressure die casting machinery, trim presses, trimming presses, furnaces, automation, finishing, inspection, and machining equipment. We stock European die casting machines made by Buhler, Idra, Italpresse, Frech, Weingarten, Colosio, Upre, Agrati, and Triulzi. From Asia, we stock die casting machines such as Toshiba, UBE, Toyo, Zitai, BSK, KDK, Producer, and LK. From the United States, we stock die casting machines such as Prince, HPM, BuhlerPrince, Lester, B&T, THT, National, Birch, Kux. We also offer Canadian machines such as Techmire, Dynacast, Triad, and Fishercast.
- Factory Toshiba ladler included.
- Factory Toshiba sprayer included.
- Factory Toshiba extractor included.
