New MetalPress 5 Ton Hydraulic Die Mold Upender #4543

Description

:2019
:4543
:
AVAILABLE
Request Quote

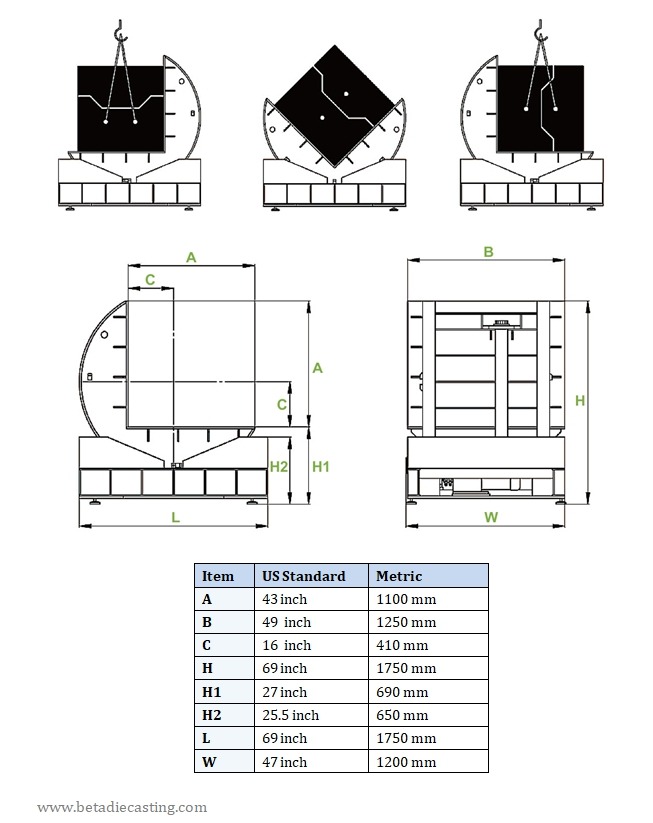

ADDITIONAL SPECIFICATIONS
  • Overturn CapacityUS 5.5 tons (5 metric tonnes)
  • Table Size43 x 49 inch (1100 x 1250 mm)
  • Table Height24 inch (605 mm)
  • Center Size16 inch (410 mm)
  • Motor Power2 hp (1.5 kw)
  • Machine Length69 inch (1750 mm)
  • Machine Width47 inch (1200 mm)
  • Machine Height69 inch (1750 mm)
  • Machine WeightUS 1.8 tons (1.6 metric tonnes)
CONTROL
  • Omron PLC
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice

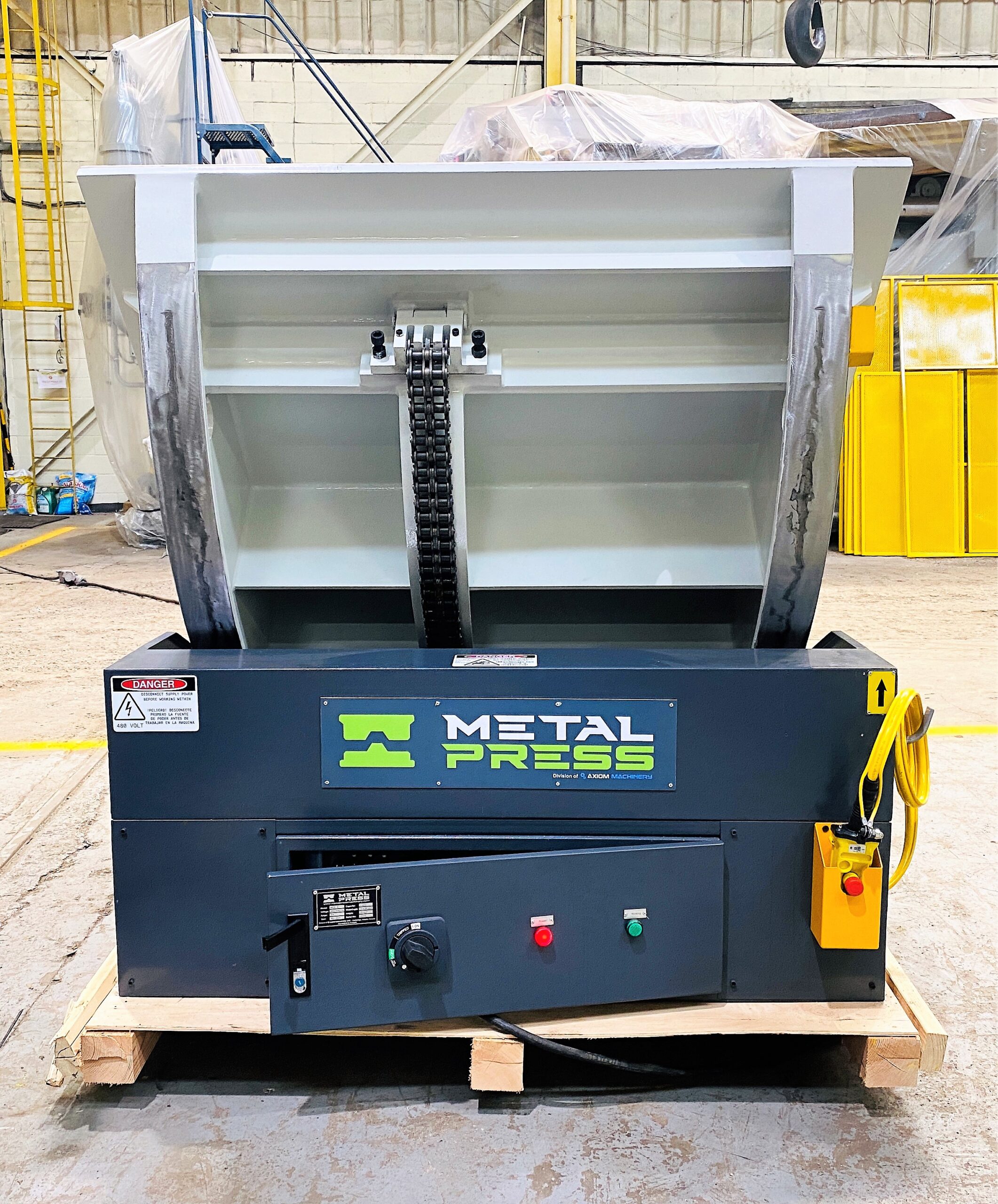

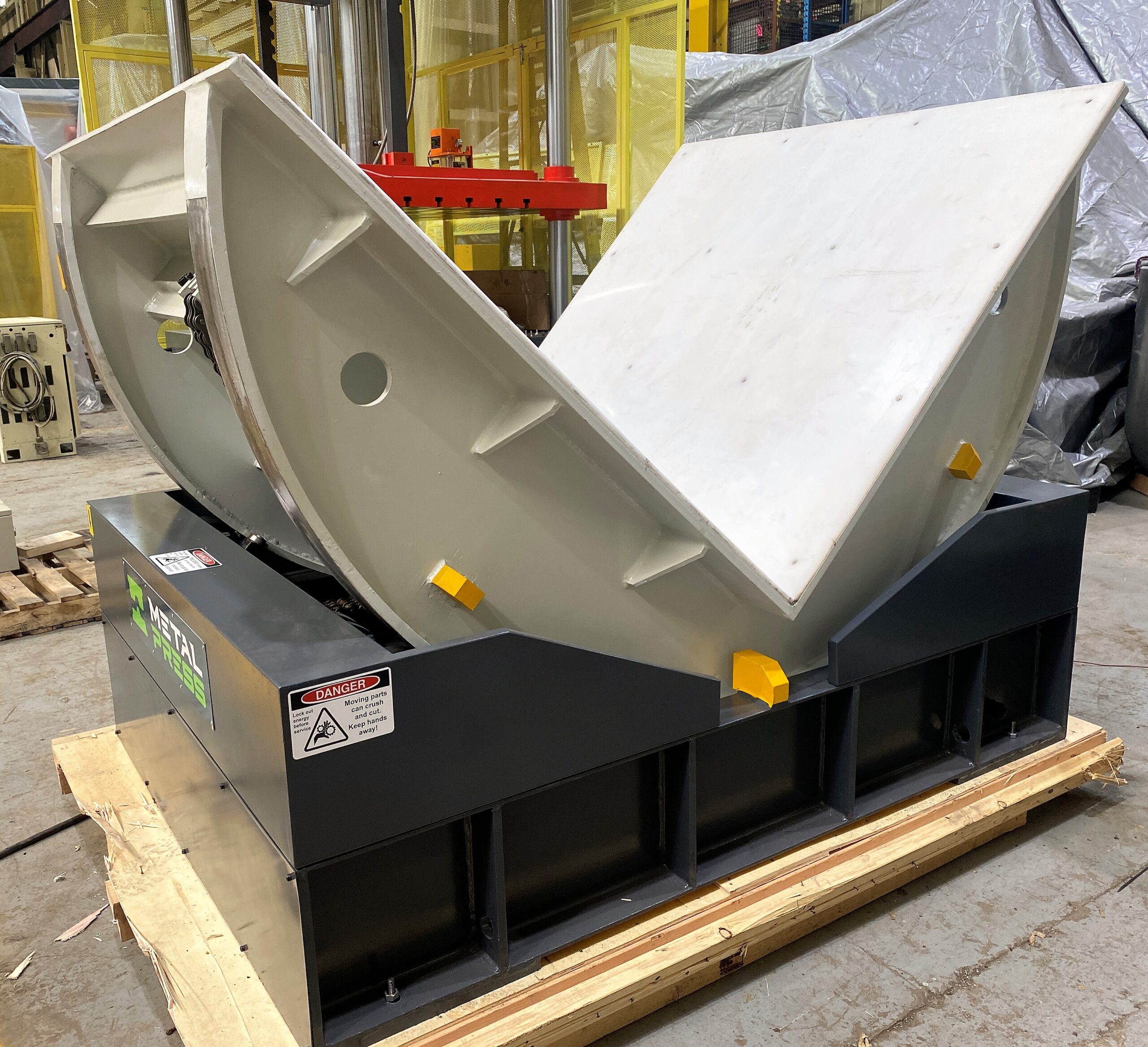

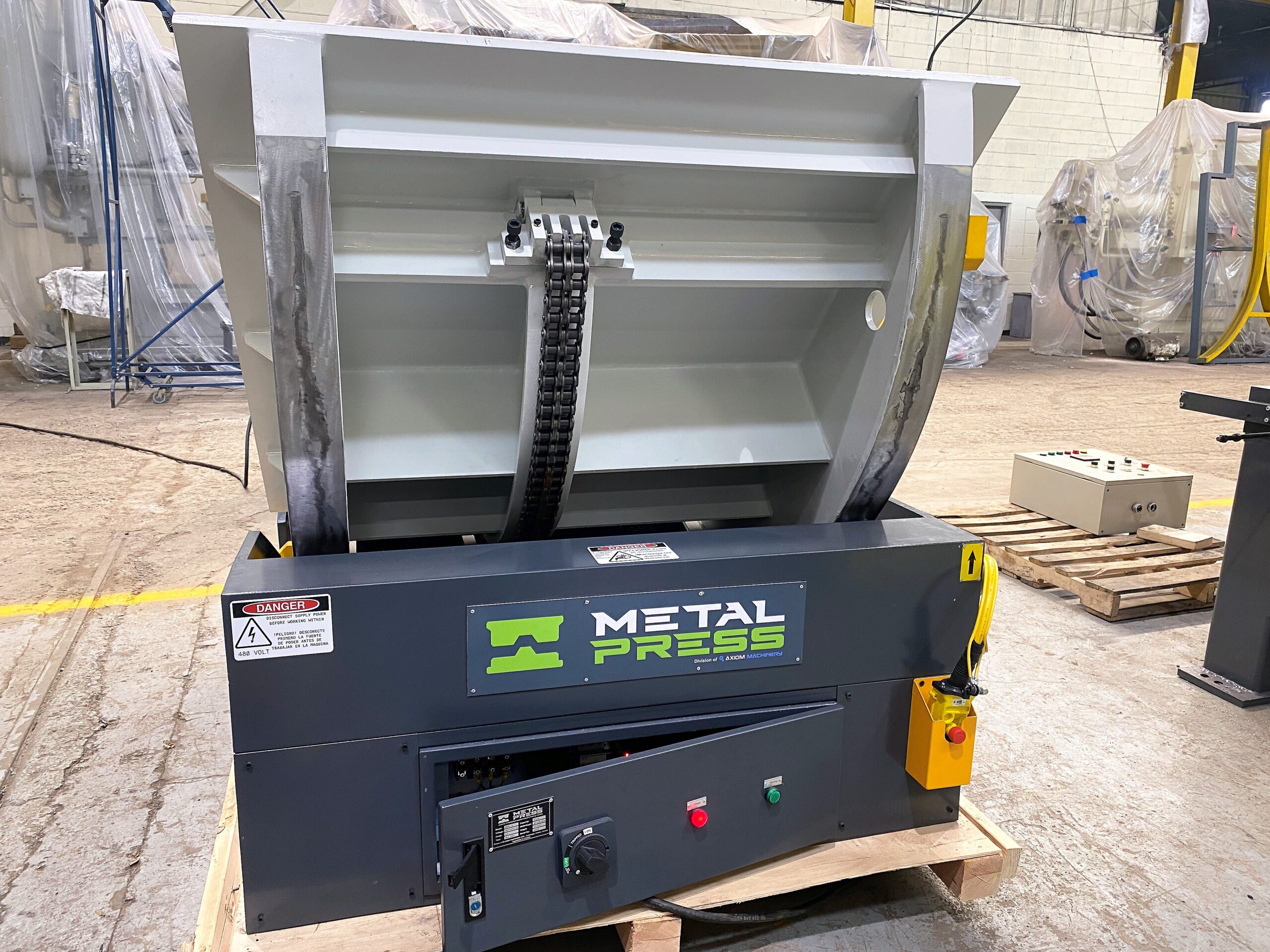

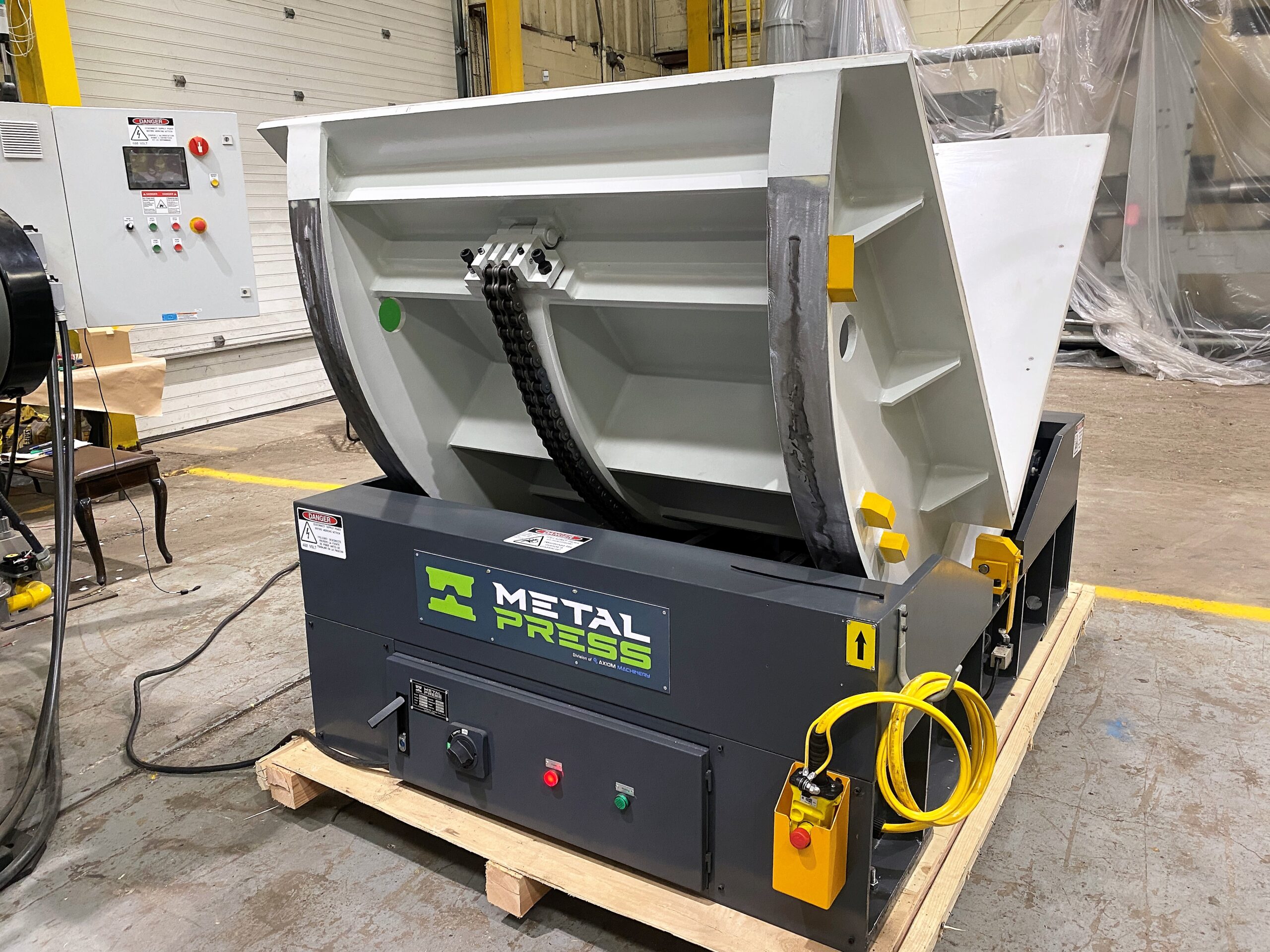

New MetalPress 5 Ton Hydraulic Die Mold Upender

This Die Upender model MDR-5 is manufactured by MetalPress Machinery.  This machine reference #4543 Die Upender is currently located at our Beta Die Casting Equipment warehouse and is ready for inspection and shipping.

Choose from the largest selection of top-name brands for used foundry Auxiliary Equipment at beta die casting. Our highly selected inventory offers the best selection of surplus foundry equipment right in one place. We have good quality Hydraulic Die Mold Upender in stock. Quote now!

What's Included
  • Heavy Duty Construction
  • Infinite Angle Control
  • Machine Safety Function
  • Remote Operator Control
Product Overview

New Hydraulic Die Mold Upender for Die Casting Machine

Features
  • Machine Manuals
  • PLC Control
  • Touch Screen
  • Machine Manuals
  • PLC Control
  • Touch Screen
  • Trim Press
