Used Techmire 22ZNT Multi-Slide Die Casting Machine #4774

Description

:
1996
:Multi Slide
:Techmire
:22ZNT
:2 x 2
:3700 lbs / 1700 kg
:4774
:Beta Warehouse Canada
:
SOLD
Request Quote
SpecificationsMetric show ImperialImperial  show Metric
Die Close
Number of Die Motions: 4 4
Die Size: 50.8 x 50.8 mm 2 x 2 inch
Ejector Stroke (Min-Max): 0 - 965.2 mm 0 - 38 inch
Injection
Plunger Diameter 31.8 mm 1.25 inch
Cylinder Diameter 50.8 mm 2 inch
Injection Capacity 184.3 gram 6.5 oz
Injection Stroke 50.8 mm 2 inch
Shot Weight 79.4 gram 2.8 oz
Metal Pressure 275.8 bar 4000 psi
Nozzle Heaters 3.4 kW 4.5 hp

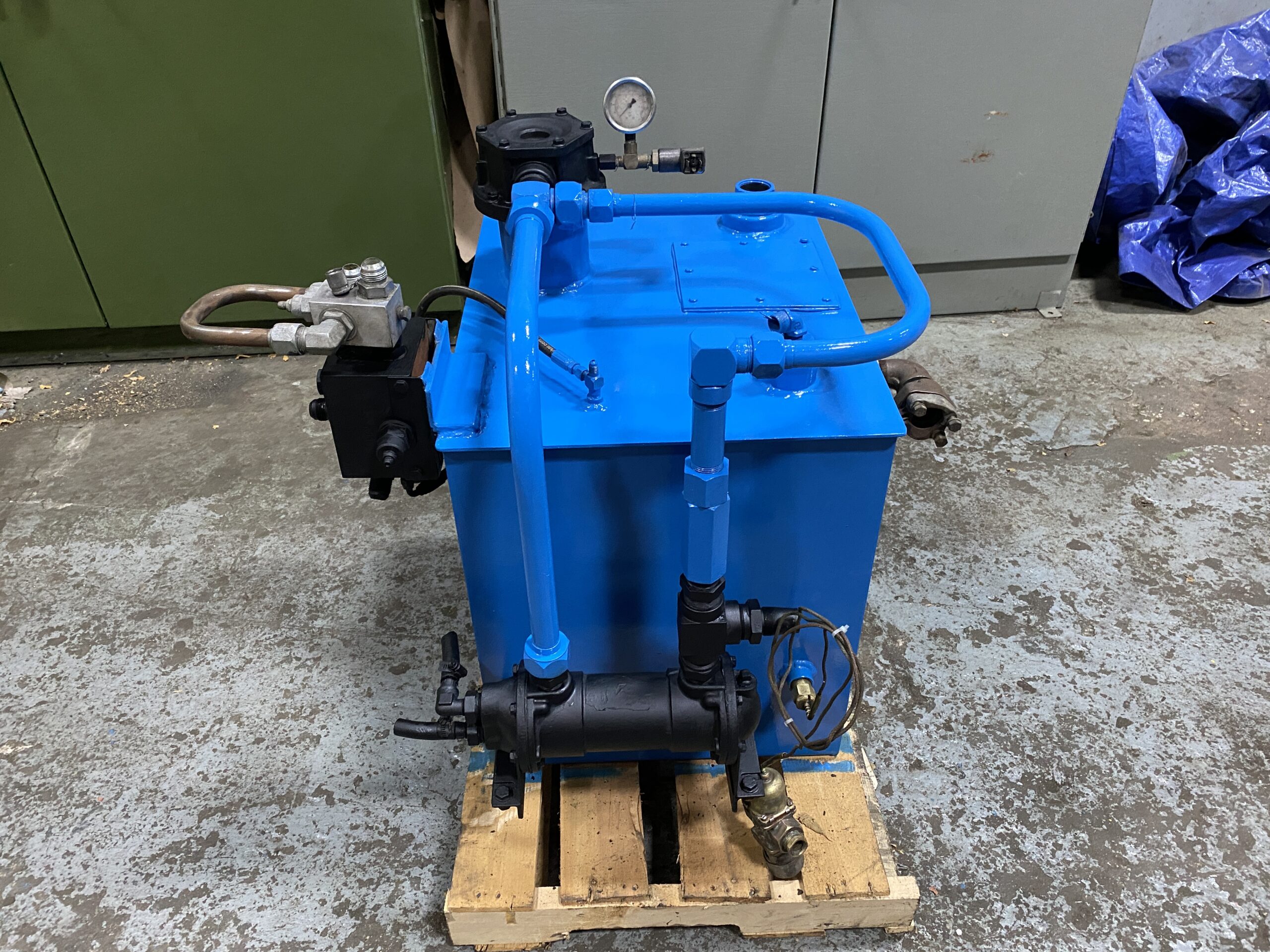

Hydraulics
Line Pressure 6.9 bar 100 psi
Tank Capacity 113.6 Litres 30 Gallons
General
Dry Cycle Speed (Max Load) 60 sec 60 sec
Machine Weight (approx) 1270.1 kg 2800 lbs

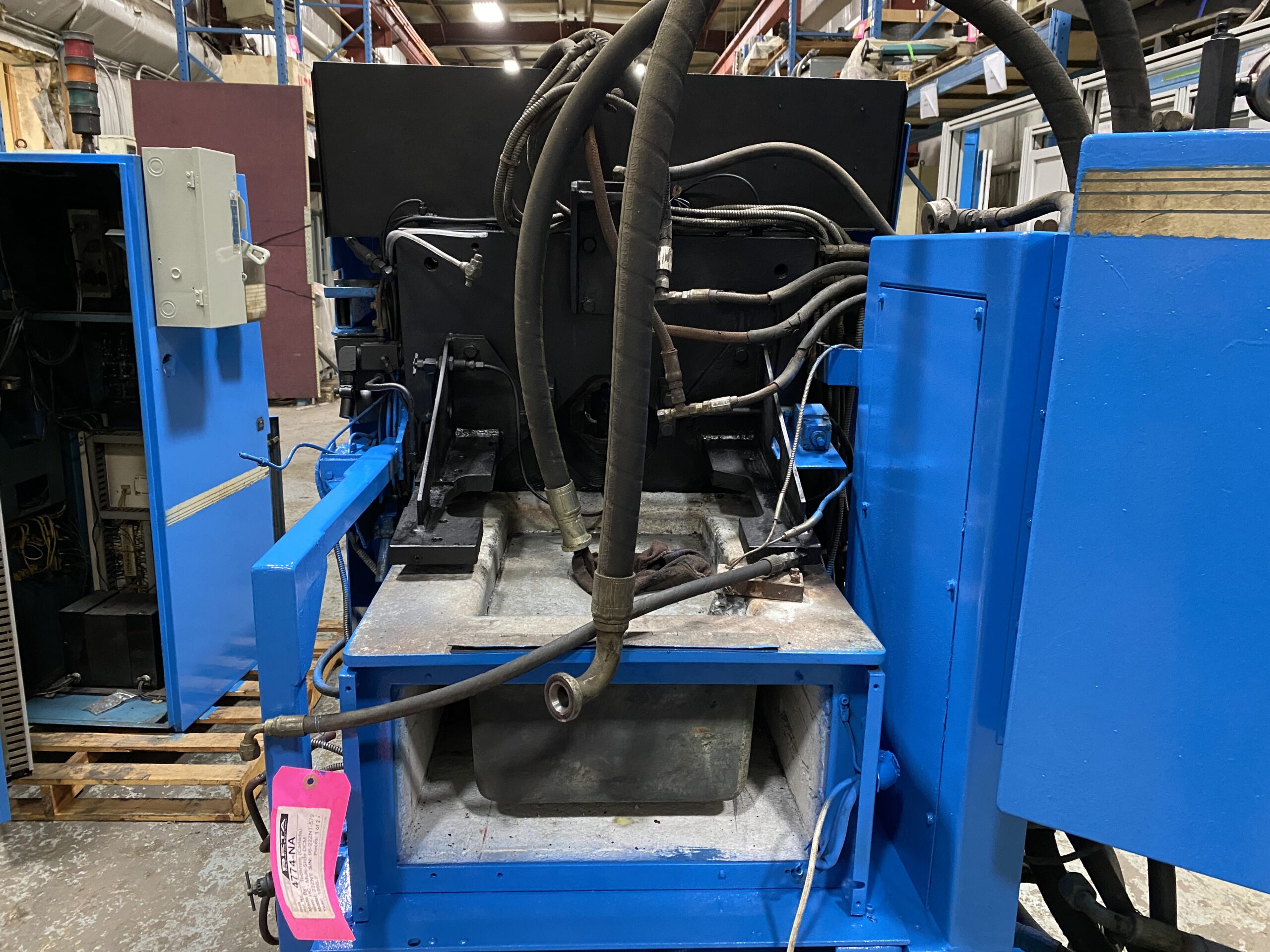

Furnace
Melting Pot Capacity 127.5 kg 281 lbs
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice

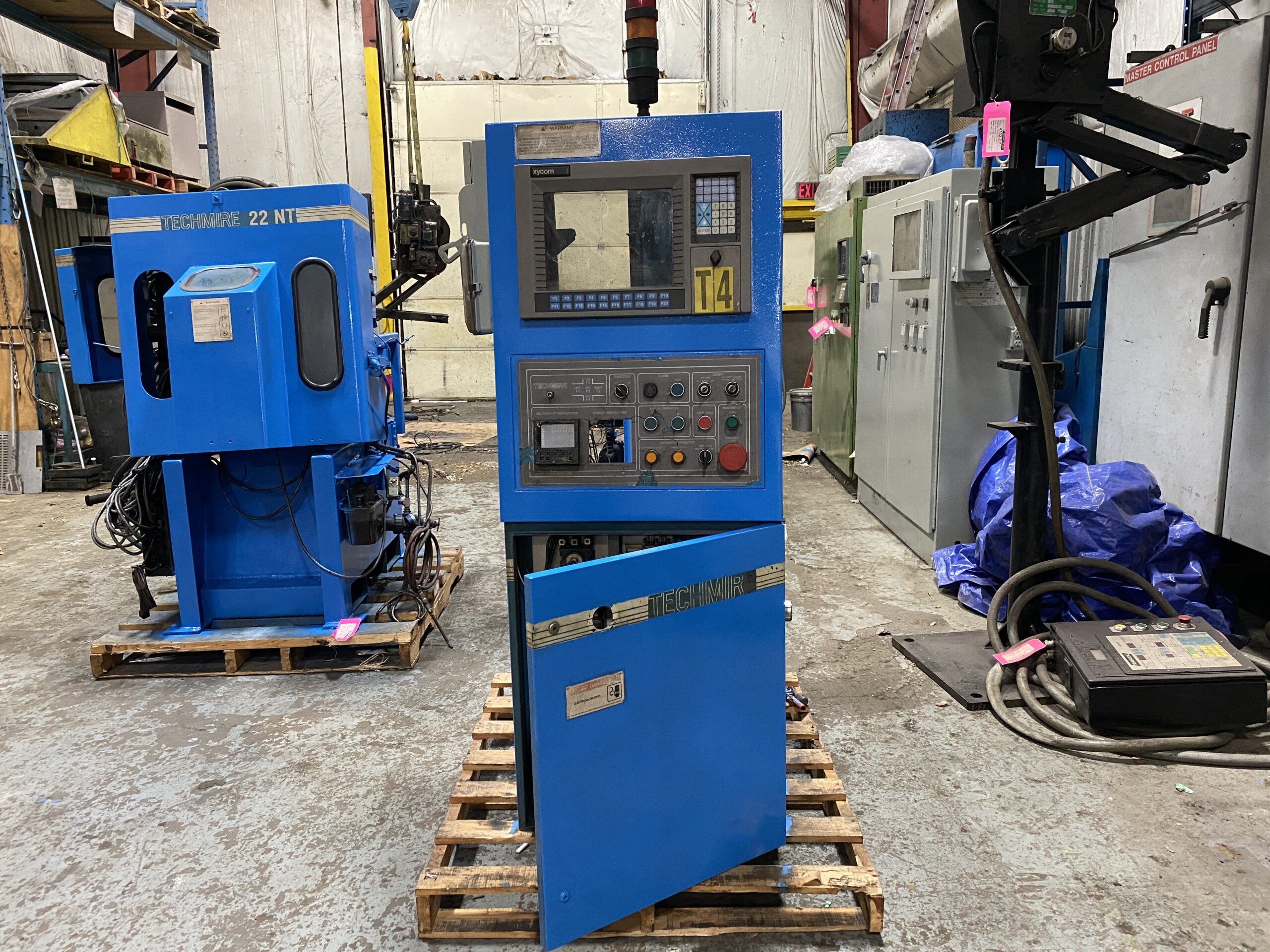

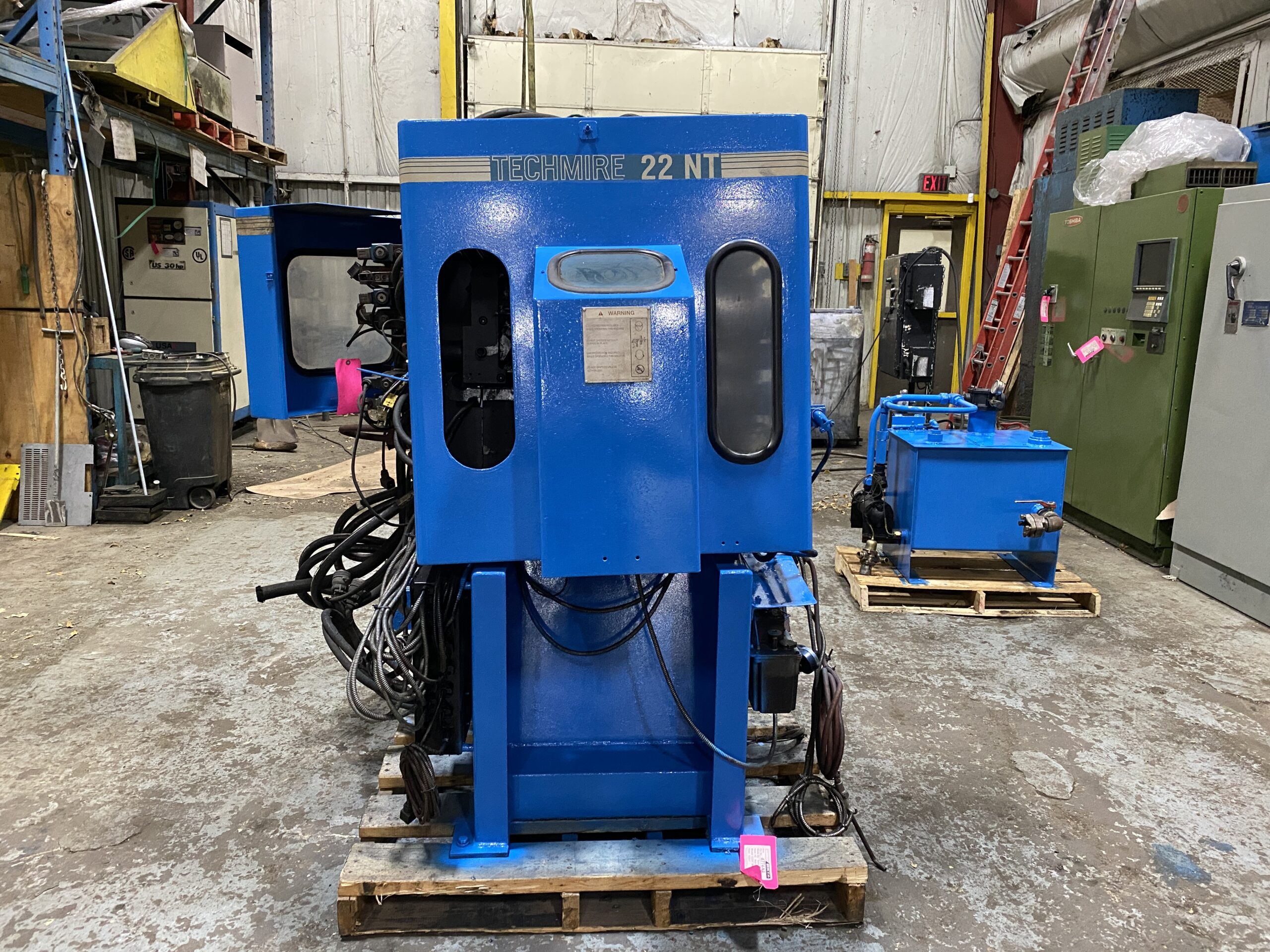

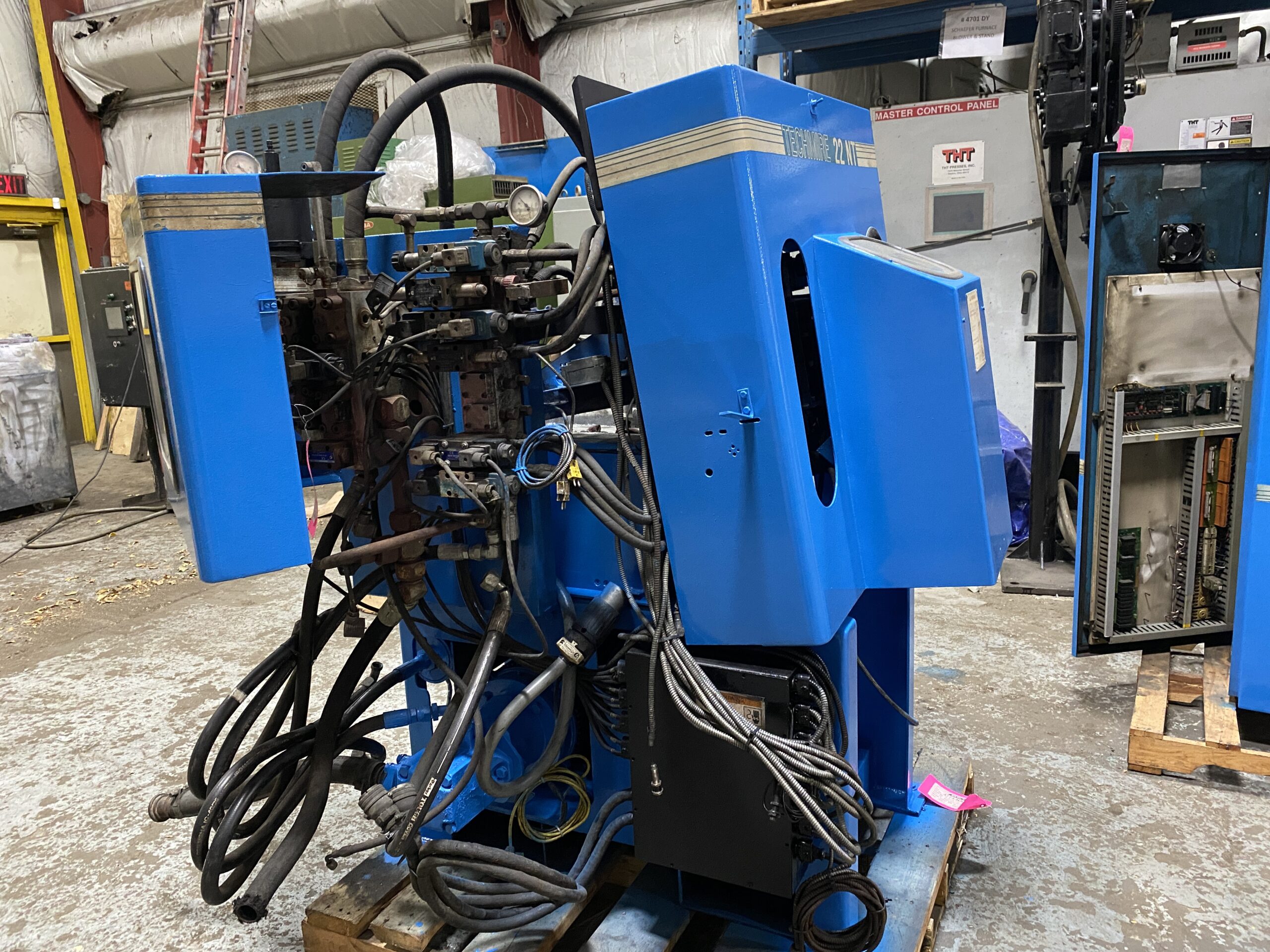

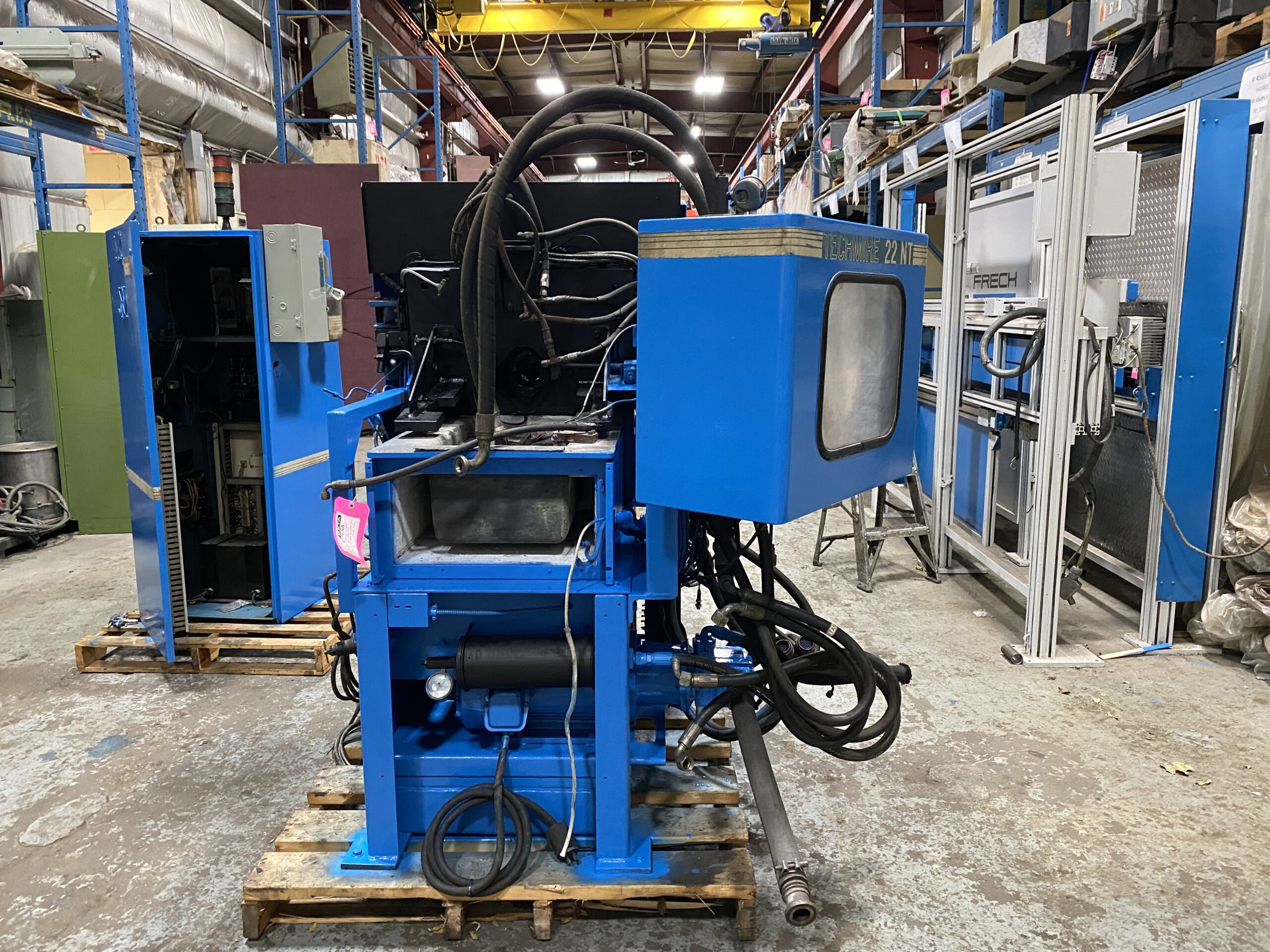

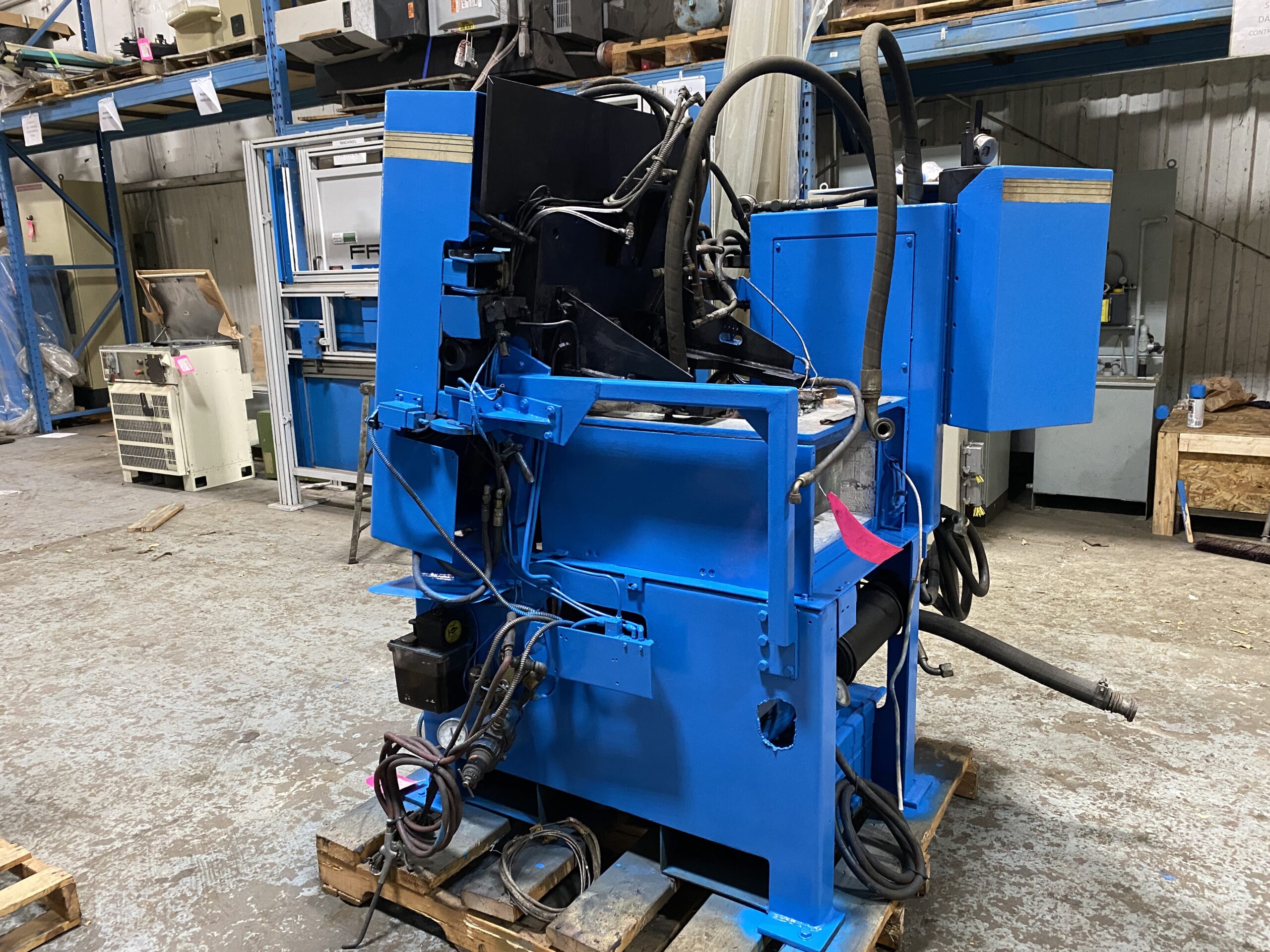

Used Techmire 22ZNT Multi-Slide Die Casting Machine

This Techmire Multi-Slide machine is manufactured by Techmire. This Techmire Multi-Slide reference #4774 is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping. Beta Die Casting sells used or secondhand Multi-Slide and Four Slide (4 slide) hot chamber die casting machines and equipment for the Zinc, Zamak, and Magnesium multi-slide die casting processes. Major manufacturers include Techmire, Dynacast, Titus, T-Sok Angelcast, Triad Speedcaster, and others.

Beta Die Casting Equipment is the largest buyer and reseller of used die casting machines and used die casting machinery in the world. Beta Die Casting Equipment also buys and sells industrial machines and automation equipment such as Die Cast Press, High Pressure Die Casting Machines, Cold Chamber Die Casting machines, Hot Chamber Die Casting Machines, Trim Press, Melting furnaces, Holding furnaces, Stack Melting Furnaces, Crucible Furnaces, Die Casting Ladles, Extractors, Multi-slide machines, Techmire Machines, Oil Temperature Controllers, Shot blast machines, Trimming Press, Die holders and other auxiliary equipment.

We sell all types of equipment such as cold chamber die casting and hot chamber die casting machines. We also offer aluminum die casting machinery, zinc high pressure die casting machinery, trim presses,  trimming presses, furnaces, automation, finishing, inspection, and machining equipment. We stock European die casting machines made by Buhler, Idra, Italpresse, Frech, Weingarten, Colosio, Upre, Agrati, and Triulzi. From Asia, we stock die casting machines such as Toshiba, UBE, Toyo, Zitai, BSK, KDK, Producer, and LK. From the United States, we stock die casting machines such as Prince, HPM, BuhlerPrince, Lester, B&T, THT, National, Birch, and Kux. We also offer Canadian machines such as Techmire, Dynacast, Triad, and Fisher cast.

Product Overview

Used Multi-slide Die Casting Machine
