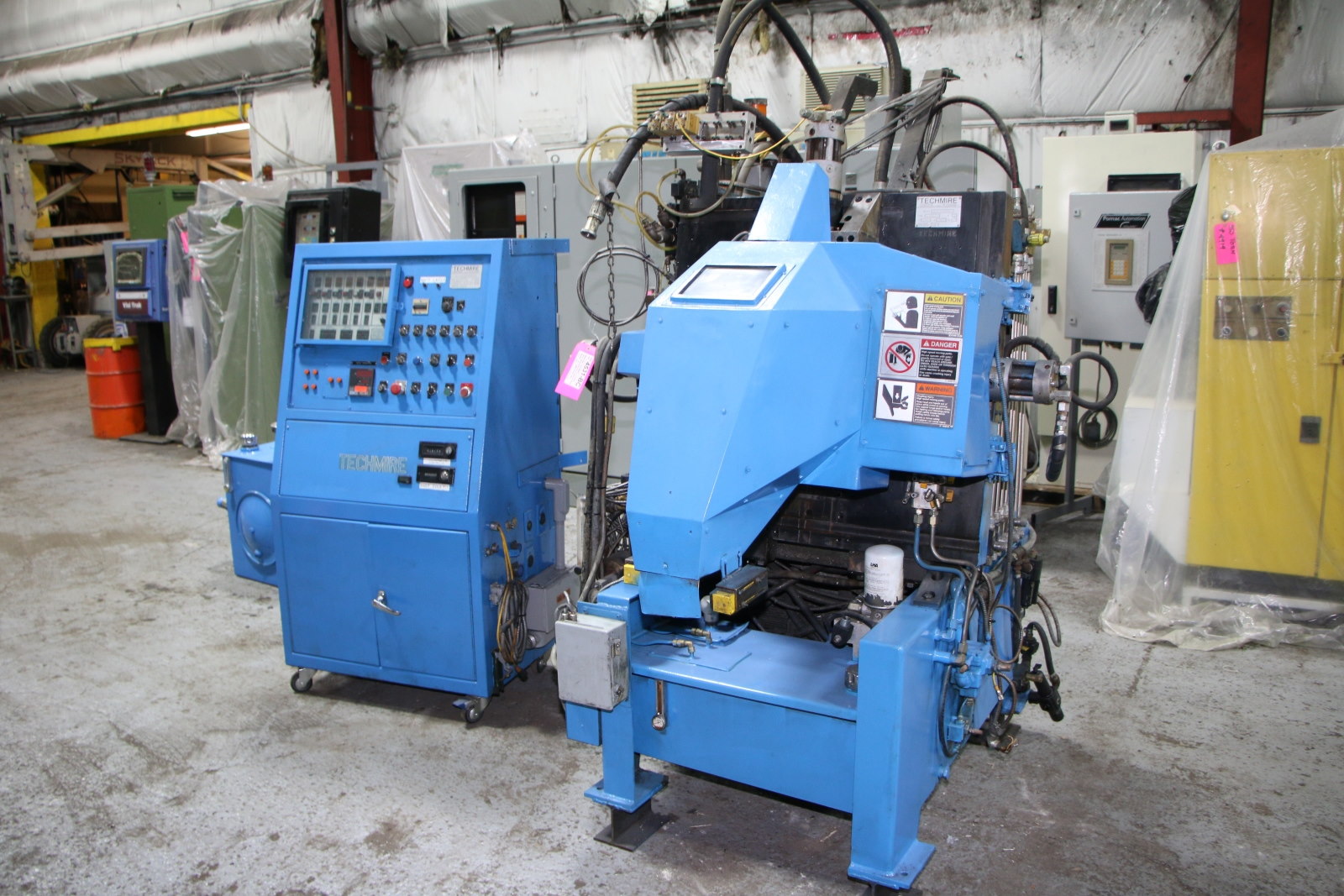

Used Techmire 44 (4 x 4) Multi-Slide Die Casting Machine #4531

Description

:Multi Slide
:Techmire
:44
:4 x 4
:4531
:Beta Warehouse Canada
:
SOLD
Request Quote
SpecificationsMetric show ImperialImperial  show Metric
Die Close
Die Size: 101.6 x 101.6 mm 4 x 4 inch
Ejector Stroke (Min-Max): 45.7 - 45.7 mm 1.8 - 1.8 inch
Die Opening (Max): 101.6 mm 4 inch
Injection
Plunger Diameter 40.6 mm 1.6 inch
Cylinder Diameter 83.82 mm 3.3 inch
Injection Capacity 510.3 gram 18 oz
Injection Stroke 60.452 mm 2.380 inch
Dry Shot Speed @ 1000 psi 1397 mm 55 inch
Shot Weight 255.1 gram 9 oz
Metal Pressure 242.6 bar 3519 psi
Hydraulics
Dry Cycle Speed 3600 /min 3600 /min
Motor Power 11.3 kW 15 hp
General
Machine Weight (approx) 2268 kg 5000 lbs
Size (L x W x H) 3.4 x 2.2 x 0 m 11.1 x 7.3 x 0 ft
Furnace
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice

Used Techmire 44 (4 x 4) Multi-Slide Die Casting Machine

This Techmire Multi-Slide machine  is manufactured by Techmire. This Techmire Multi-Slide reference #4531 is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping. Beta Die Casting sells used or secondhand Multi-Slide and Four Slide (4 slide) hot chamber die casting machines and equipment for the Zinc, Zamak, and Magnesium multi-slide die casting processes. Major manufacturers include Techmire, Dynacast, Titus, T-Sok Angelcast, Triad Speedcaster, and others.

Beta Die Casting Equipment is the largest buyer and reseller of used die casting machines and used die casting machinery in the world. Beta Die Casting Equipment also buys and sells industrial machines and automation equipment such as Die Cast Press, High Pressure Die Casting Machines, Cold Chamber Die Casting machines, Hot Chamber Die Casting Machines, Trim Press, Melting furnaces, Holding furnaces, Stack Melting Furnaces, Crucible Furnaces, Die Casting Ladles, Extractors, Multi-slide machines, Techmire Machines, Oil Temperature Controllers, Shot blast machines, Trimming Press, Die holders and other auxiliary equipment.

We sell all types of equipment such as cold chamber die casting and hot chamber die casting machines. We also offer aluminum die casting machinery, zinc high pressure die casting machinery, trim presses,  trimming presses, furnaces, automation, finishing, inspection, and machining equipment. We stock European die casting machines made by Buhler, Idra, Italpresse, Frech, Weingarten, Colosio, Upre, Agrati, and Triulzi. From Asia, we stock die casting machines such as Toshiba, UBE, Toyo, Zitai, BSK, KDK, Producer, and LK. From the United States, we stock die casting machines such as Prince, HPM, BuhlerPrince, Lester, B&T, THT, National, Birch, and Kux. We also offer Canadian machines such as Techmire, Dynacast, Triad, and Fisher cast.
