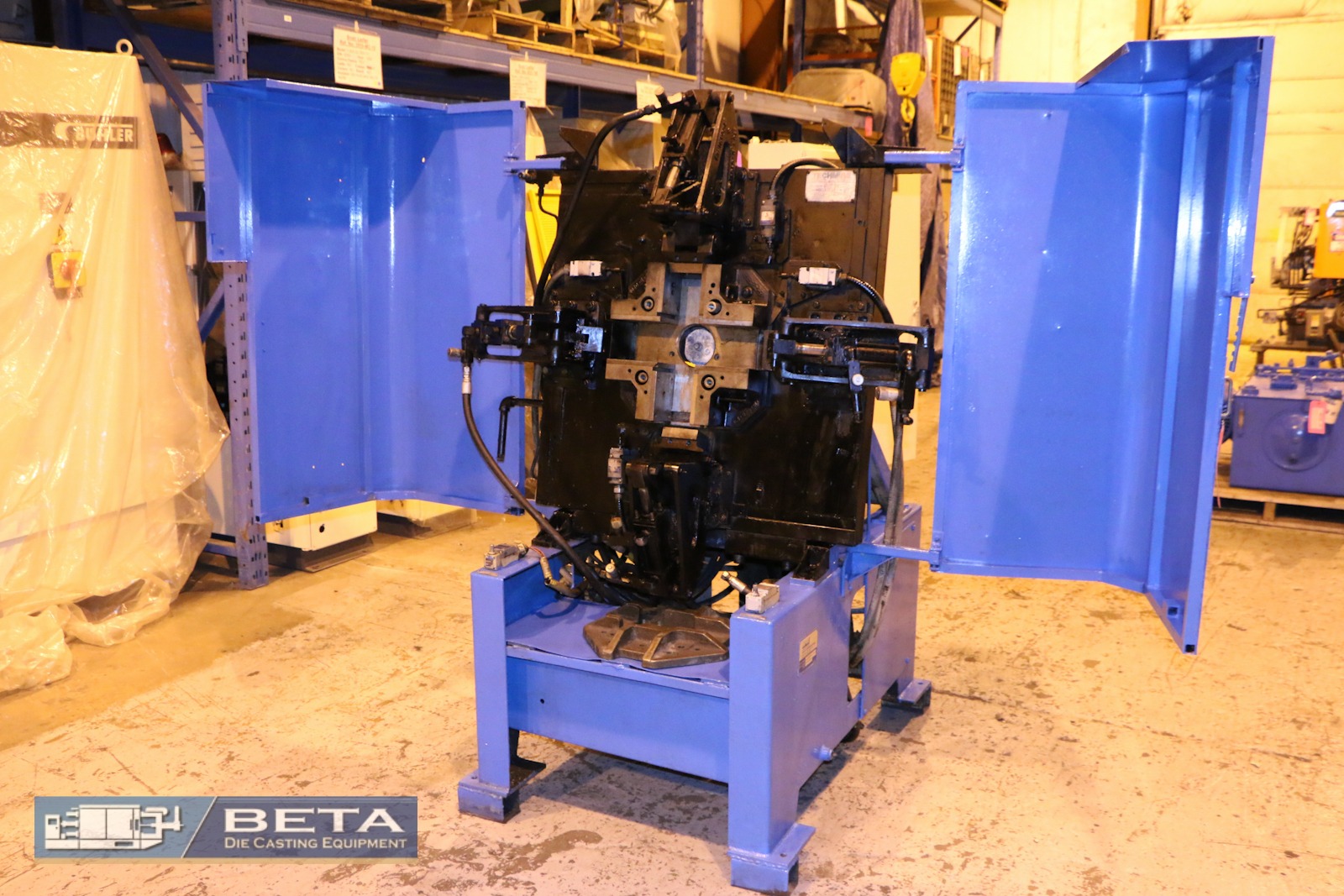

Used Techmire 44N (4 x 4) Multi-Slide Die Casting Machine #4030

Description

:Multi Slide
:Techmire
:44N
:4 x 4
:4030
:Beta Warehouse Canada
:
AVAILABLE
Request Quote
SpecificationsMetric show ImperialImperial  show Metric
Die Close
Die Size: 101.6 x 101.6 mm 4 x 4 inch
Stroke: 0 - 50.8 mm 0 - 2 inch
Die Opening (Max): 101.6 mm 4 inch
Injection
Plunger Diameter 33 mm 1.3 inch
Injection Capacity 198.4 gram 7 oz
Dry Shot Speed @ 1000 psi 914.4 mm 36 inch
Metal Pressure 103.4 bar 1500 psi
Hydraulics
Dry Cycle Speed 2000 /min 2000 /min
Motor Power 11.3 kW 15 hp
General
Machine Weight (approx) 1723.7 kg 3800 lbs
Furnace
CONTROL
  • 1175 RPM

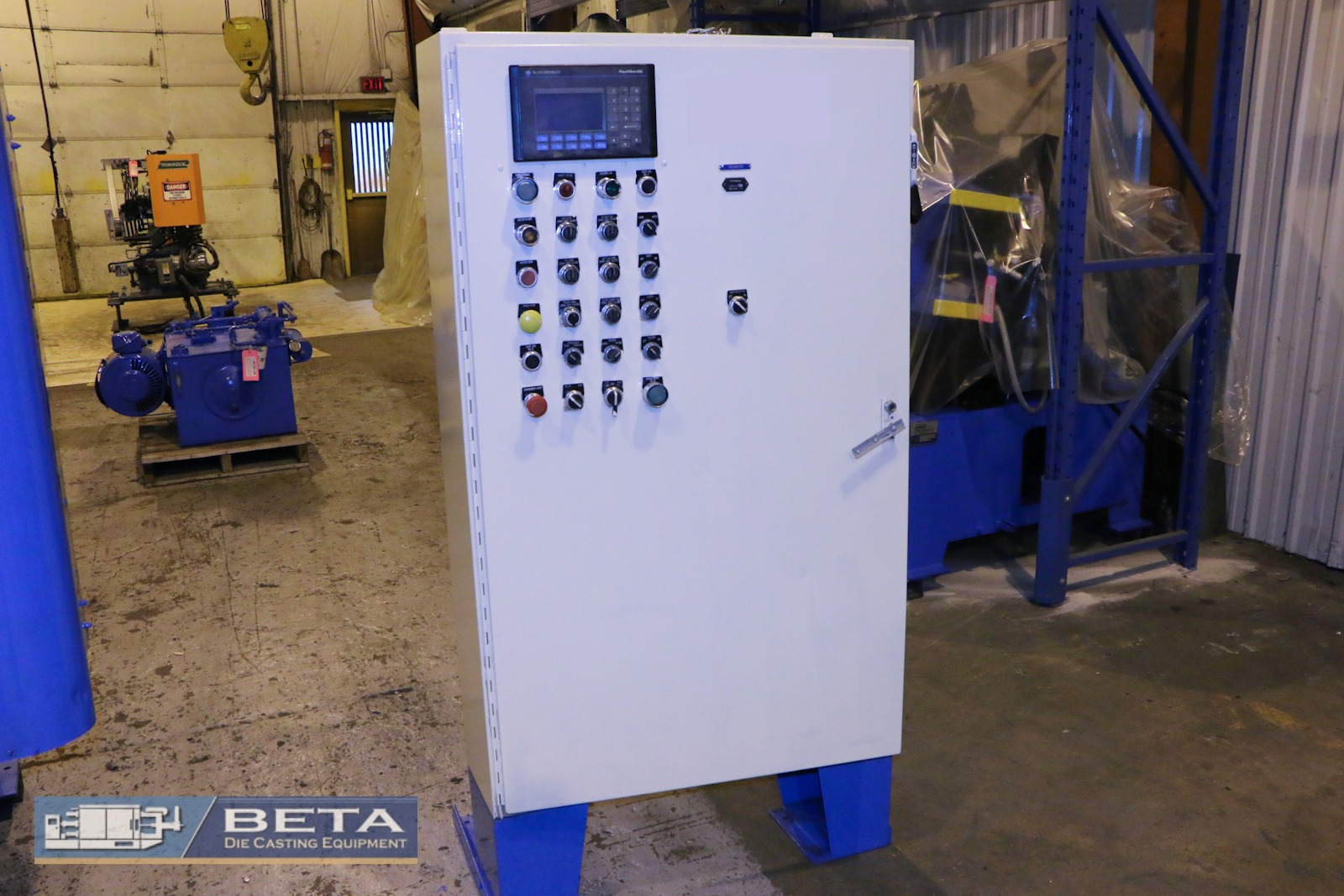

  • Control Panel
  • Tanks
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice

This Techmire Multi-Slide machine  is manufactured by Techmire

This Techmire Multi-Slide reference #4030 is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping.

Beta Die Casting Equipment is the largest buyer and reseller of used die casting machines and used die casting machinery in the world. Beta Die Casting Equipment also buys and sells industrial machines and automation equipment such as Die Cast Press, High Pressure Die Casting Machines, Cold Chamber Die Casting machines, Hot Chamber Die Casting Machines, Trim Press, Melting furnaces, Holding furnaces, Stack Melting Furnaces, Crucible Furnaces, Die Casting Ladles, Extractors, Multi-slide machines, Techmire Machines, Oil Temperature Controllers, Shot blast machines, Trimming Press, Die holders and other auxiliary equipment.

We sell all types of equipment such as cold chamber die casting and hot chamber die casting machines. We also offer aluminum die casting machinery, zinc high pressure die casting machinery, trim presses,  trimming presses, furnaces, automation, finishing, inspection and machining equipment. We stock European die casting machines made by Buhler, Idra, Italpresse, Frech, Weingarten, Colosio, Upre, Agrati, and Triulzi. From Asia, we stock die casting machines such as Toshiba, UBE, Toyo, Zitai, BSK, KDK, Producer, and LK. From the United States we stock die casting machines such as Prince, HPM, BuhlerPrince, Lester, B&T, THT, National, Birch, Kux. We also offer Canadian machines such as Techmire, Dynacast, Triad and Fishercast.

Product Overview

Used Multi-slide Die Casting Machine
