Used Techmire 66 (6 x 6) Multi-Slide Die Casting Machine #4492

Description

:Multi Slide
:Techmire
:66H
:6 x 6
:5,000 lbs
:4492
:Beta Warehouse Canada
:
SOLD
Request Quote
SpecificationsMetric show ImperialImperial  show Metric
Die Close
Number of Die Motions: 2 2
Die Size: 160 x 160 mm 6.3 x 6.3 inch
Stroke: 0 - 81.3 mm 0 - 3.2 inch
Ejector Stroke (Min-Max): 0 - 61 mm 0 - 2.4 inch
Die Opening (Max): 160 mm 6.3 inch
Injection
Plunger Diameter 40.6 mm 1.6 inch
Cylinder Diameter 83.82 mm 3.3 inch
Injection Capacity 481.9 gram 17 oz
Injection Stroke 59.944 mm 2.360 inch
Dry Shot Speed @ 1000 psi 1397 mm 55 inch
Shot Weight 255.1 gram 9 oz
Metal Pressure 275.8 bar 4000 psi
Nozzle Heaters 3.2 kW 4.2 hp
Hydraulics
Line Pressure 93.1 bar 1350 psi
Tank Capacity 113.6 Litres 30 Gallons
Dry Cycle Speed 2700 /min 2700 /min
Motor Power 11.3 kW 15 hp
General
Machine Weight (approx) 2268 kg 5000 lbs
Size (L x W x H) 3.4 x 2.2 x 0 m 11.1 x 7.3 x 0 ft
Furnace
AVAILABILITY AND TERMS
  • Machine is ready for inspection and/or shipping
  • Technical data without obligation – subject to prior sale
  • Specifications and location are subject to change without notice

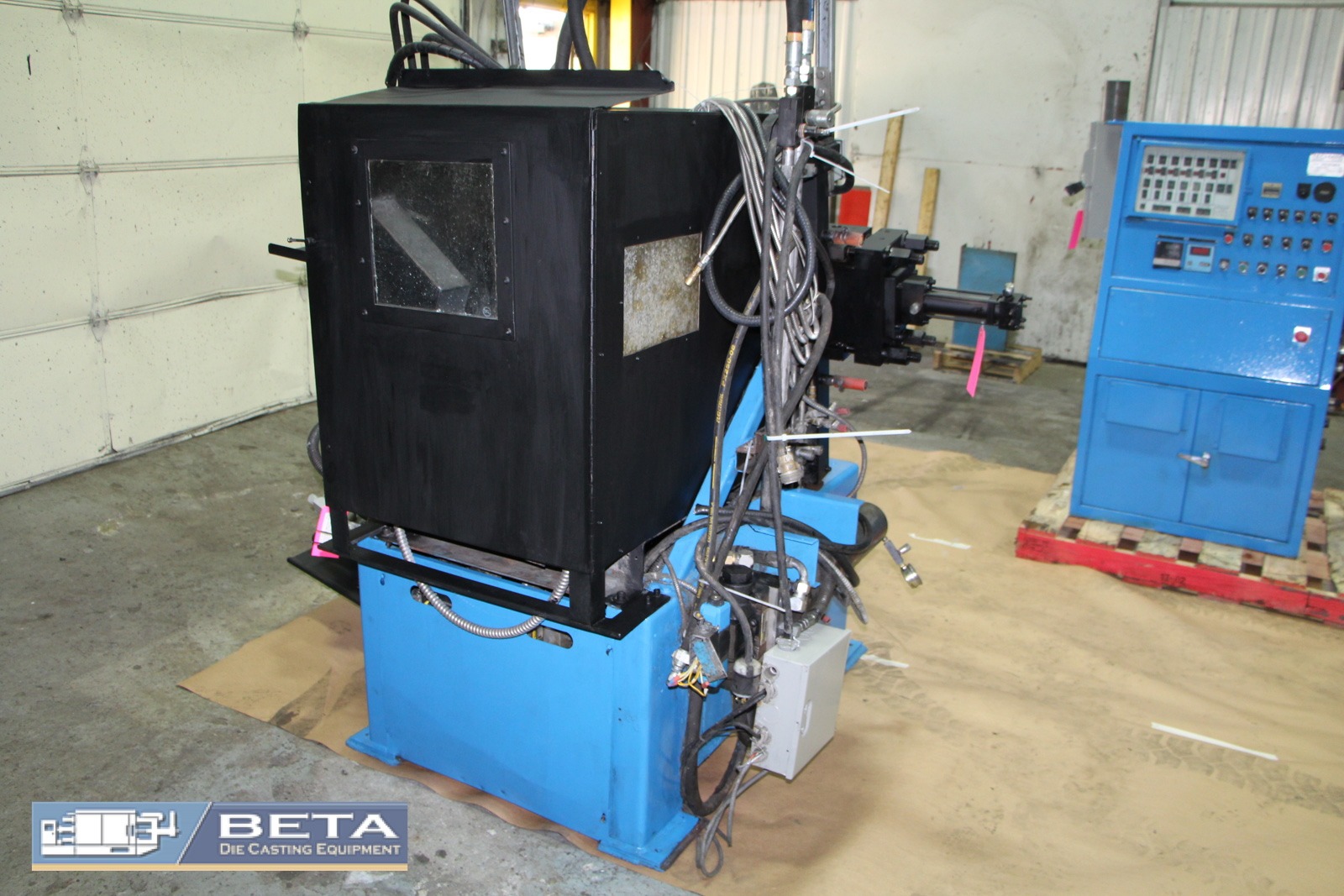

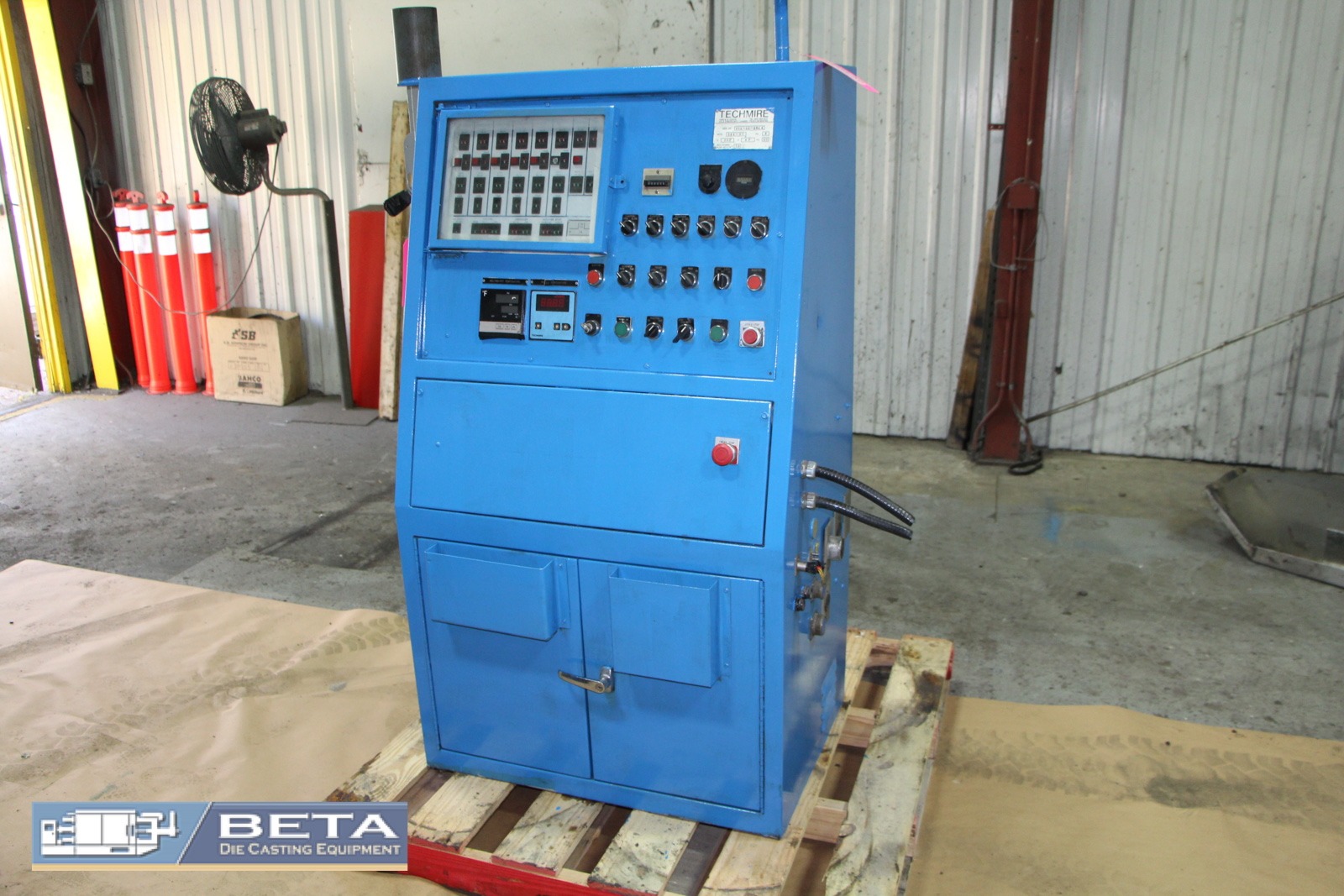

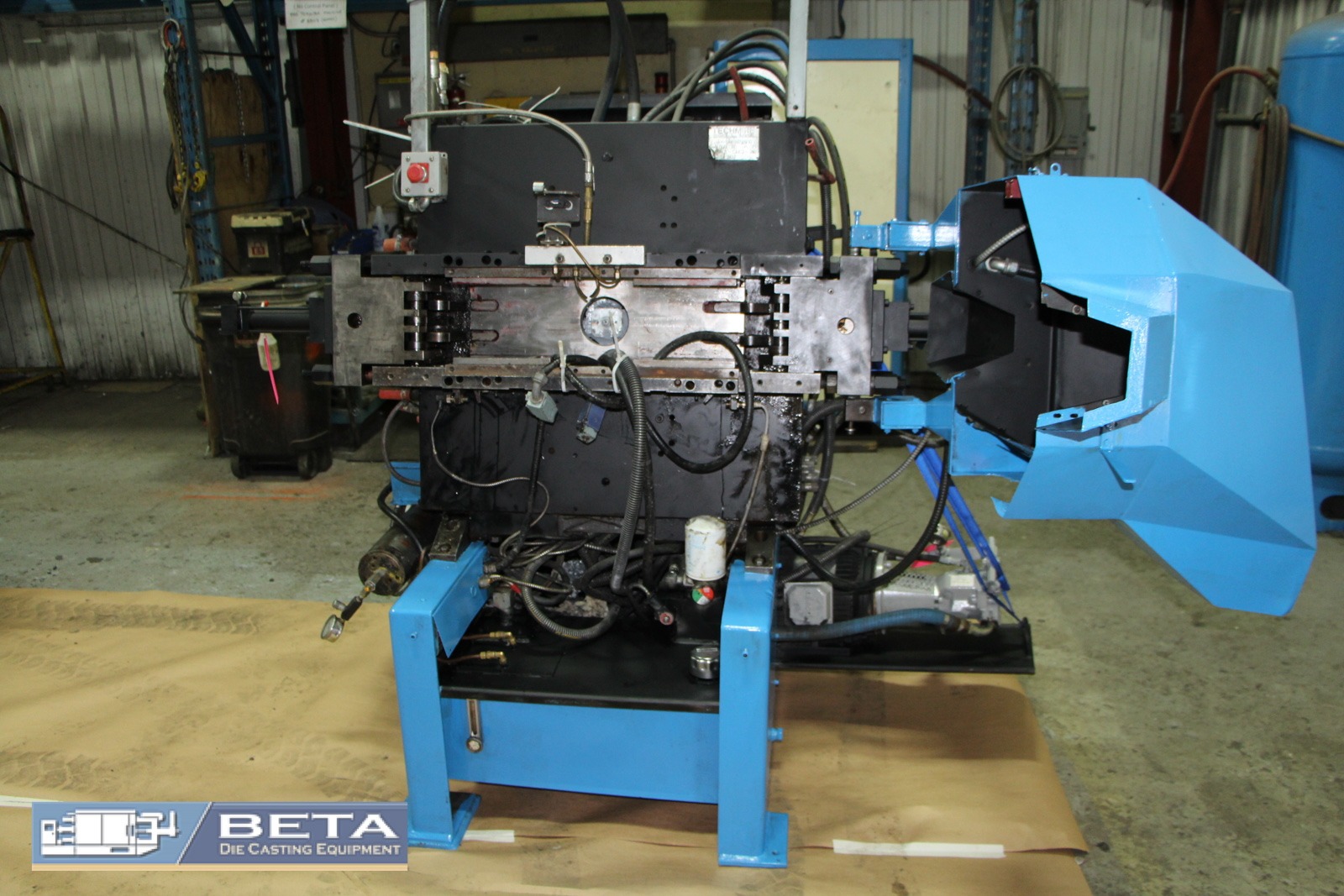

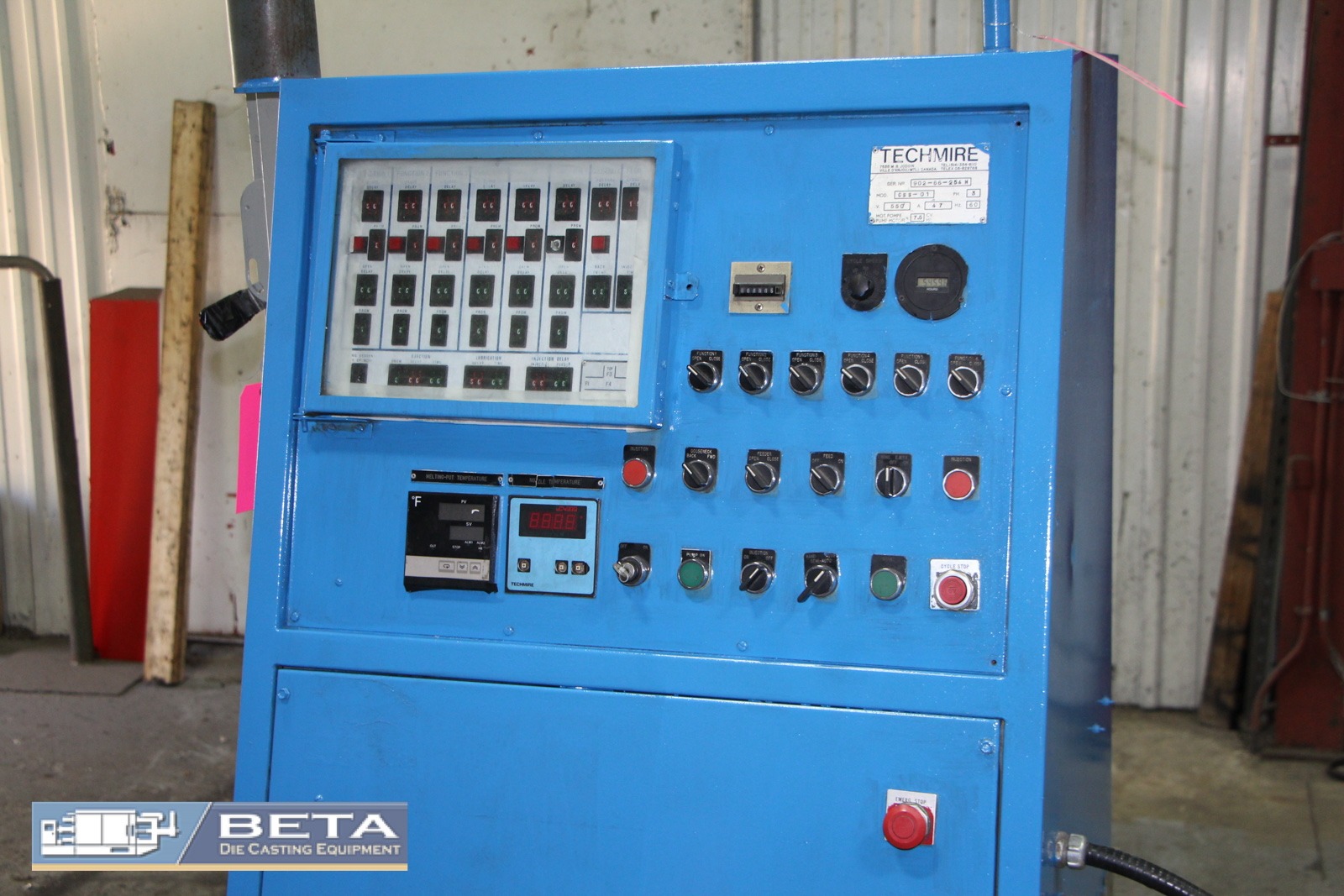

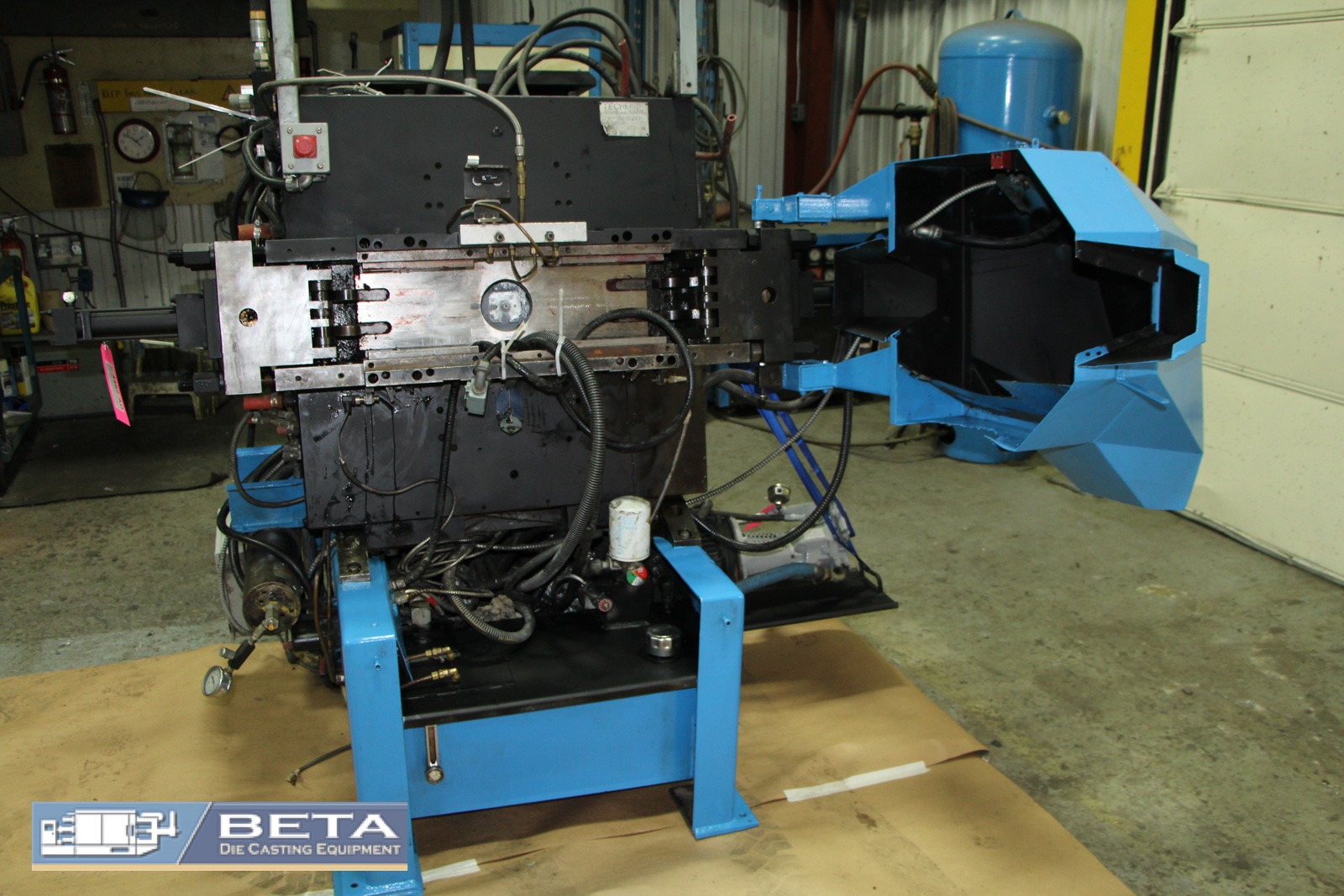

Used Techmire 66 (6 x 6) Multi-Slide Die Casting Machine

This Techmire Multi-Slide machine is manufactured by Techmire. This Techmire Multi-Slide reference #4492 is currently located at our Canada Beta Die Casting Equipment warehouse and is ready for inspection and shipping. Beta Die Casting sells used or secondhand Multi-Slide and Four Slide (4 slide) hot chamber die casting machines and equipment for the Zinc, Zamak, and Magnesium multi-slide die casting processes. Major manufacturers include Techmire, Dynacast, Titus, T-Sok Angelcast, Triad Speedcaster, and others.

Beta Die Casting Equipment is the largest buyer and reseller of used die casting machines and used die casting machinery in the world. Beta Die Casting Equipment also buys and sells industrial machines and automation equipment such as Die Cast Press, High Pressure Die Casting Machines, Cold Chamber Die Casting machines, Hot Chamber Die Casting Machines, Trim Press, Melting furnaces, Holding furnaces, Stack Melting Furnaces, Crucible Furnaces, Die Casting Ladles, Extractors, Multi-slide machines, Techmire Machines, Oil Temperature Controllers, Shot blast machines, Trimming Press, Die holders and other auxiliary equipment.

We sell all types of equipment such as cold chamber die casting and hot chamber die casting machines. We also offer aluminum die casting machinery, zinc high pressure die casting machinery, trim presses,  trimming presses, furnaces, automation, finishing, inspection, and machining equipment. We stock European die casting machines made by Buhler, Idra, Italpresse, Frech, Weingarten, Colosio, Upre, Agrati, and Triulzi. From Asia, we stock die casting machines such as Toshiba, UBE, Toyo, Zitai, BSK, KDK, Producer, and LK. From the United States, we stock die casting machines such as Prince, HPM, BuhlerPrince, Lester, B&T, THT, National, Birch, and Kux. We also offer Canadian machines such as Techmire, Dynacast, Triad, and Fisher cast.
